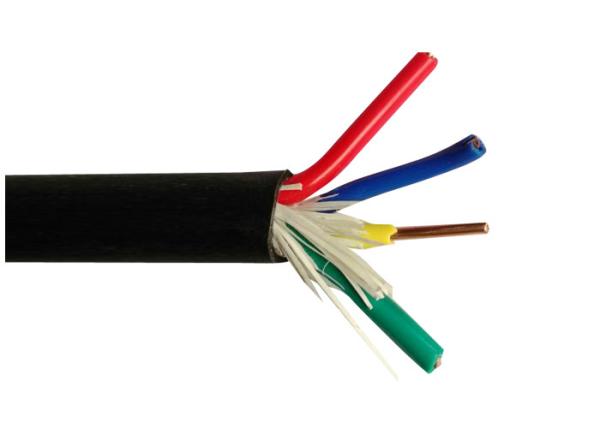

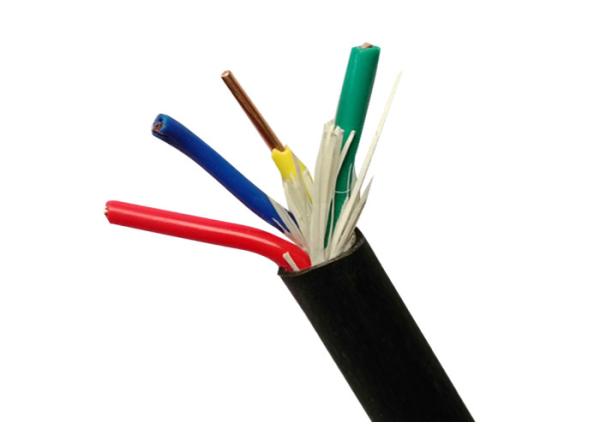

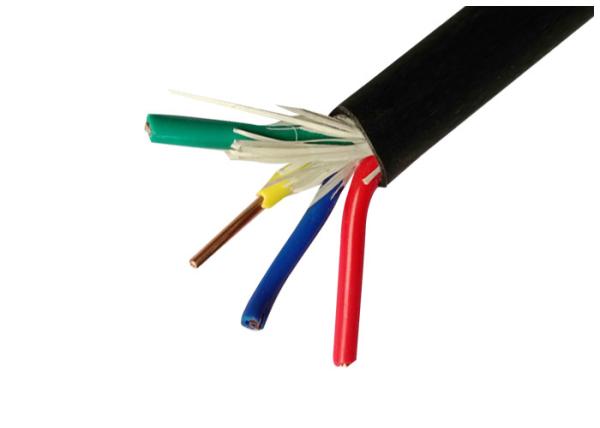

Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
Specifications
Brand Name :
SHANCABLE
Model Number :
BVV
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Standard :
IEC 60227
Rated Voltage :
450/750V
Warranty :
2 years
Conductor Temp :
70 degree
Sheath :
PVC
Conductor :
Pure Copper
Color :
Black
Corporation :
shenghua group
Brand :
Sh Cable
Description

Four cores Electrical Cable Wire with CLASS 1 Copper Conductor 450 / 750V Rated Voltage WIth PVC Sheath

Description:

1. Standard IEC60227, BS6004,VDE0281

2. solid bare coppe

3. 300/300v 300/500v 450/750v

4.PVC sheathed , color available

5, PVC temperature: -20 °C to +70 °C , also can be 90 °C and 105 °C PVC


Applications

The cable is suitble to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of electric enquipment, instrument, eletron equipment, automatization device etc.

BVV 300/500V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
1x0.75 1x1/0.97 4.3 23
1x1.0 1x1/1.13 4.5 26.4
1x1.5(A) 1x1/1.38 4.9 34.6
1x1.5(B) 1x7/0.52 5.2 36.5
1X2.5(A) 1x1/0.85 5.8 46.4
1X4(A) 1x1/2.25 6.4 65.9
1X4(B) 1x7/0.85 6.8 73.7
1X6(A) 1x1/2.76 7.0 91.6
1X10 1x7/1.35 8.8 152.0
2X1.5(A) 2x1/1.38 10.0 109
2X1.5(B) 2x7/0.52 10.5 123
2X2.5(A) 2x1/1.78 11.5 157
2X2.5(B) 2x7/0.68 12.0 172
2X4(A) 2x1/2.25 12.5 205
2X4(B) 2x7/0.85 13.0 222
2X6(A) 2x1/2.76 13.5 265
2X6(B) 2x7/1.04 14.0 286
2X10 2x7/1.35 17.5 471
3X1.5(A) 3x1/1.38 10.5 136
3X1.5(B) 3x7/0.52 11.0 146
3X2.5(A) 3x1/1.78 12.0 190

BVV 300/500V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
3x2.5(B) 3X7/0.68 12.5 207
3X4(A) 3X1/2.25 13.0 252
3X4(B) 3X7/0.85 13.5 272
3X6(A) 3X1/2.76 14.5 344
3X10 3X7/1.35 19.0 574
4X1.5(A) 4X1/1.38 11.5 164
4X1.5(B) 4X7/0.52 12.0 174
4X2.5(B) 4X7/0.68 13.5 252
4X4(A) 4X1/2.25 14.5 321
4X4(B) 4X7/0.85 15.0 346
4X6(A) 4X1/1.04 16.0 470
4X6(B) 4X7/2.76 17.0 439
5X1.5(A) 5X1/1.38 12.0 192
5X1.5(B) 5X7/0.52 12.5 205
5X2.5(A) 5X1/1.78 14.0 272
5X2.5(B) 5X7/0.68 14.5 292
5X4(A) 5X1/2.25 16.0 397
5X4(B) 5X7/0.85 17.0 418
5X6(A) 5X1/2.76 17.5 518
5X6(B) 5X7/1.04 18.5 550

Packing

a) Packing lengths: 100m/roll, 200m/roll, 305m/roll or up to your requirments
b) Inner packing: wooden reel,coil, plastic reel
c) Outer packing: carton box
d) Other packing available according to customer

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath
