Low / Medium Voltage Steel Wire Armoured Power Cable 1 - 5 Cores Underground Cable
Low / Medium Voltage Steel Wire Armoured Power Cable 1 - 5 Cores Underground Cable
Low / Medium Voltage Steel Wire Armoured Power Cable 1 - 5 Cores Underground Cable
Low / Medium Voltage Steel Wire Armoured Power Cable 1 - 5 Cores Underground Cable
Low / Medium Voltage Steel Wire Armoured Power Cable 1 - 5 Cores Underground Cable
Low / Medium Voltage Steel Wire Armoured Power Cable 1 - 5 Cores Underground Cable
Specifications
Brand Name :
SHANCABLE
Model Number :
YJV232 LV/MV
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Product name :
Underground Cable
Voltage :
Low and Medium Voltage
Conductor :
Copper
Insulation :
XLPE
Armor :
Steel wire
Sheath Material :
PVC
Standards :
IEC / BS / IS / VDE
Warranty :
2 years
Corporation :
shenghua group
Brand :
Sh Cable
Description

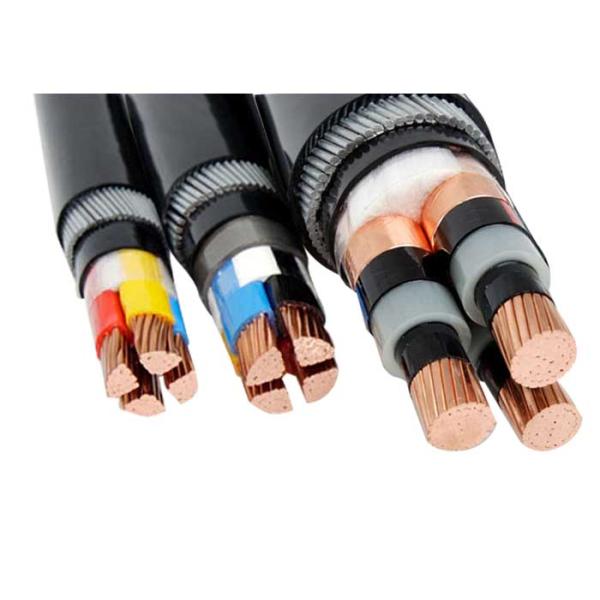

Low and Medium Voltage Steel Wire Armoured Power Cable XLPE Insulated Copper Conductor 1 to 5 cores Underground Cable


Table of the voltage, cores and cross-section

Item Category A ,B 3.6/6kV 6/10kV 8.7/15kV 12/20kV 18/30kV 21/35kV
Category A ,B 6/6kV 8.7/10kV 12/15kV 18/20kV - 26/35kV
Single core mm2 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
Three core mm2 25-400 25-400 35-400 50-400 50-400 50-400


The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.

Applications

These power armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, where mechanical damages to the cable may occur.


Constructions

Conductor Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228
Conductor Screen Semi-conductor (MV only)
Insulation XLPE(Cross-linked polyethylene)
Insulation Screen Semi-conductor (MV only)
Metalic Shield Copper Tape Screen or Copper wire & copper tape Shield (MV must, LV optional)
Filler Fillers strip
Wrapping Tape Non woven wrapping tape or lsoh wrapping tape
Inner Covering Extruded PVC, or LSOH (MV only)
Armour Steel Tape Armour, Steel Wire or Aluminium Wire Armor optional
Overall Sheath PVC, FR-PVC, PE or LSOH


Technical data

- Power cable according to DIN VDE 0276 part 603, HD 620, IEC 60502, BS 6622
- Temperature range max. to +90 °C
- Temperature during installation from 0 °C to +70 °C
- Short circuit temperature +250 °C (up to 5 seconds)
- Nominal voltage Uo/U 3,6/6 kV, 6/10 kV, 6,35/11 kV (dle BS), 18/30 kV, 19/33 kV (dle BS)
- Operating voltages 3,6/6 kV = max. 7,2 kV 6/10 kV = max. 12 kV 18/30 kV = max. 36 kV
- Test voltage a.c. 3,6/6 kV = 11 kV up to 5 min. 6/10 kV = 21 kV up to 5 min. 18/30 kV = 63 kV up to 5 min.
- Minimum bending radius approx. 15 cable diameter

Test voltage 6 / 10 kV [kV] 21 / 5 min.
12 / 20 kV [kV] 42 / 5 min.
18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2


PACKING AND SHIPPING:

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.


Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

Low / Medium Voltage Steel Wire Armoured Power Cable 1 - 5 Cores Underground Cable

Ordering Advice

Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size $ Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
