Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable / Wire Size 1.5 - 400 SQ MM
Specifications
Brand Name :
SHAN CABLE
Model Number :
WDZA-YJY
Certification :
CE, IEC
Place of Origin :
CHINA
MOQ :
1000 Meters
Price :
$0.29/M ~ $120/M
Payment Terms :
T/T, L/C
Supply Ability :
200 Kilometers per Month
Delivery Time :
30 days
Packaging Details :
Wooden Drums
Conductor :
Copper conductor
Size :
1.5 - 400 SQ MM
Test :
No halogen acid gas release
Smoke :
Small fuming amount
Screen :
Copper Tape Screen
Performance :
Good flame retardant property
Corporation :
shenghua group
Brand :
Sh Cable
Description

Copper Tape Screen 0.6 / 1KV Low Smoke Zero Halogen Cable With Flame Retardant

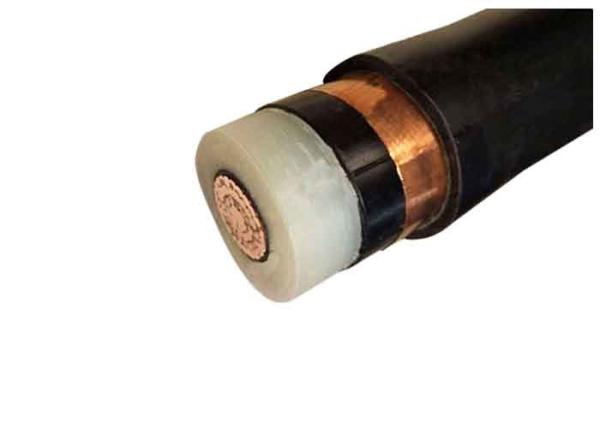

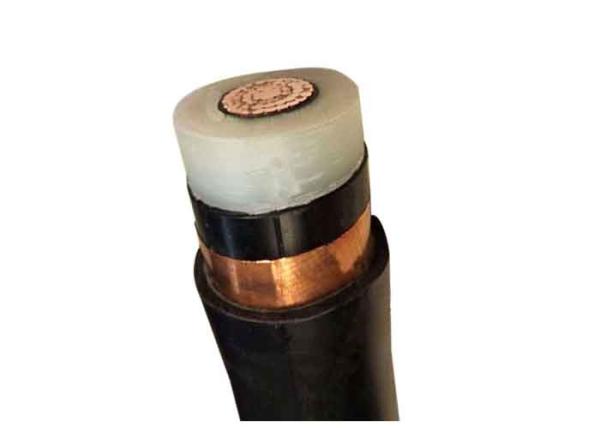

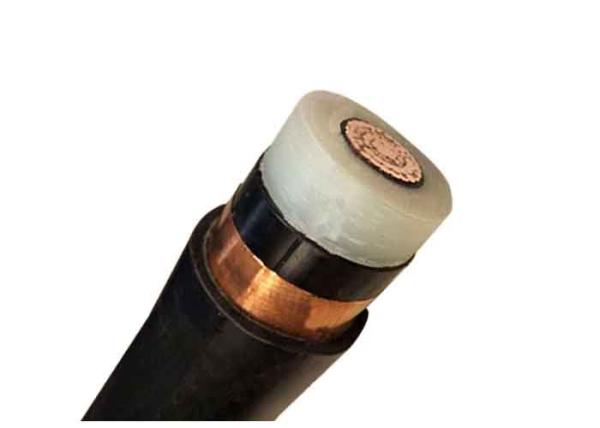

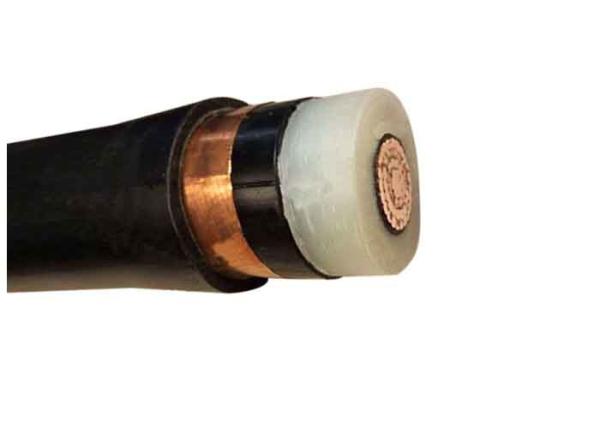

Construction
  1. Conductor:Compact stranded copper conductor, cl. 2 as per IEC 60228
  2. Mica Tape
  3. Insulation:XLPE (cross-linked polyethylene) rated at 90℃
  4. Filler
  5. Wrapping Tape:LSOH Bending Tape
  6. Sheath:LSOH,black or other colors, as per IEC60332,60502-1
Code Designation

YJ:XLPE insulation

Y:LSOH sheath

Applications
For laying indoors and outdoors. Able to bear certain traction during installation,but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards

International:IEC 60502, IEC 60228, (IEC 60332-3 for FR cable only)

China:GB/T 12706, (GB/T 18380-3 for FR cable only)

Other standards such as BS, DIN and ICEA upon request
Technical data

Rated voltage:0.6/1KV

Maximum Conductor Temperature:under normal (90℃),emergency(130℃) or short circuit no than 5 s (250℃) conditions.

Min.Ambient Temp.-15℃, Installation Temp.0℃

Min.Bending Radius:20x cable O.D for single core

15x cable O.D for multi core
