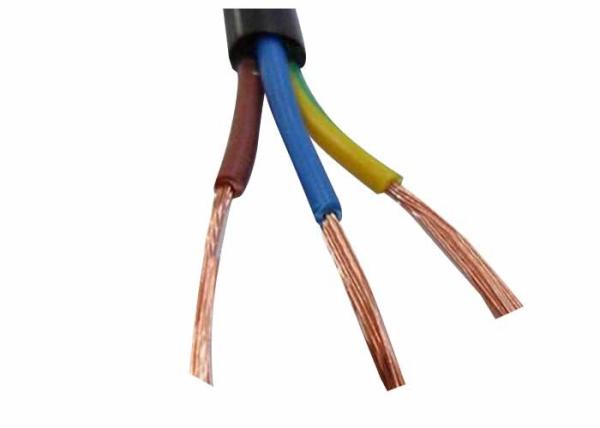

BV RV RVV Cable House Electrical Cable For Apparatus Switch / Distribution Boards
BV RV RVV Cable House Electrical Cable For Apparatus Switch / Distribution Boards
BV RV RVV Cable House Electrical Cable For Apparatus Switch / Distribution Boards
BV RV RVV Cable House Electrical Cable For Apparatus Switch / Distribution Boards
BV RV RVV Cable House Electrical Cable For Apparatus Switch / Distribution Boards
BV RV RVV Cable House Electrical Cable For Apparatus Switch / Distribution Boards
Specifications
Brand Name :
SHANCABLE
Model Number :
BV BVV RV R VV
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Cable Type :
BV BVV RV RVV
Standard :
IEC
Insulation Colour :
As per request
Warranty :
2 Years
Voltage :
450/750V
Conductor Material :
Copper
Insulation material :
PVC
Corporation :
shenghua group
Brand :
Sh Cable
Description

BV BVV RV RVV Cable House Electrical Cable Wires For Apparatus Switch / Distribution Boards/Building

Descriptions


Single-core non-sheathed cables with rigid conductor for general purposes
Code designation: 60227 IEC 01 (International), BV (China), NYA(VDE)

Constructions


Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1

Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
Insulation: PVC/C

SHeath: pvc

Applications


In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

Technical data


Rated voltage:450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request

Specifications

BV300/500V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
0.5 1/0.80 2.3 8.5 36.0
0.75(A) 1/0.97 2.5 11.1 24.5
0.75(B) 7/0.37 2.6 12.0 24.5
1.0(A) 1/1.13 2.7 13.9 18.1
1.0(B) 7/0.43 2.8 15.0 18.1

BV / BLV (BV-105) 450/750V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
Copper Aluminium Aluminium Copper
1.5(A) 1/1.38 3.2 20.3 12.1
1.5(B) 7/0.52 3.3 21.6 12.1
2.5(A) 1/1.78 3.9 31.6 17 11.8 7.41
2.5(B) 7/0.68 4.0 34.8 7.41
4(A) 1/2.55 4.4 47.1 22 7.39 4.61
4(B) 7/0.85 4.6 50.3


BV/BLV(BV-105) 450/750V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
Copper Aluminium Aluminium Copper
6(A) 7/0.85 5.0 50.3 29 4.91 3.08
6(B) 7/1.04 5.2 71.2 29 4.91 3.08
10 7/1.35 6.4 119 62 3.08 1.83
16 7/1.70 7.8 179 78 1.91 1.15
25 27/2.04 9.7 281 118 1.20 0.727
35 27/2.52 10.9 381 156 0.868 0.524
50 19/1.78 12.8 521 215 0.641 0.387
70 19/2.14 14.4 734 282 0.443 0.268
95 19/2.52 17.1 962 385 0.320 0.193
120 37/2.03 18.8 1180 431 0.253 0.153
150 37/2.25 20.9 1470 539 0.206 0.124
185 37/2.52 23.3 1810 666 0.164 0.0991
240 61/2.25 26.6 2350 857 0.125 0.0754
300 61/2.52 29.6 2930 1070 0.100 0.0601
400 61/2.85 33.2 3870 1390 0.0778 0.0470

BVV 300/500V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
2X1.5(A) 2x1/1.38 10.0 109
2X1.5(B) 2x7/0.52 10.5 123
2X2.5(A) 2x1/1.78 11.5 157
2X2.5(B) 2x7/0.68 12.0 172
2X4(A) 2x1/2.25 12.5 205
2X4(B) 2x7/0.85 13.0 222
2X6(A) 2x1/2.76 13.5 265
2X6(B) 2x7/1.04 14.0 286
2X10 2x7/1.35 17.5 471
3X1.5(A) 3x1/1.38 10.5 136
3X1.5(B) 3x7/0.52 11.0 146
3X2.5(A) 3x1/1.78 12.0 190

BVV 450/750V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
3x2.5(B) 3X7/0.68 12.5 207
3X4(A) 3X1/2.25 13.0 252
3X4(B) 3X7/0.85 13.5 272
3X6(A) 3X1/2.76 14.5 344
3X10 3X7/1.35 19.0 574
4X1.5(A) 4X1/1.38 11.5 164
4X1.5(B) 4X7/0.52 12.0 174
4X2.5(B) 4X7/0.68 13.5 252
4X4(A) 4X1/2.25 14.5 321
4X4(B) 4X7/0.85 15.0 346
4X6(A) 4X1/1.04 16.0 470
4X6(B) 4X7/2.76 17.0 439
5X1.5(A) 5X1/1.38 12.0 192
5X1.5(B) 5X7/0.52 12.5 205
5X2.5(A) 5X1/1.78 14.0 272
5X2.5(B) 5X7/0.68 14.5 292
5X4(A) 5X1/2.25 16.0 397
5X4(B) 5X7/0.85 17.0 418
5X6(A) 5X1/2.76 17.5 518
5X6(B) 5X7/1.04 18.5 550

BV RV RVV Cable House Electrical Cable For Apparatus Switch / Distribution Boards

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
