800 X 600 2.5mm2 Fire Resistant Cable With Inorganic Mineral Synthetic Mica Tape
800 X 600 2.5mm2 Fire Resistant Cable With Inorganic Mineral Synthetic Mica Tape
800 X 600 2.5mm2 Fire Resistant Cable With Inorganic Mineral Synthetic Mica Tape
800 X 600 2.5mm2 Fire Resistant Cable With Inorganic Mineral Synthetic Mica Tape
800 X 600 2.5mm2 Fire Resistant Cable With Inorganic Mineral Synthetic Mica Tape
800 X 600 2.5mm2 Fire Resistant Cable With Inorganic Mineral Synthetic Mica Tape
Specifications
Brand Name :
SHENGHUA CABLE
Model Number :
BTLY
Certification :
CE/KEMA/ISO/PCCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
T/T or L/C
Delivery Time :
15-25 working days after received your payment
Packaging Details :
Wooden Drum
Product Name :
FR Cable
Nominal Area of conductor :
Power cable:2.5mm2 to 300mm2
Package :
Wooden drum
Insulation :
Inorganic mineral synthetic mica tape
Standard :
IEC60702
Application :
Public servie High temperature situation.
Rated Voltage :
600/1000V
Cable Type :
Class 1 .2
Corporation :
shenghua group
Brand :
Sh Cable
Description

Fire Resistant Cable With Inorganic Mineral Synthetic mica Tape, 800 x 600

Fire Resistant Cable Constructions

1. Conductor: Plain circular stranded copper conductor,IEC 60228 Class 1,2

2. Insulation:Inorganic mineral synthetic mica tape,wrapped

3. Metallic Sheath:Aluminum sleeve,isolated

4. Insualtion Color code:PE extruded

5. Fire resistant layer:Inorganic mineral synthetic material,filled

6. Wrapping layer:Ceramic silicone rubber composite tape,wrapped

7. Out covering: PVC or LSZH,extruded

Fire Resistant Cable Applications

The product is used in public service,high temperature situation,potentially explosive area,hygiene situation,general installation.

Fire Resistant Cable Standards

International: IEC 60702-2002

China: GB/T 13033-2007

Other standards such as BS,DIN and ICEA upon request

Fire Resistant Cable Technical data

Rated voltage: 0.6 / 1 kV

Max. Conductor Temp.: normal (250℃), in the combustion flame temperature of 950-1000℃ for 3h.

Pass BS 6387 standard.

Fire Resistant Cable Certificates

BS6387 .CE, RoHS, CCC, KEMA and more others at request

Fire Resistant Cable Specifications

1Core

Nom. Cross-section of conductor Insulation Thickness Mean value of sheath thickness Nominal cross section are of sheath Nominal thickness outer covering Nominal diameter of cable Appro. weight of cable Max resistance at 20℃
mm2 mm mm mm mm mm Kg/km Oh/km
1x10 0.7 1.2 28.3 1.6 22.3 623 1.83
1x16 0.7 1.2 32.1 1.6 23.3 719 1.15
1x25 1.0 1.2 36.3 1.6 24.4 842 0.727
1x35 1.0 1.2 40 1.6 25.4 970 0.524
1x50 1.0 1.2 44.6 1.6 26.6 1127 0.387
1x70 1.0 1.2 51.3 1.6 28.4 1390 0.268
1x95 1.0 1.2 57 1.7 30.1 1682 0.193
1x120 1.0 1.2 63 1.7 31.7 1956 0.153
1x150 1.3 1.2 71.9 1.8 34.3 2334 0.124
1x185 1.3 1.2 78.3 1.8 36 2745 0.0991
1x240 1.3 1.2 109.1 1.9 38.9 3422 0.0754
1x300 1.3 1.2 120.0 2.0 41.4 4106 0.0601

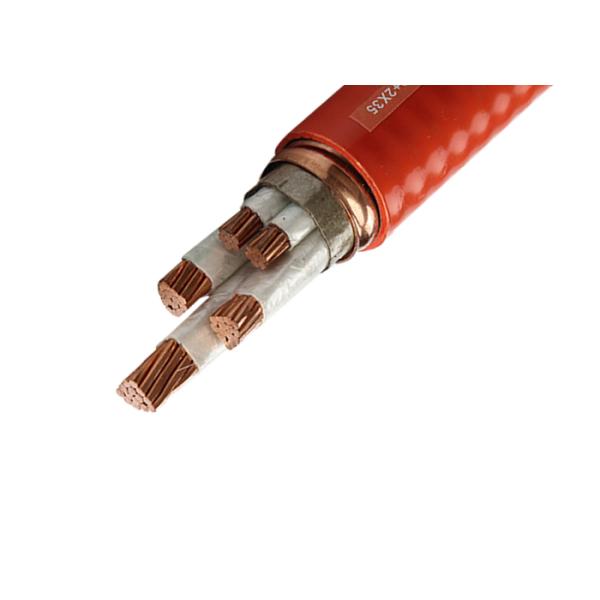

Fire Resistant Cable Picture

800 X 600 2.5mm2 Fire Resistant Cable With Inorganic Mineral Synthetic Mica Tape
