Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable
Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable
Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable
Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable
Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable
Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable
Specifications
Brand Name :
SHAN CABLE
Model Number :
WDZA-YJY WDZ-YJE
Certification :
RoHS/KEMA/TUV/CE/ISO
Place of Origin :
SHANGHAI CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
38573KM/Day
Delivery Time :
7 Days
Packaging Details :
Wooden Drum
Product Name :
Low Smoke Halogen Free Cable
Application :
electric transmission and distribution control systems
Tape :
Wrapping Tape
Rated Voltage :
0.6/1kV
Free sample :
Yes
Color :
Orange or customized
Standard :
IEC60228 IEC60331,60332
Type :
XLPE LSZH Cable
Corporation :
shenghua group
Brand :
Sh Cable
Description

Wrapping Tape Low Smoke Halogen Free Cable / Three Core XLPE LSZH Cable

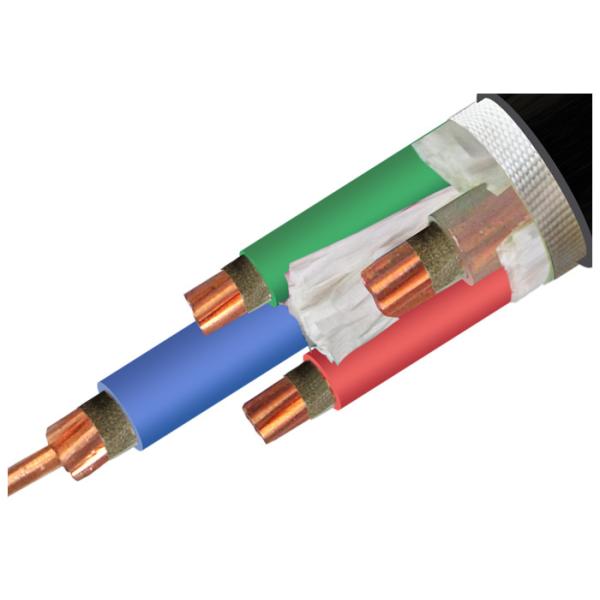

Low Smoke Halogen Free Cable Constructions

1. Copper or aluminum conductor

2. PE or XLPE insulation

3. Filler

4. Wrapping tape

Low Smoke Halogen Free Cable Standards

International: IEC 60502, IEC 60287 IEC 60331, IEC 61034 IEC60332

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Low Smoke Halogen Free Cable Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%

Type Description Cores Nominal Cross Section
WDZAN-YJY23 WDZBN-YJY23 WDZCN-YJY23 Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJY33 WDZBN-YJY33 WDZCN-YJY33 Copper conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJLY WDZBN-YJLY WDZCN-YJLY Aluminum conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJLY23 WDZBN-YJLY23 WDZCN-YJLY23 Aluminum conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJLY33 WDZBN-YJLY33 WDZCN-YJY33 Aluminum conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2

Low Smoke Halogen Free Cable Specification:

Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable

Details

Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable

Packing:

Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable

Wrapping Tape Low Smoke Halogen Free Cable / Three core XLPE LSZH Cable
