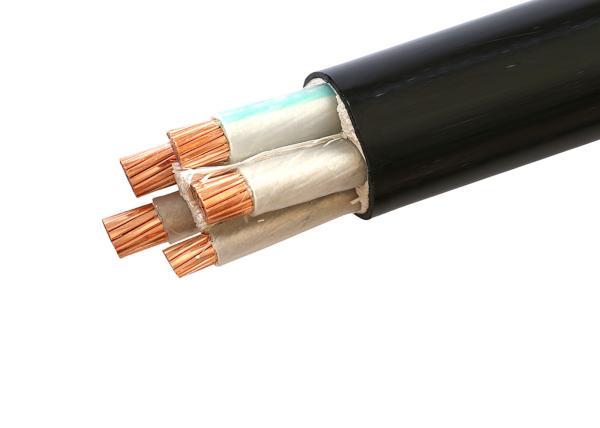

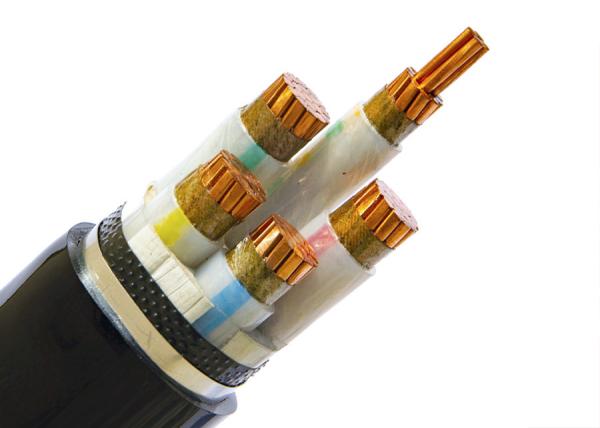

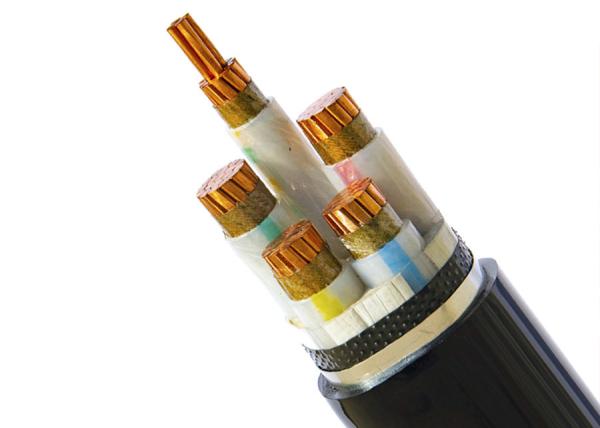

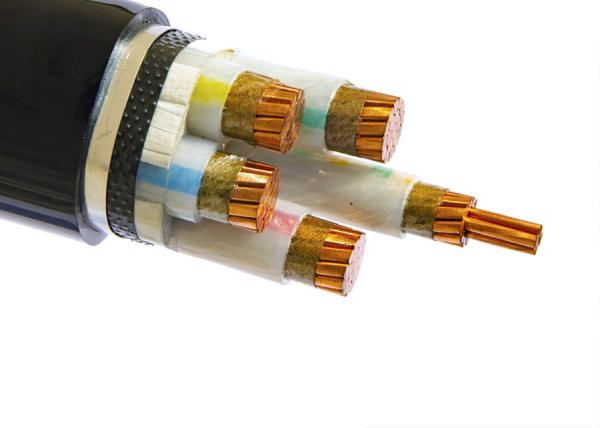

Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
Specifications
Brand Name :
XINXIN
Model Number :
WDZ-YJY WDZA-YJY23
Certification :
KEMA, CE, RoHS, CCC
Place of Origin :
Shanghai, China
MOQ :
500 Meters
Price :
$1.15/Meters >=500 Meters
Packaging Details :
Wooden Drums
Cu/XLPE Insulation LSOH sheath Power Cable
Insulation Material :
Xlpe
Type :
Medium Voltage
Application :
Power Station
Conductor Material :
Copper
Jacket :
LSOH sheath
Standard :
IEC 60502
Warranty :
2 years since delivery
Port :
Shanghai Port
Corporation :
shenghua group
Brand :
Sh Cable
Description

Cu/XLPE Insulation LSOH sheath Power Cable

Constructions

Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2

Insulation: XLPE(cross-linked polyethylene) rated at 90°C

Binder: Non-woven

Overall Sheath: PVC type ST2 to IEC 60502, black

Steel Wire Armoring

Overall Sheath: PVC type ST2 to IEC 60502, black. LSOH sheath

Applications

Suitable for use in power distribution lines with rated voltage 1.8/3kV. For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 26/35kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Certificates

CE, RoHS, CCC, KEMA and more others at request

Power Station Copper Low Smoke Zero Halogen Cable Cu- XLPE Insulation
