Specifications
Brand Name :
Maxphotonics
Certification :
CE,ISO9001:2008
Place of Origin :
Shenzhen, China
MOQ :
1 PCS
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability :
2000 units per year
Delivery Time :
5 Work Days
Packaging Details :
wooden case
Product Name: :
Fiber Laser Source
Laser Power: :
50W
Working Mode :
Pulse
The Polarization :
Random
Wave Length: :
1064nm
Beam Mass M2 :
1.3
Spectral Width (3dB) :
5nm
Cooling way :
Air cooling
Weight :
12kg
Working Voltage :
23 VAC
Description

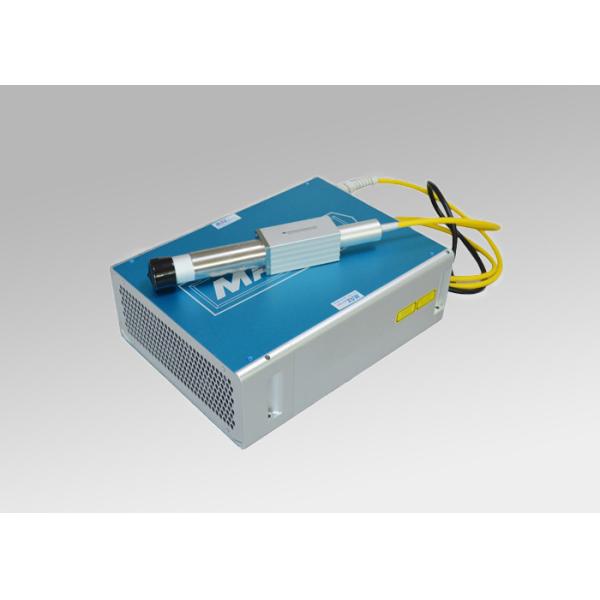

50W Fiber Laser Power Source , Fiber Optic Light Source Air Cooling

Brief introduction:

50W Fiber Laser Power Source , Fiber Optic Light Source Air Cooling is a new generation of acousto-optically q-switched fiber laser.The optimized optical path structure makes the performance of high reflectivity materials more stable.The new optical path scheme and welding process make the beam quality more excellent and meet the application requirements of most plastic marking, all metal marking, etching, deep carving, surface cleaning, high-precision thin plate cutting, drilling, etc.Its excellent performance and high reliability have greatly improved the efficiency and effectiveness of marking.

Main Features:

1. Marking stable, pulse without peak

2. Peak power increased by 30%, over 11KW

3. Excellent single pulse energy

4. Narrower pulse widths

Technical Parameters:

Parameters Data Data Data Unit
Type MFP-20 MFP-30 MFP-50
Polarization Random Random Random
Central Emission Wavelength 1064±4 1064±4 1064±4 nm
Nominal Output Power 20 30 50 W
Output Power Tunability 10~100 10~100 10~100 %
Output Fiber Length 5~20 5~20 5~20 m
Weight 10 12 12 kg
Cooling Water Cooling Water Cooling Water Cooling
Size(L*W*H) 345.5*266.2*120 345.5*266.2*120 345.5*266.2*120 mm

(All parameters is believed to be accurate and is subject to change without notice.)

23 VAC 50W Fiber Laser Source , Fiber Optic Light Source Air Cooling Pulse Working Mode

More Details:

23 VAC 50W Fiber Laser Source , Fiber Optic Light Source Air Cooling Pulse Working Mode23 VAC 50W Fiber Laser Source , Fiber Optic Light Source Air Cooling Pulse Working Mode23 VAC 50W Fiber Laser Source , Fiber Optic Light Source Air Cooling Pulse Working Mode

Typical Applications:

1. Details presentation

2. Material processing

3. industrial-used plastics

After sales service and Warranty:

2 Years from the shipping date, our after sales service department is online 7/24, so just feel free if you have any after sales questions or problems.
When the warranty period expires, we are also willingly to help our customers to cope with different problems. And our customers only need to bear the cost of components, and we guarantee the best price.

Sample Show:

23 VAC 50W Fiber Laser Source , Fiber Optic Light Source Air Cooling Pulse Working Mode23 VAC 50W Fiber Laser Source , Fiber Optic Light Source Air Cooling Pulse Working Mode
