15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source
15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source
Specifications
Model Number :
CWFL-800
Certification :
CE
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
7 work days
Packaging Details :
Cart
Application :
800W Fiber Laser Source
Pump power :
550W
Compressor power :
1050W
Current :
3.4-11.2A
Voltage :
220V
Precision :
±0.5℃
Colour :
White
Net. weight :
80kg
Description

Product Description

CWFL-800 dual-temperature-control water chiller is specially designed for 800W fiber laser cooling. It can cool fiber laser and QBH connector at the same time. CWFL-800 adopts dual-temperature-control mode to provide the best temperature control solution for fiber laser. Meanwhile, users can manually set the water temperature or switch to the intelligent temperature control mode according to actual needs.

Features

1. The cooling poewr is up to 3000W; environmentally friendly refrigerants can be used;

2. The temperature control accuracy can be within ±0.5℃;

3. The laser water chiller intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of settings and fault display functions;

4. The dual-temperature-control mode meets the different cooling needs of the fiber laser main body and lens;

5. Equipped with ion adsorption filtering and detection, which meets the requirements of optical fiber laser;

6. With multiple alarm protection functions: compressor delay protection; compressor over-current protection; water flow alarm; temperature over-high/low alarm;

7. Multi-national power supply specifications, CE, RoHSREACH certification;

8. Longevity and durability, easy to operate;

9. Optional heater and purified water configuration.

Product details

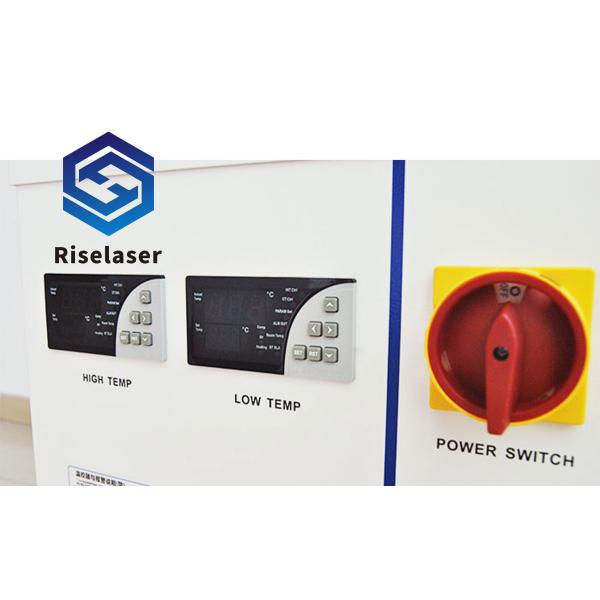

1. Two high-precision independent temperature control systems simultaneously cool the fiber optic body and QBH connector.

15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source

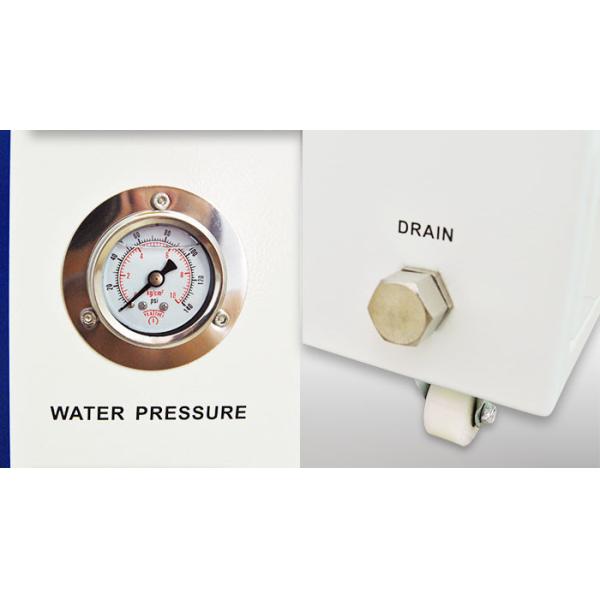

2.Equipped with water pressure gauge; drain valve; universal casters

15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source

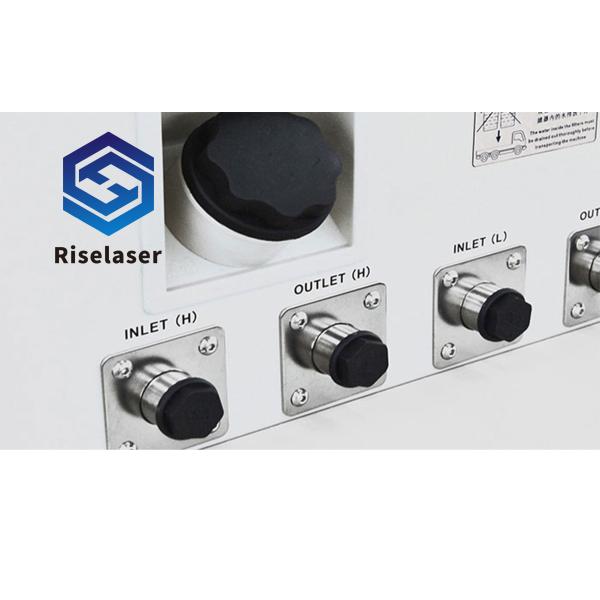

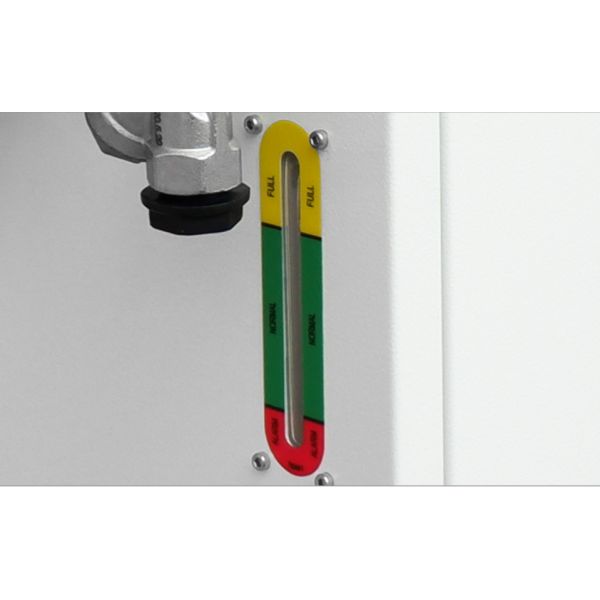

3.Double inlet and double outlet loop water interface and water level gauge

15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source

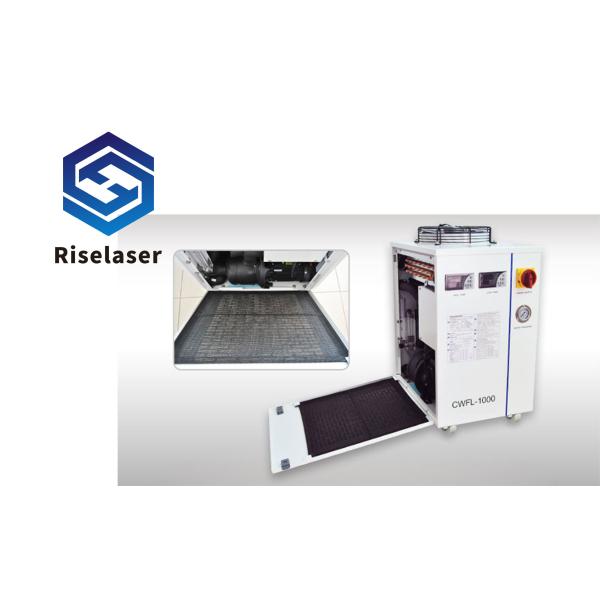

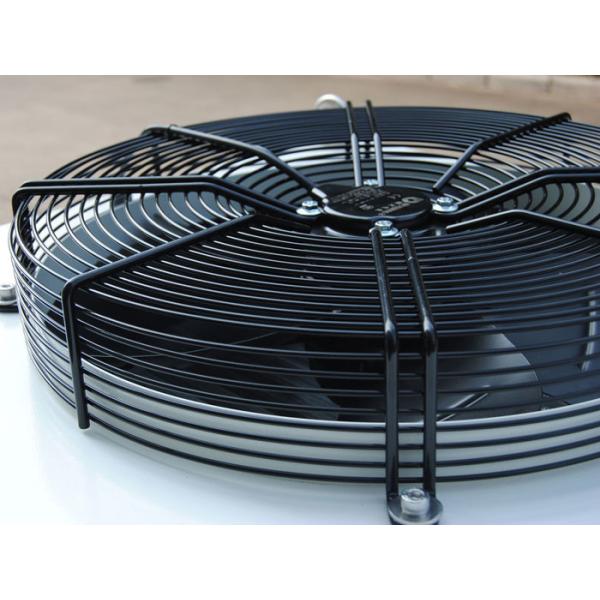

4.Exhaust fan and dust net

15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source

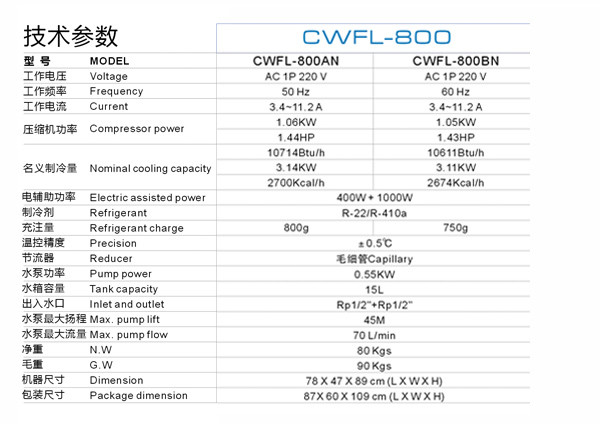

Parameters

15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source

Certifications & Exhibition

15L 11.2A 550W Pump laser Water Chiller For Fiber Laser Source
