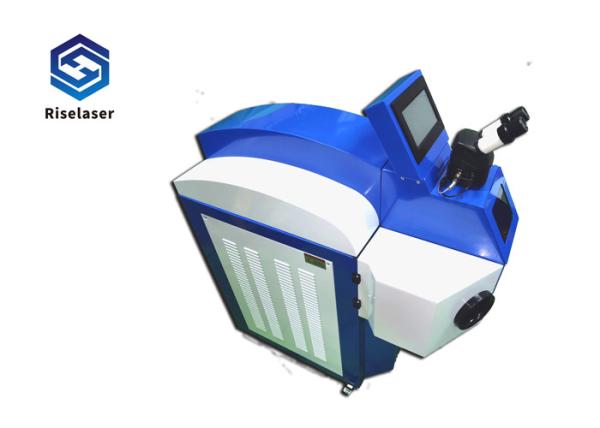

YAG Small Optical Laser Welding Machine Continuous Welder 200W
YAG Small Optical Laser Welding Machine Continuous Welder 200W
Specifications
Brand Name :
Riselaser
Model Number :
RL-Y200
Certification :
CE
Place of Origin :
SHENZHEN
MOQ :
1 SET
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Delivery Time :
5-9 working days
Packaging Details :
Wooden case
Model Name :
RL-Y200
Application :
Jewelry Welding
Laser Source :
YAG
Color :
Customized
Voltage :
220V/110V Optional
Cooling Method :
Water Cooling
Warranty :
1 Year
Description

YAG Small Optical Laser Welding Machine Continuous Welder 200W

Product introduction

Optical laser welding machines apply high-energy pulses to heat specific small areas of specific materials. Laser welding is a new type of welding technology, mainly used for thin materials and precision parts. It can realize spot welding, butt welding, seam welding and sealing welding. Its advantages are high position accuracy and continuous and stable work.

Product Features​
1) Whole machine adopted ergonomics design. It can better meet jewelry industry's requirements on precision, beautiful, stable performance, long time and constant processing.
2) Big inner space, it is convenient for placing tools and fixtures.
3) It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
4) It is easy to replace dust screen, clean working area and recycle welding slag.
5) With the LED ring-shaped astral lamp which can be highlighted and microscope imported from Germany, the observation on welding position is much clearer.
6) More precise light spot, it meets the requirement of precision welding.

Specification:​

Model No. RL-Y100 RL-Y150 RL-Y200
Laser Source Nd: YAG
Laser Wavelength 1064nm
Rated Power 100W 150W 200W
Laser Energy 40J 60J 80J
Pulse Width ≤20ms
Pulse Frequency ≤50Hz
Beam Diameter 0.1-3.0mm
Power Supply 220V±10% /50Hz
Observing System microscope
Chamber Illumination LED lamps
Parameters Memorization 10 groups
Protection Alert flow alert
Language Display Chinese/English
Shield Gas Supply One line
Cooling System water cooling
Power Consumption 4KW 5KW 6KW
Welding Chamber Dimensions 300mm*450mm*150mm(L*W*H)
Machine Dimensions 920mm*560mm*1220mm (L*W*H)
Running Environment 5℃-30℃, 5%-75% humidity
Net Weight 70kg

Video

Industry Application:

RL-Y200 machines are widely used in jewelry industry, hardware industry, tool industry, instrument industry, automobile industry, energy industry, building materials industry, model and machinery manufacturing, electrical and electronic industries.

YAG Small Optical Laser Welding Machine Continuous Welder 200W

Packaging

We cooperate with many shipping companies who have much experience in transportation.

Standard 3-layer export package:
1. Exterior: plywood package

2. Center: foam
3. Interior: waterproof film

FAQ

Q1: Are you a factory or a trade company ?
A1: We are manufacturing laser machines and we provide perfect OEM and after-sale service.
Q2: How about the machine guarantee?
A2: We generally offer you 1 year guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver an English user manual to you. If you need further help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine and go through every corner to check the accuracy. Machines will not be dispatched until running at least two days continuously to ensure quality.
