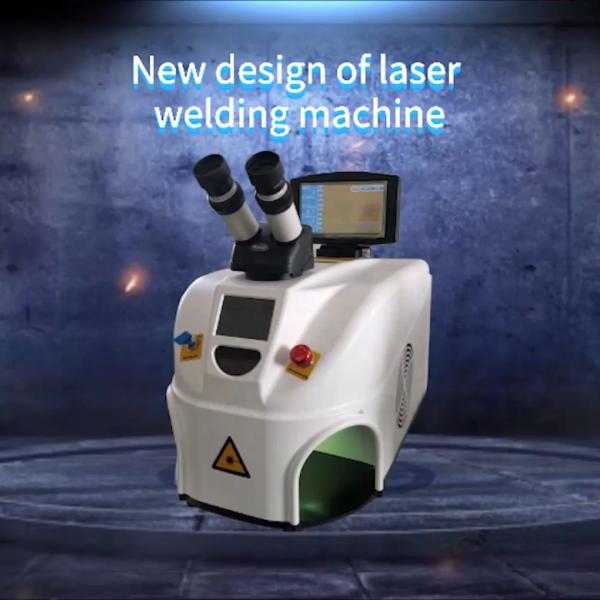

0.1ms Pulse Jewellery Handheld Fiber Laser Welder For Gold Silver SS
Feature of CE approved laser welding machine for jewellery 80w:
1. Imported ceramic capacitor cavity, corrosion resistance, high temperature resistance and cavity life (8-10), the life of xenon lamp exceeds 8 million times
2. Using the world's most advanced automatic power-off system, eliminating the time irritating the eyes
3. The parameter adjustment design of the double panel, the adjustment rocker in the closed cavity is added, and the operation is more convenient
4. The professional working design in the cavity makes it easy to clean and recover precious metals
5. Laser power, pulse width and frequency are adjustable, suitable for welding various metal materials
6.10X microscope magnification, cross-hair indication, and high-speed liquid crystal light valve automatically shading blinds.
7. The output shielding gas is synchronized with the laser to ensure the appearance of the solder joints, and the solder will not oxidize and change color
8. It has 24 hours of continuous operation, stable performance of the whole machine, and 10,000 hours of maintenance
Data of CE approved laser welding machine for jewellery 80w
Model | RL-Y80 |
Wavelength | 1064 nm |
MAX. Output Power | 80W |
MAX. Pulse Energy | 60J |
Pump Source | Single Lamp |
Pulse Width | 0.1 - 20 ms |
Pulse Frequency | 50Hz / 60Hz |
Aiming & Positioning | microscope + CCD camera system (7 inch panel) |
Host Power Consumption | ≤5KW |
Electricity Demand | AC220V±5% / 50Hz / 60Hz |
Cooling System | Water Cooling + Air Cooling |
Machine Size | L:510mm W:295mm H:420mm |
Packing Size | L:630mm W:480mm H:500mm |
Net Weight | 29KG |
Gross Weight | 43KG |
Application of CE approved laser welding machine for jewellery 80w
CE approved laser welding machine for jewellery 80w laser welding machine is a product specially used for jewelry laser welding,
mainly used for holes and spot welding blisters of gold, bronze, stainless steel and silver jewelry. This laser welding machine is widely used in the fields of jewelry, dentistry, advertising signs, and has a good market prospect.
