200W 100W 50W laser rust removal machine Oil Painting Metal Steel Stone Cleaner
The RL-C200 suitcase-type fiber laser cleaning machine system is one of the advanced products developed by Riselaser Technology Co., Ltd. It uses the high-energy advantage of laser working on the surface of the workpiece to prevent rust, paint, and oil on the surface of the workpiece. .
Laser cleaning technology is a new technology developed in recent decades.
Related research began in the mid-1980s, but it was not until the early 1990s that it began to receive attention and rapid development by researchers. Its appearance opened up laser technology in the industry. New fields of application, and become a new member of the laser processing family. Protection of automobiles, medical care, and cultural relics.
Fiber laser cleaning machine specification
Model | RL-C50 | RL-C100 |
Laser source | Fiber | Fiber |
Laser power | 50W | 100W |
Fiber cable length | 1.5-3 M | 1.5-3 M |
Laser wavelength | 1060nm | 1064nm |
Pulse energy | 1 mJ | 1.5 mJ |
Pulse frequency | 1-1000KHz | 1-2000KHz |
Cleaning speed | ≤5 M²/Hour | ≤12 M²/Hour |
Cooling | Air cooling | Air cooling |
Machine dimension | 500*300*650mm | 500*300*650 mm |
Packing dimension | 680x450x530cm | 680x450x530mm |
Net weight | 29kg | 29kg |
Gross weight | 42kg | 42kg |
Beam width | 10-70mm | 10-100mm |
Optional | Manual/Auto | Manual |
Temperature | 5-40 ℃ | 5-40 ℃ |
Voltage | Single Phase AC220V,50/60HZ | Single Phase AC220V, 50/60HZ |
Equipment Performance
The machine adopts originally fiber laser and high speedy galvo scanning system. High quality of light beam, long using time, stable equipment performance exempts maintenance. It is speedy, and precious. Cleaning has non-touched process, permanent effect, humanized operation, and stable running.
Application
Laser derusting, degreasing, laser paint removal, laser dezincification and film removal, and laser coating removal of metal workpieces are widely used in aerospace, molds, microelectronics, construction, nuclear power plants, automobile manufacturing, medical treatment, military, etc.

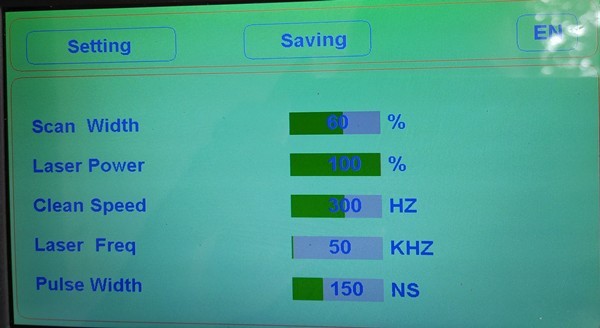

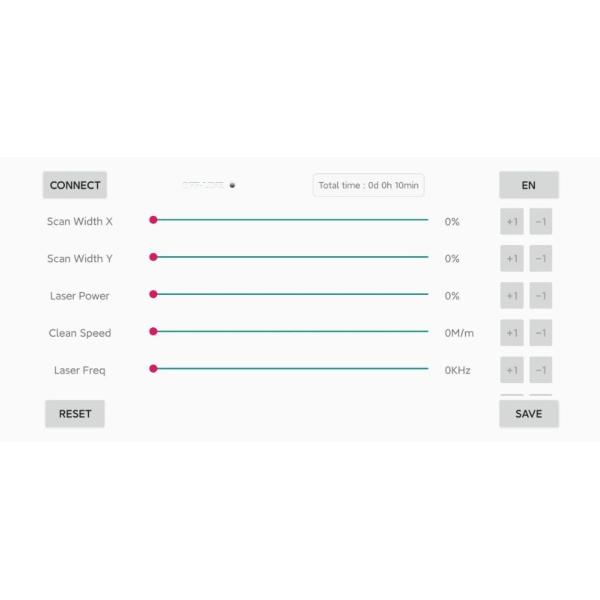

Control method - parameter adjust
By touch scrren
By application
Qestions aobut portable laser cleaning machine
Q1. How to get the most suitable machine and best price
Please tell us the material you want to engrave or cut? Max size and thickness?
Q2. If we don't know how to use the machine,can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any
help during use our machines.
Q3.How about your after-sales service?
we offer you 24 hours service by phone, Skype or Whatsapp.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
