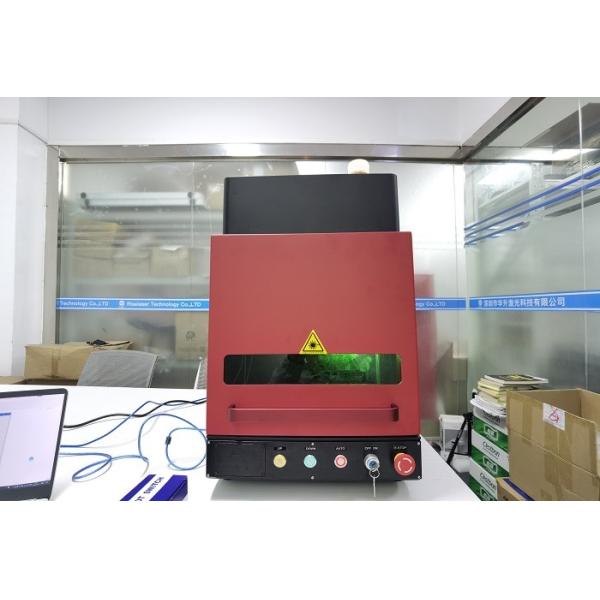

20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function
20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function
Specifications
Brand Name :
Riselaser
Model Number :
RL-50E
Certification :
ISO9001:2008, CE
Place of Origin :
China
MOQ :
1 SET
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, , T/T, L/C, MoneyGram
Supply Ability :
2000 units/ month
Delivery Time :
5-9 working days
Packaging Details :
Wooden Case, 59KG
Product name :
20w fiber laser marking machine
Condition :
100% new
Control Software :
EZCAD
Marking area :
175mm*175mm
Laser Source Brand :
RAYCUS, MAX or JPT
Aviable laser power :
20w/30w/50w
Marking Speed :
0-7000mm/s
Laser wavelength :
10.64um
Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service Local
Description

20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function

Machine introduction

1. The machine has a long service life, exceeding 100,000 hours.
2. Using air-cooled compact laser source, fast heat dissipation and continuous work
3. The super-quality galvanometer scanning system uses a galvanometer scanner and an electronic control device to obtain high precision and repeatability for correct marking every time, and the performance is more stable.
4. Professional control panel and marking software supporting all windows operating systems. Supports files output by software such as Coreldraw, AutoCAD, Photoshop, etc., and supports multiple file formats such as PLT, DXF, PCX, and BMP.
5. The output power of the machine is stable, the optical mode is good, and the beam quality is excellent.
6. The marking speed is fast, the efficiency is high, and the precision is high.
7. Professional appearance and simple operation.

8. With built-in CCD to help marking position located.

Machine details

20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function

Galvo head

20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function

Built in LED lamp

20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function

Parameter

Fiber laser marking machine technical parameters
Laser Type Fiber laser
Laser Power 20W 30W 50W
Model RL-20E, RL-30E, RL-50E
Laser Wavelength 1064nm
Marking Area

75*75mm, 110*110mm, 150mm*150mm

175mm*175mm
Marking Depth ≤1.2mm
Marking Speed 10000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Module 100 000hours
Beam Quality M2 <1.3
Focus Spot Diameter <0.01mm
Output Power of Laser 5%~100% continuously to be adjusted
System Operation Environment Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode Air cooling--Built-in
Temperature of Operation Environment 15℃~35℃
Power Input 220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement <400W
Communication Interface USB
Machine Dimension/after package 920*830*1160mm
Net Weight/gross weight 120/170kg
Optional Rotary Device, Moving Table, other customized Automation

Application

Fiber laser marking machine Can be used with most metal marking applications, such as

Gold, silver, stainless steel, brass, aluminum, steel, iron, etc., can also be marked on a variety of non-metallic materials, such as ABS, nylon, PES, PVC, Makrolon.

20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function

Working video

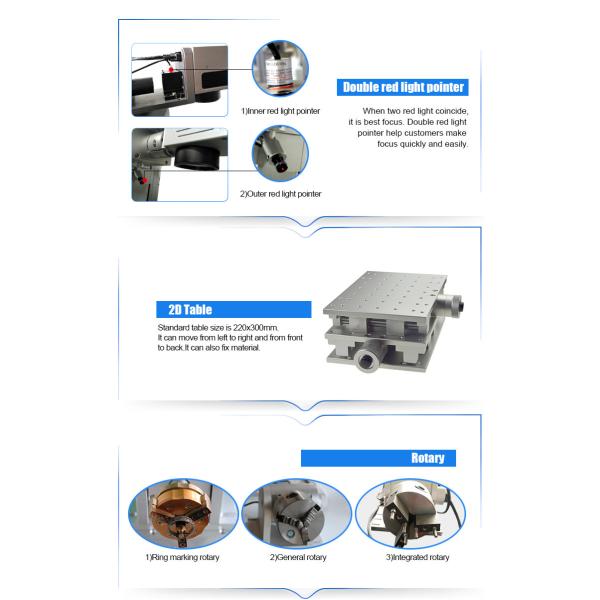

Related tools
