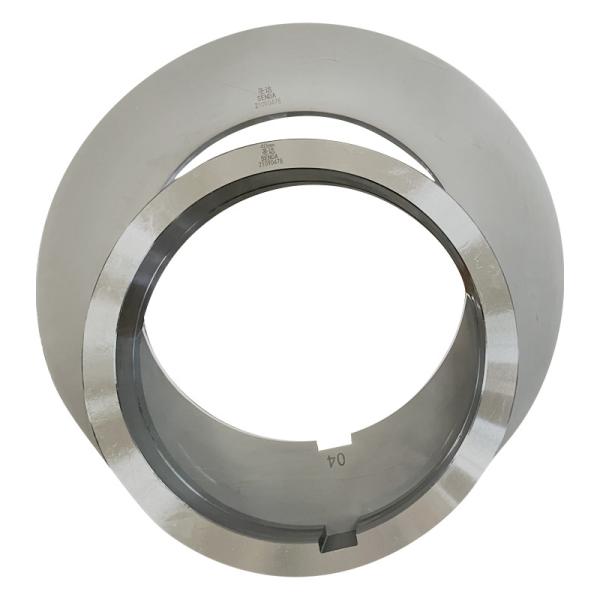

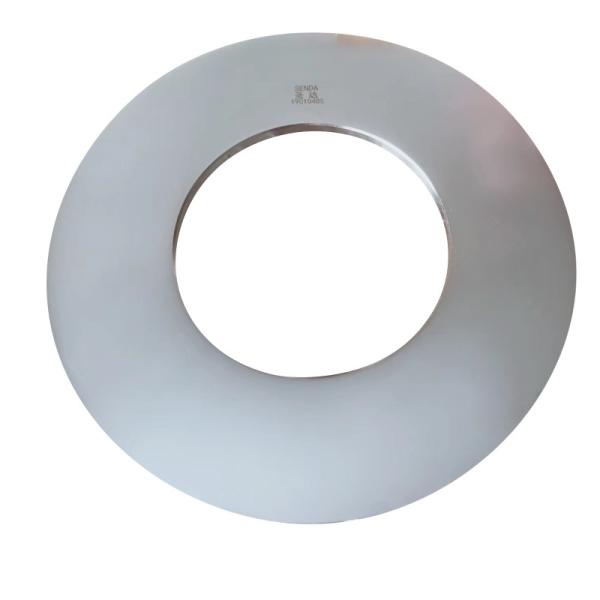

HRC 52-55 tool steel Rotary Slitter Blades
HRC 52-55 tool steel Rotary Slitter Blades
HRC 52-55 tool steel Rotary Slitter Blades
HRC 52-55 tool steel Rotary Slitter Blades
HRC 52-55 tool steel Rotary Slitter Blades
HRC 52-55 tool steel Rotary Slitter Blades
Specifications
Brand Name :
SENDA
Certification :
ISO9001
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
30-35days
Packaging Details :
anti-rust oil in plastic bag and Packed in strong plywood case
Model Number :
SD004
Name :
Rotary slitting knives
Other name :
slitter blade, sheet rotary slitter blade
Material :
SKD11,D2, M2, HSS, TCT
Thickness tolerance :
+-0.001mm
Inner Diameter :
+0.02mm
Flatness :
≤0.002mm
Parallelism :
≤0.002mm
Concentricity :
≤0.02mm
Surface roundness :
Ra0.1um
Hardness :
Tool steel: HRC53~55
Application :
slitting lines, slitter machine
Description

sheet metal slitter machine rotary slitting knives for stainless steel coils and sheets

Senda Rotary slitting knives for metal coil processing are mainly applied to slitter machines. Slitting blades cut for cold milling coil, we often use LD, HMY material for thick plate and coil cutting. And hot milling coils, we often recommend to use H13, H13K, HMB material to do the slitting. With our experience, we offer the best suitable sltting blade for your slitter systems.

Brand Senda
Country of Origin China
Material D2, M2, HSS, TCT etc
Size: Customized
Thickness tolerance +- 0.001mm
Inner Diameter +0.02mm
Flatness ≤0.002mm
Parallelism ≤0.002mm
Concentricity ≤0.02mm
Surface roundness Ra 0.1um
Hardness TCT: HRA 89~93, Tool steel: HRC53~65
Packaging wooden box with anti-rust film inside
Application For slitter machine, rolling mill equipment etc.

Application of the Rotary slitting knives for metal coil processing:

1. Normally for hot rolling: 1mm~12.7mm carbon steel coils, stainless steel plates sheet etc.

2. Normally for cold rolling: 0.02mm~3.2mm carbon steel plates, stainless steel plates, galvanized plates etc.

HRC 52-55 tool steel Rotary Slitter Blades

HRC 52-55 tool steel Rotary Slitter BladesHRC 52-55 tool steel Rotary Slitter Blades

HRC 52-55 tool steel Rotary Slitter Blades

HRC 52-55 tool steel Rotary Slitter Blades

You may also need below items:

Rotary blades
Rubber rings
Metal distance rings
Plastic spacers
Separator Discs
Clamping nuts with grease
Straight Blades
Scrap Chopping Knives

Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
