10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine
10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine
10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine
10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine
10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine
10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine
Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
machine type :
Span Curving Roof Roll Forming Machine
Features :
Electric control, high tension strength
roller material :
good steel, coated with rigid chrone.
feed device :
auto-feed device
Forming speed :
10000~12000 mm/min
Max span :
40m
Description

Electric Control Span Roof Tile Production Line High Tension Strength

I Description of the machine
This super span machine is developed by ourselves with technology similar to ABM MIC-240 forming machine. It is comprised of mechanical expansion decoiler, straight panel forming unit, hydraulic mould cutting device, curving panel forming unit, control system, hydraulic system, run-out racks for straight and curve panels and all other accessories. All parts are installed on a mobile chassiss. So it is suitable for site working

II Features
2.1 Rollers are made of good steel, coated with rigid chrone.
2.2 There is an auto-feed device which can feed 0.5-1.5mm color steel sheets. During production, there is no need to adjust the gaps between rollers.
2.3 Light and convenient hoist, only 2kg (those from USA is 30kg). And thus makes quick and convenient installation.
2.4 Large span, high corrugation, high tension strength, nutless, etc.
2.6 Profile:depends on drawings and on request
III Main technical data
3.1 Mounting dimension: 8900mm x 2250mm x 2300mm
3.2 Total weight: about 11500kg
3.3 Control system: electric control
3.4 Main forming unit driving motor power: 7.5kW
3.5 Curving motor power: 4+1.1+1.1 kW
3.6 Electric cutting motor power: 3kW
3.7 Material of rollers: 45# steel, quenched HRC 58-62
3.8 Material of roller shafts: 45# steel, adjusted
3.9 Material of cutting blade: Cr12
3.10 Step of rollers: 13 steps
3.11 Forming speed: 10000~12000 mm/min
3.12 Max span: 40m
IV Buildup and spares
1. Decoiler for coils
2. Straight panel forming unit
3. Curving panel forming unit
4. Electric control system
5. Electric mould cutter
6. Two manual clamps (for clamping the beginning seam lock between two curved panels)
7. Small C chanel bending machine
8. Lifting clamps, 8 sets
9. Lifting steeve, two pieces
10. Lock seaming machine
11. Run-out racks for straight panel and curving panel: each 8 pcs enough for 36m span
12. Bearings for roller stands of straight panel forming mschine: two pieces
13. Driving chains: two pieces
14. Hand scissors: one piece (for cutting beginning terminal of color coils)
15. Hand clamps (for clamping curved panels to let seamer seam two panels together): 4 pieces
16. Wrench: one piece
17. Operation manual and CD

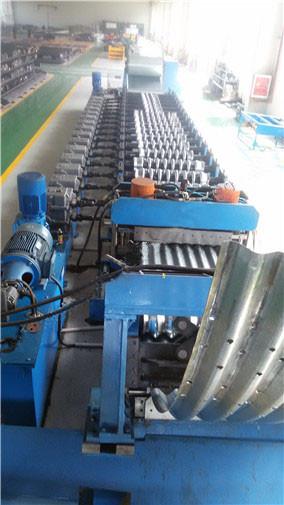

Machinery Photos

10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine

Workshop show

10000mm/min Span Roof Tile Roll Forming Machine , Metal Roof Tile Making Machine
