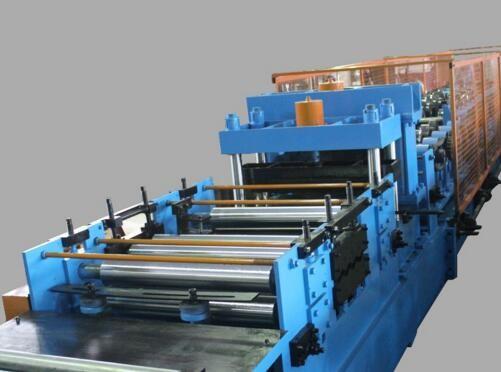

cz purlin roll forming machine metal c shape forming machine

1. Purlin Specification

2. Machine Components

1) Manual decoiler---------------------------------------------------------------------------------------1 set

2) Feeding and leveling device------------------------------------------------------------------------1 set

3) Rolling forming system------------------------------------------------------------------------------1set

4) Hydraulic punching and cutting--------------------------------------------------------------------1 set

5) Product support frame-------------------------------------------------------------------------------1 set

6) PLC Control System-----------------------------------------------------------------------------------1 set

3. Main Parameters

1)Decoiler

Decoiler Type: manual decoiler

weight capacity of decoiler : 5.0T

2)Feeding and Leveling Device

It used for making the material flat before feeding into the roll forming machine.

3)Rolling Forming System

main motor type: phase asynchronous motor

main motor power: 15KW

speed of forming: 10-14.8m/min

material of roller : GCr15

18 groups rollers

material of main shaft : 40Cr (The main shaft have the high frequency grinding & heat Treatment and the surface of shaft is chroming

diameter of main shaft: ø70mm

4) Hydraulic Punching & Cutting

punching Type: Hydraulic Punching

Punching material: Cr12

Punching die: Cr12

Cutting type: Hydraulic cutting (100-200 use a specification shearing tool and 200-300 use a specification shearing tool. we have the patent technology.)

Cutting material: Cr12 Cr12MoV Cr12(total three blades)

Hydraulic motor power: 5.5KW

Hydraulic Pressure: 16Mpa

5) PLC Control System

Control the quantity &punching length & cutting length automatically

The Machine will be stopped while it is punching and cutting

Automatic Length measures and quantity counting (precision +- 3mm)

Voltage: 380V, 3 Phase 50Hz

Size of PLC Control Board(PLC: 700mm(L)x1000mm(H)x300mm(W)

PLC manufacturer: Japan Panasonic

Transducer: Japan Panasonic

Solenoid valve: Beijing hade

Oilhydrauliccylinder: yuci

Oil pipeline: parkers

Touch Screen(manufacturer: Japan Panasonic)

Encoder : Omron

Decoiler→Feed And Leveling Device→Rolling Forming System→Hydraulic Punching & Cutting→Product Support Frame
