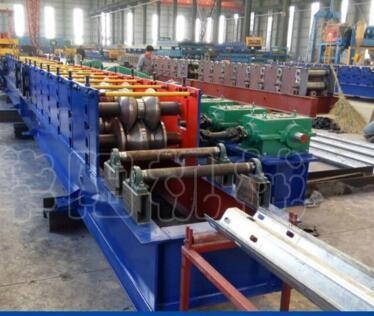

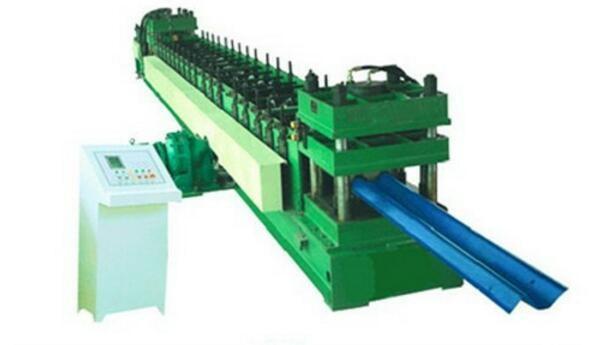

5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
40-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
product name :
highway guardrail roll forming machine
Pump Power :
11kw
Forming Speed :
3-5 m/min
Roll Station :
16stands
Roller Material :
45# forging steel
Total Weight :
20T
Main Power :
30kw
Condition :
New
Description
galvanized roadway guardrail roll forming machine high quality roadway safety foming machinery
Product Description

Technical Parameter of European standard steel guardrail by highway guardrail roll forming machine produced

Configurations Uncoiler ,Feeding platform,Coil Strip Leveler ,Roll froming machine,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System PLC Delta Inverter
Main Frame 300mm H-Beam
Main Power 30kw
Pump Power 11kw
Power Supply 380V, 3-Phase,50Hz
Forming Speed 3-5/min
Roll Station 16stands
Shafts Diameter 80mm
Hydraulic Pressure 10-12MPa
Effective width 310mm
Feeding Thickness 2-4mm
Backboard thickness 20mm
Chain Size 0.6mm
Cutter Materail Cr12
Roller Material 45# forging steel
Overall Size 16000×2400×1300mm
Total Weight 20T
No. Name Qty remark
1 Decoiler 1
2 Leveling loading machine 1
3 Punching machine1# 1 Punching end hole
4 Roll forming machine 1
5 Cutting machine 1
6 Output machine 1
7 Hydraulic system 2
8 PLC Control system

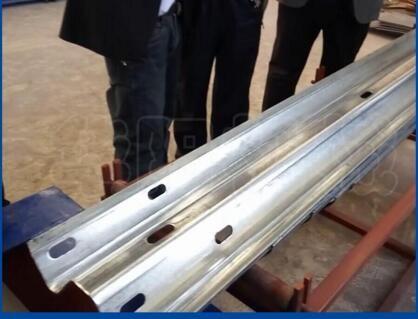

Profile drawing of European standard steel guardrail by highway guardrail roll forming machine produced
5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
