Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1 sets per month
Delivery Time :
Within 45 days after receiving the deposit
Packaging Details :
Export package
Application :
C/U Guardrail post roll forming machine
Material Thickness :
2.5 – 5 mm
Rolling Speed :
10– 15 m / min
Side structure :
Memory archway
Transmission :
Gearbox
Suitable Material :
Hot Rolled Steel
Description

C/U Post Roll Forming Machine

Features

The main features of Automatic change CU post roll forming machine are as follows:

1. Infinite sizing(any size within machine range),help to save material

2. Produce different purlin size without changing rollers or spacers.

3. Optional Punch hole at any position of purlin web side and flange side

4. No need changing cutter for different size.

5. Easy operation, low maintenance cost.

Technological process
Decoiler—Feeding&Leveling—Punching—Roll forming—Hydraulic cutting—Output tables

U C Post 2.5mm Guardrail Forming Machine No Need Changing Cutter For Different Size

Parameters:
1. Suitable Material: Hot Rolled Steel
2. Material Thickness: 2.5 – 5 mm
3. Line speed: 10– 15 m / min

Components:
The C/U Post Highway Guardrail Roll Forming Machine is mainly made up of the following parts.
1. Un-coiler(Manual/Hydraulic)
2. Feeding and straightening device
3. Hydraulic punching

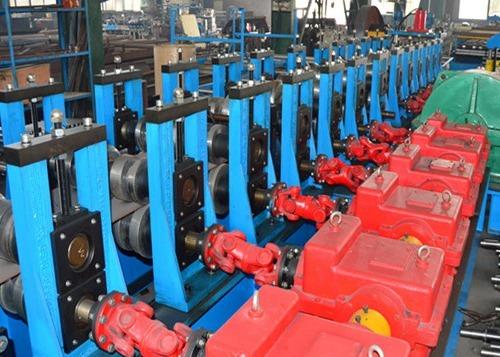

4. Roll forming unit

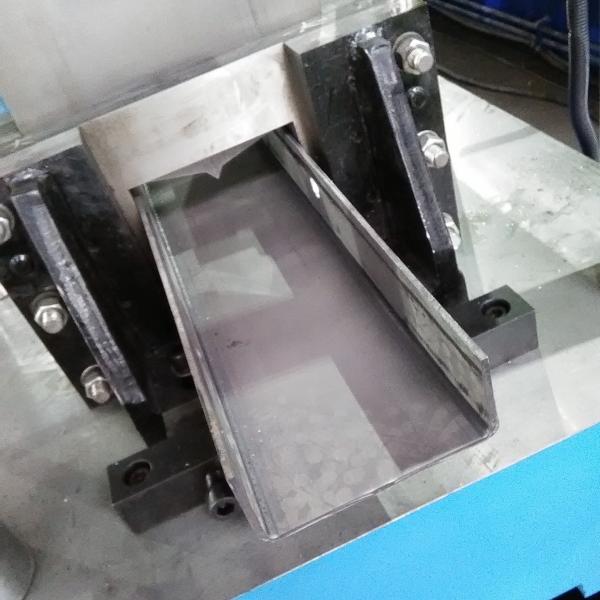

5. Hydraulic cutting device
6. PLC control box with touch screen
7. Receiving table

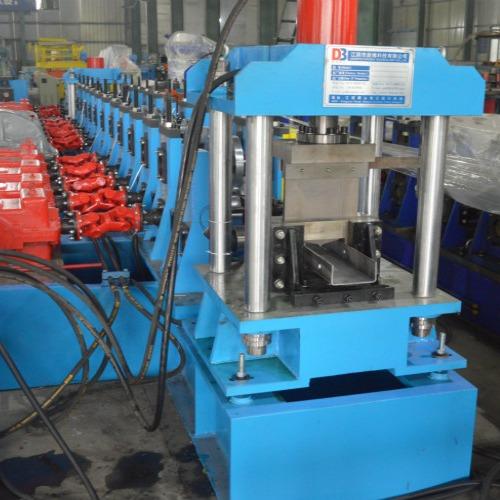

Machine Pictures:
