15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets per month
Delivery Time :
within 45 days after receiving the deposit
Packaging Details :
Export package
Name :
Cable Ladder Roll Forming Machine
Material width: :
200-800 mm
Material thickness :
0.8-2.0 mm
Rolling speed :
10-15 m/min
Roller stations :
24 stations
Main motor power :
22 Kw
Power supply :
380V, 50Hz, 3 Phase
Control system :
PLC
Description

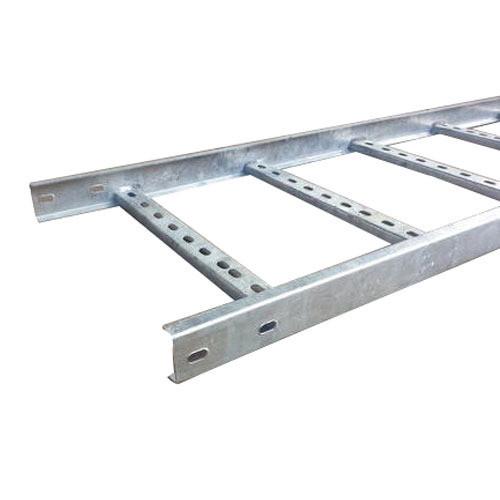

Cable Ladder roll forming machine

Main features

The cable ladder manufacturing machine especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe. For DingBo cable tray roll forming machine is a kind of machine for making cable tray by roll forming principle.

Working flow

Uncoiler--Feeeding--Leveling—Punching—Roll forming--Hydraulic cutting----Output table

15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine

Technical parameters

1. material width: 200-800mm

2. material thickness: 0.8-2.0mm

3. uncoiler: 6 tons manual

4. rolling speed: 10-15m/min

5. roller stations: 24 stations

6. roller material: GCr15 quench treatment

7. main motor power : 22Kw

8. cutting material: Cr15 with quench treatment

9. hydraulic cutting power: 7.5Kw

10. power supply: 380V, 50Hz, 3 Phase

11. control system: PLC

Machine components

Name Quantity
Manual decoiler 1 set
Main forming machine 1 set
PLC control system 1 set
Hydraulic pump station 1 set
Post cut 1 set
Electric motor 1 set
Output table 1 set

Machine picture

15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine

Profile drawing

15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
