Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Pe film
Name :
EPS Sandwich Panel Roll Forming Machine
Production line speed :
3~8m/min
Voltage :
customized
belt conveyor :
21m,24m,36m
belt cutting system :
saw blades
delivery time :
120 days
coil width :
1070mm/1000mm
effective width :
950mm
Description

EPS Sandwich Panel Roll Forming Machine With 12 Month Warranty

INTRODUCTION:

EPS continuous sandwich panel production line

Advantage

1. Variable frequency speed control

2. Latest type,little noise

3. High precision in forming and cutting

4. High efficiency

5. Widely use

Product description

1. Panel from the continuous sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports;

2. The continuous sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics. ;

3. Roof panels, wall panels and door panels are made mainly of metal section support and polyurethane insulating mass;

4. The capacity of the continuous line is 3-7m/min, length of the production line is 100m, the size of the final panel is 3-18m long, 900-1200mm wide, 20-150mm thick, the valid length of double belt conveyor is 24m, the total power is 300KW

Technical parameter

NO. ITEMS TYPE/UNIT SP-PU-C
1 Color steel sandwich panel Specifications mm Width: 700 ~ 1000
Thickness: 30 to 150 custom length
2 Production line speed m/min 3~8
3 Double belt laminated conveyor length m 24m
4 The maximum temperature of the hot air circulation °C 70
5 Total power Kw 300
6 Line dimensions (L × W × H) mm About 86000×7000×3800
7 The total installed power capacity Kw About 207
8 Stove power Kcal 200,000
9 Double belt laminated conveyor length m 24

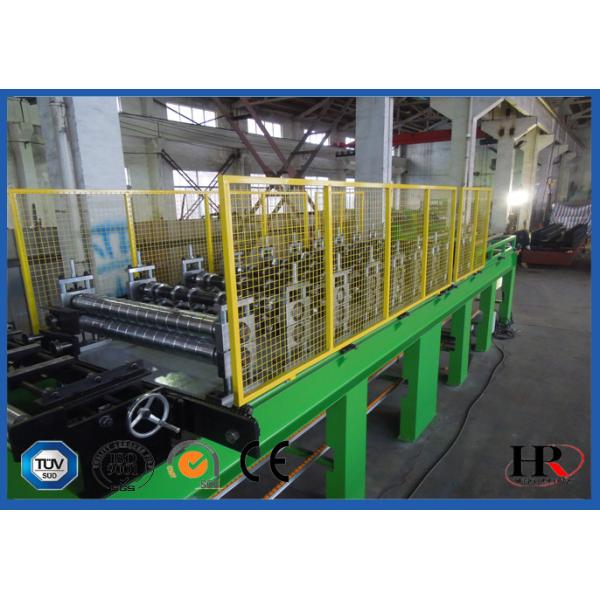

Machine picture

Continuous EPS Sandwich Panel Roll Forming Machine 8m/Min
