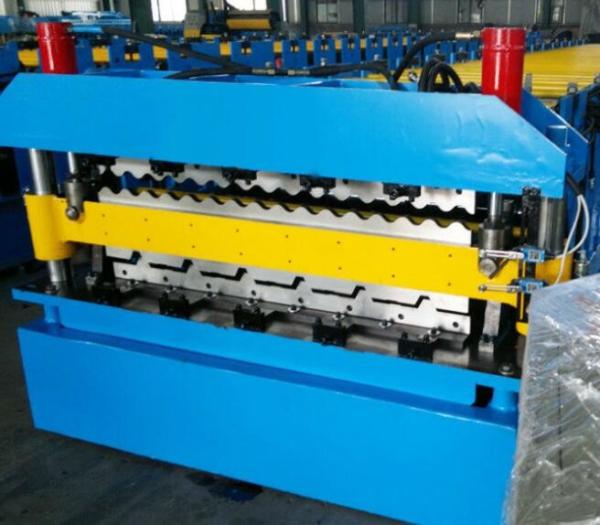

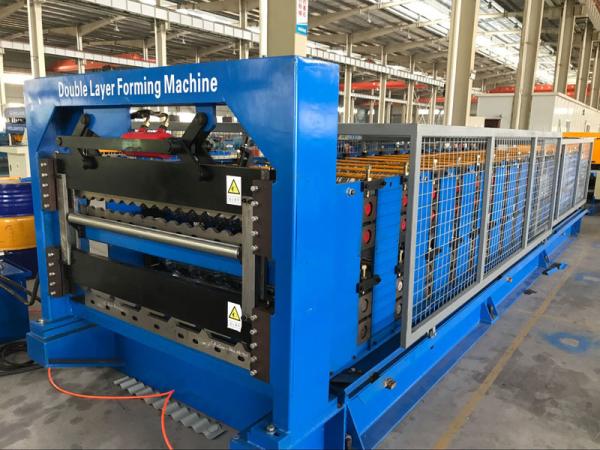

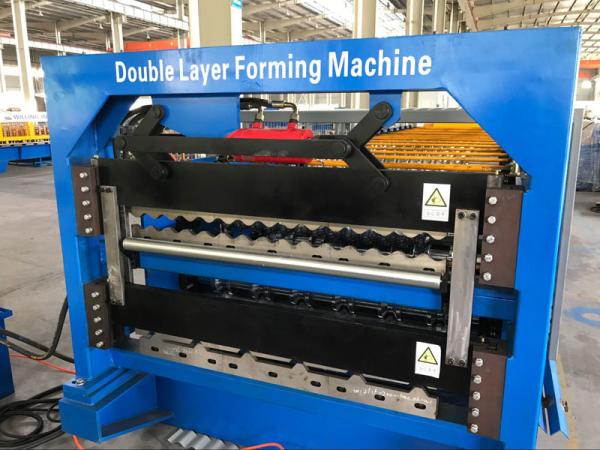

0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine
Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE ISO SGS TUV
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
40-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Double Layer Roof Wall Panel Roll Forming Machine
Material :
steel
Color :
Negotiable
Thickness :
0.4-0.7mm
PLC :
siemens
Voltage :
380V 50Hz 3phases
Condition :
New
Description

double layer roofing tile roll forming machine metal roofing roll forming machine

The Chart of Process flow

Decoiling→ feeding→ pressing and forming the shape→ measure the length→ cutting→ receiving the plates

Equipment sketch map:

0.7mm Double Layer Roll Forming Machine , Double Layer Roof Wall Panel Roll Forming Machine

Technical Specification:

1 configurations manual decoiler,guiding platform, main machine of roll forming, tile pressing system, cutting device, output table, electro-motor, hydraulic station, plc control system
2 processing material aluminium sheet/galvanized steel coil/color steel coil
3 material thickness 0.3-0.8mm
4 effective width 1100mm
5 feeding width 1250mm
6 main motor power 4kw
7 pump power 4kw
8 control system plc computer control
9 roller material high grade No.45 forged steel, with hard chrome plating on the surface of rollers with thickness 0.05mm
10 shaft material high grade No. 45 carbon wrought steel
11 cutting material Cr12 mould steel with quenched treatment

About Us

Wuxi Hengruiyang Technology Co., Ltd is a manufacturer of roll forming machine. At present, our products have been exported all over the world, and maintained good cooperative relations with customers.

Main Product
We produce all kind of roll forming machine,now the fasteset speed can reach 50m/min.

Our product:color steel roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine,cable tray machine, and so on.

Specialization
Wuxi Hengruiyang Technology Co.,Ltd is professional manufacturer and exporter and specializes in designing, manufacturing, developing, sales and services in roll forming machine.Our engineer has beed in this feild about 20 years.

Experience
We are proud of our own professional team with more than 18 years’ experience in customized design and manufacture, installation and test, technical solution and after services. All the machines are with international quality standards and great after-sales services.
