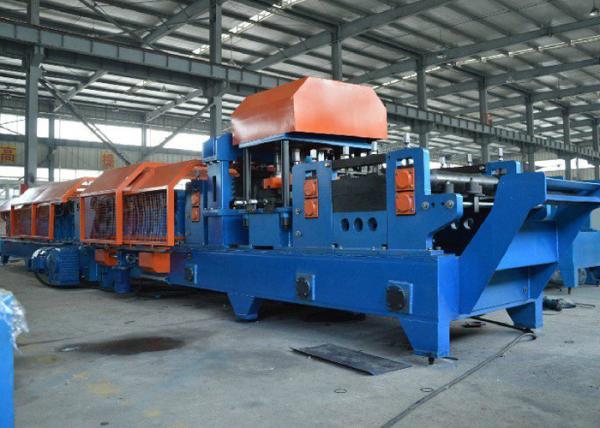

Hydraulic Automatic CZ interchange Steel Purlin Profile Roll Forming Machine

Product description

C/Z purlin interchangeable roll former can produce C, Z profiles. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production. The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Process Flow of Automatic CZ Roll Forming Machine:

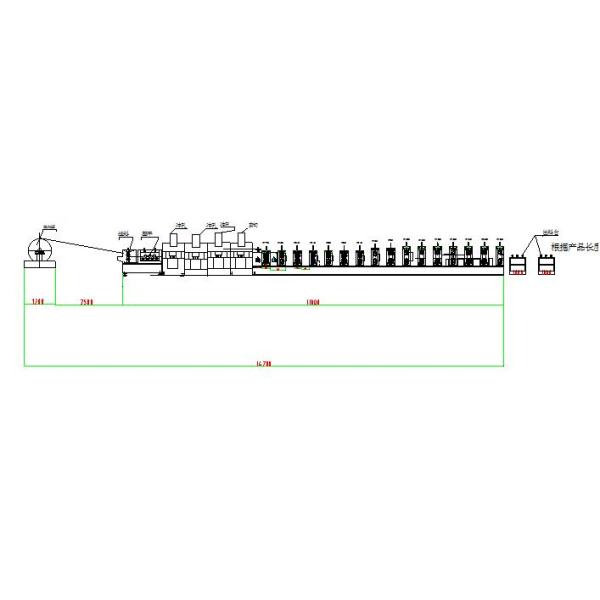

Uncoiler -Feeding -Straightening-Roll Forming -Punching -Cutting-Run out table

Specifications
1. Decoiler
Decoiler Type: manual decoiler
Weight capacity of decoiler: 5.0T

2. Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine.

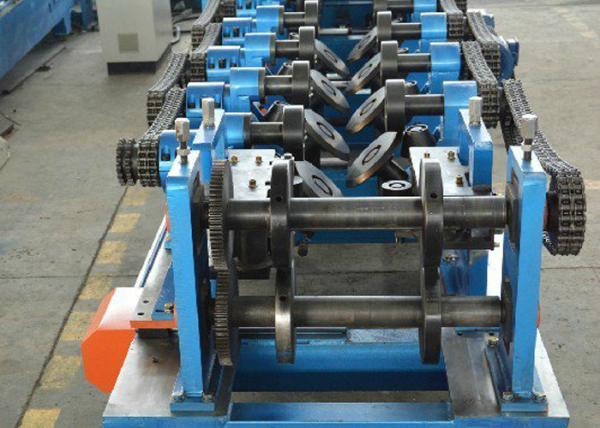

3. Rolling Forming System
Main motor type: phase asynchronous motor(manufacturer: Shanghai Nanyang)
Main motor power: 30KW
Speed of forming:15-25m/min
The material of the roller: GCr15

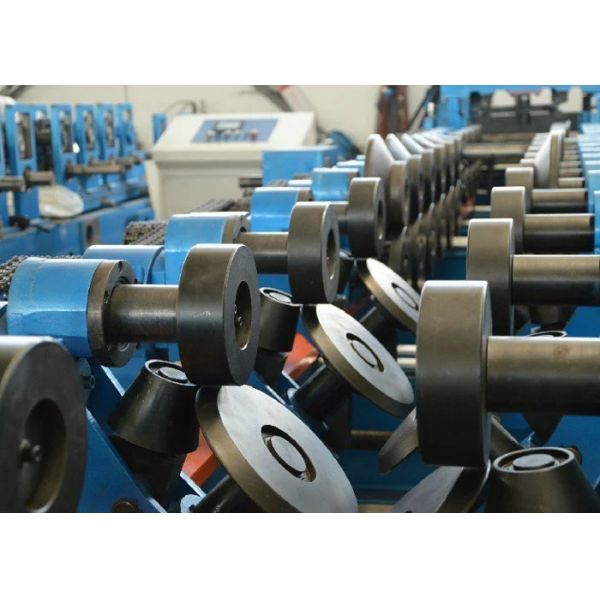

20 groups rollers
The material of the main shaft: 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of the shaft is chroming
diameter of main shaft: ø70mm

4. Hydraulic Punching & Cutting
punching Type: Hydraulic Punching
Punching material: Cr12
Punching die: Cr12
Cutting type: Hydraulic cutting (100-200 use a specification shearing tool and 200-300 use a specification shearing tool. we have the patent technology.)
Cutting material: Cr12 Cr12MoV Cr12(total three blades.
Hydraulic motor power: 5.5KW
Hydraulic Pressure: 16Mpa

5. PLC Control System

Control the quantity &punching length& cutting length automatically
The Machine will be stopped while it is punching and cutting
Automatic Length measures and quantity counting (precision +- 3mm)

Voltage: 380V, 3 Phase 50Hz
