High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
name :
c purlin machine
Roller stations :
16 stations
Material of chain :
45# forged steel with frequency quenching, 12A
Material of cutting :
Cr12Mov with quench HRC 58-62°
Transmission :
Gearbox
Description

2-4mm Thickness Galvanized Steel C Purlin Roll Forming Machine High Speed Durable Automatic

C Purlin Making Machine Technical Parameter

Item NO

Description

Offered specification
1.0 Roll forming machine
1.1 Rolling speed 0-12m/min(not include cutting time)
1.2 Rolling thickness 2-4.0mm
1.3 Raw material Galvanized steel sheet
1.6 dimension 6500×600×800(mm)
1.7 Effective width 100-600mm
1.8 Roller stations 16 stations
1.9 Roller material 45# steel, coated with chrome, Quenching
1.10 Shaft diameter Φ60mm ,material is 45# forge steel
1.11 Transmission Gearbox
1.12 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Cutting Tolerance 6m+-1.5mm

Main Components

No Name quantity
1 3 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Cutting device 1 unit
6 Out tables 2 units

Working Flow of Roll Forming Machine

feedingwithguide—Rollforming——Cutting—Products collecting

High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness

Standard Profile and Drawing of product

High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness

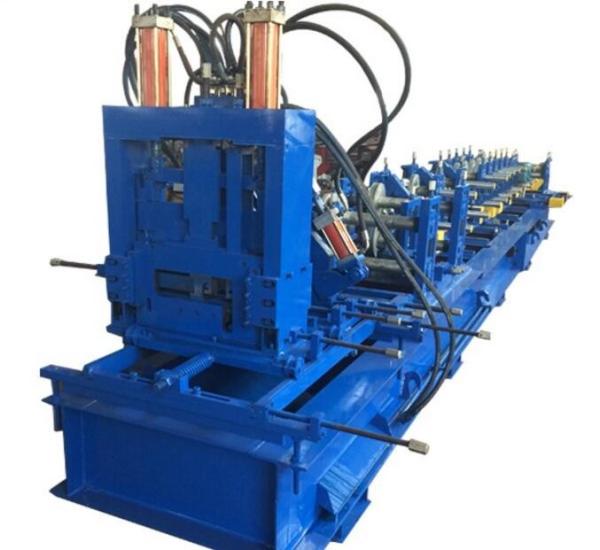

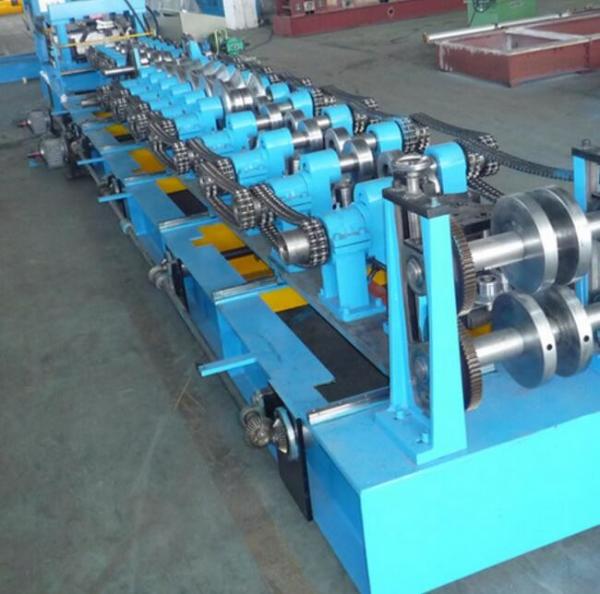

Photo Gallery

High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness High Speed Galvanized Steel C Purlin Roll Forming Machine Automatic 2 - 4 Mm Thickness
