1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine
1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine
1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine
1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine
Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
40-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Material :
steel
Thickness :
1-5mm
Color :
accoring customer
PLC :
Siemens
Profile :
choose
Description

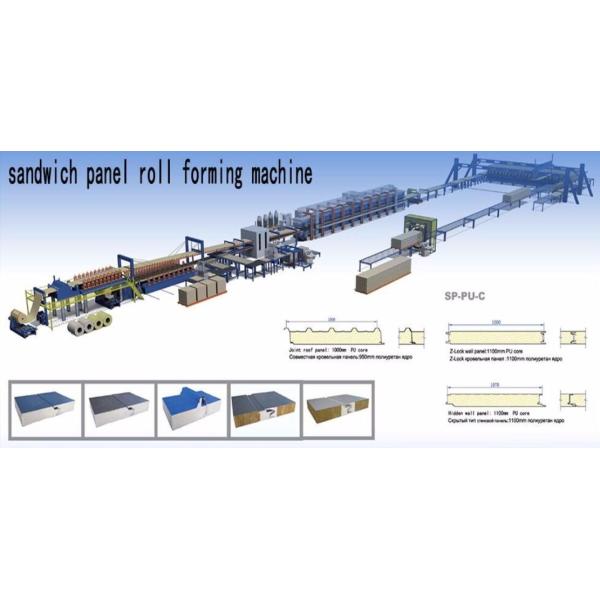

Sandwich Panel Roll Foriming Machine Line consists of:

Hydraulic Uncoiler----Color Steel Forming Machine------ Gluing System------ Main Composite Machine-------Automatic Tracking Cutting System -------- Elevator System------ Controlling System

Technical Parameters

Color Steel Forming Part

1). roller station: 14

2).material of roller:45#steel

diameter of roller:Φ70mm

3).rolling mould: two sets

blade: two sets

material of blade:Cr12

4).main motor power:4.0Kw(Tai Wan Delta frequency converter or as per customers requirement)

5).forming speed:0-8m/min

6) sprocket: P-25.4

7) thickness: less than 1mm

7) dimension:12*1.5*0.8m

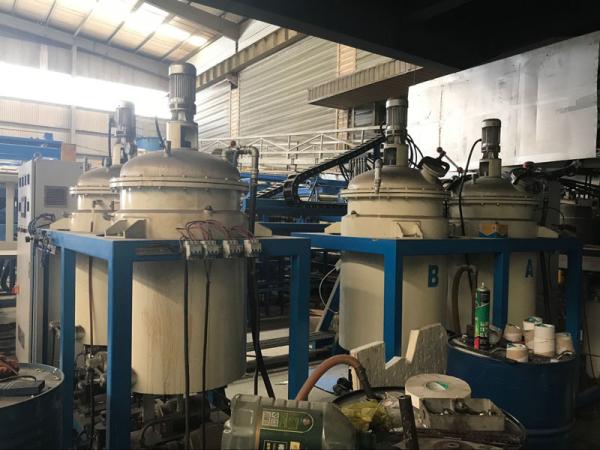

Gluing System

1).glue pump power:1.5KW

2).two Sets

3).glue pump : 2Sets

1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine

Types of Sandwich

panels

EPS

sandwich panels

Foam and rockwool sandwich panels

Glass wool

sandwich panels

Sample

 1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine 1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine 1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine
The feeding width of plate

1.1000mm(for wall and bottom panel),

1200mm(form and rockwool)

Cover width

of plate

980mm(Foam),

960mm (Rockwool)
Core thickness 50--250cm
Core material Foam , rockwool and glass wool
Total power 32KW
Dimension 33*3*2.8 meters
Control system PLC (Delta )control system full automatic control
Material of sandwich production machine square tube:80*160*9mm
Rubber shaft 38pcs

One double layer roll forming machine

Steps of forming roller: 13/14steps

Diameter of shaft: 70mm

Thickness of Middle plate: 16mm

Main body of machine: 350mm H steel

Chains: 1 inch

1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine
