Specifications
Brand Name :
HENGRUIYANG
Model Number :
OEM ODM
Certification :
CE , ISO9001, TUV, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
40-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Type :
Fully Automatic
Voltage :
380V
Power(W) :
3KW
PU Sandwcih PanelThickness :
25-100mm
Production line speed :
3-8 m/min
Double belt laminated conveyor length :
24m
Description

Fully Automatic PU Sandwich Panel Machine production line With 3KW Power

Technical Data:
NO. ITEMS TYPE/UNIT SP-PU-C
1 Color steel sandwich panel Specifications mm Width: 700 - 1000mm
Thickness: 30 - 150 custom length
2 Production line speed m/min 3~8
3 Double belt laminated conveyor length m 24m
4 The maximum temperature of the hot air circulation ℃ 70
5 Total power Kw 300
6 Line dimensions (L × W × H) mm About 86000×7000×3800
7 The total installed power capacity Kw About 207
8 Stove power Kcal 200,000
9 Double belt laminated conveyor length m 24

Description:

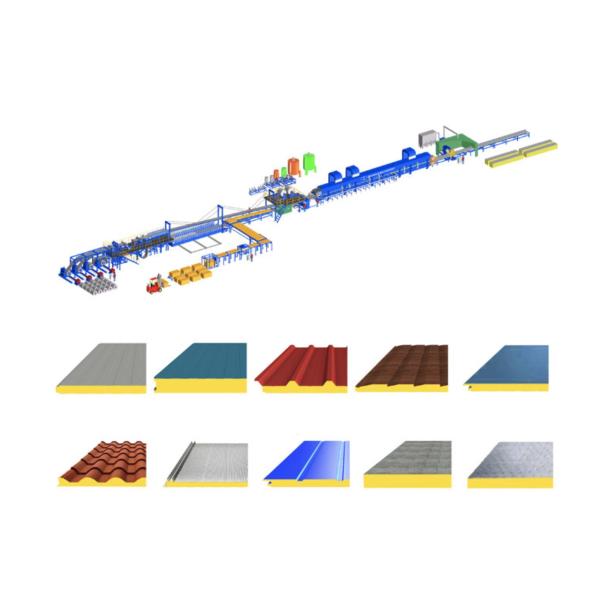

This production line is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with roof forming panel as the top face layer, aluminum foil as the bottom face layer. The sandwich panel is between 25 and 200mm in thickness, 1000mm in width, length determined by the customer. The sandwich panel is mainly used as keeping warm for wall and roof . Different insulating panels with other soft facing layers could also be produced on the line.
The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into shape,after all for above actions are completed, by an automatic tracking cutting mechanism, cut into segments according to the preset length.

3KW PU Sandwich Panel Machine 8m/min , Sandwich Panel Manufacturing Equipment

Our Advantage:

  • Economical
  • Simple
  • Standard speed
  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10Years Experience
