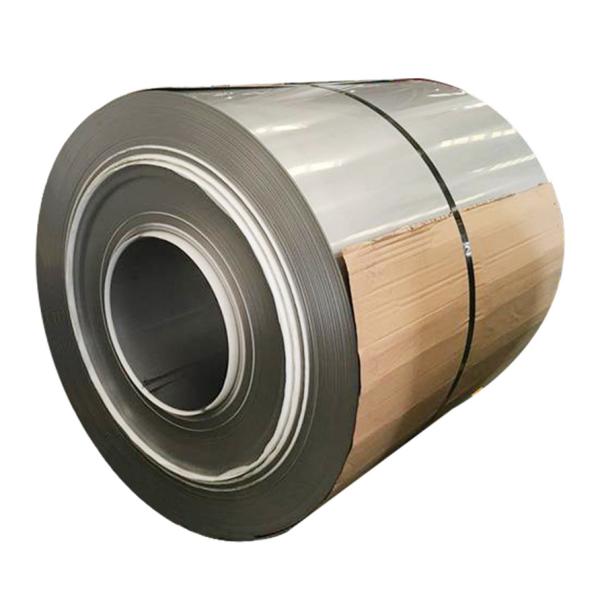

316L Stainless Steel Strip Coil 022Cr17Ni12MO2 Temperature Corrosion Resistant

Specifications

Brand Name :

BaoGang

Model Number :

304

Certification :

CE ISO

Place of Origin :

CHINA

MOQ :

negotiate

Price :

negotiate

Payment Terms :

Western Union, T/T

Supply Ability :

5000 Ton/Tons per Month

Delivery Time :

7-15 work days

Packaging Details :

Standard seaworthy export packing or as customer demands

Name :

Sus316 022cr17ni12mo2 stainless coil

Keyword :

022Cr17Ni12Mo2 Stainless Steel Coil

Length :

Customer request

Width :

100-2000mm, 100-2000mm

Application :

Building materials, furniture

Tolerance :

±1%

Description

316L Stainless Steel Coil 022Cr17Ni12MO2 Temperature And Corrosion Resistant Stainless Coil

022Cr17Ni12Mo2 is a molybdenum-containing stainless steel. Because the steel contains molybdenum, the overall performance of this steel is better than that of 310 and 304 stainless steel. Under high temperature conditions, when the concentration of sulfuric acid is lower than 15% and higher than 85%, 316L stainless steel has a wide range of properties. use. 022Cr17Ni12Mo2 stainless steel also has good resistance to chloride corrosion, so it is usually used in marine environments.

Specifications

Product Name	Corrosion Resistant Stainless Coil
Commodity	Austenitic, Ferritic, Martensitic, Duplex, Cold rolled, Hot rolled
Grade	201, 202, 301, 304, 304j1, 304l, 321, 309s, 310s, 2205, 409l, 410, 410s, 420, 420j1, 420j2, 430, 439, 409l, 443, 444, etc
Standard	ISO, JIS, ASTM, AS, EN, GB
surface	N0.1, N0.2, N0.3, N0.4, N0.5, N0.6, N0.7, N0.8, 2D, 2B, HL, BA, 6K, 8K, etc
Thickness	0.1-200mm
Width	10-2000mm
MOQ	5MT
Packaging	Export standard, seaworthy
Trade Term	FOB, CFR, CIF
Transport Type	Container, bulk and train
Loading port	Shanghai, Qingdao, Tianjin, etc
Payment terms	T/T, West Union
Delivery time	15-35 days after confirmed order

Chemical composition

Grade	C(Max)	Mn(Max)	P(Max)	S(Max)	Si(Max)	Cr	Ni	Mo	N(Max)	Cu/Others
304	0.08	2.00	0.045	0.030	1.000	18.00-20.00	8.00-10.50	-	0.10	-
304L	0.030	2.00	0.045	0.030	1.000	18.00-20.00	8.00-12.00	-	0.10	-
310S	0.08	2.00	0.045	0.030	1.500	24.00-26.00	19.00-22.00	-	-	-
316	0.080	2.00	0.045	0.030	1.000	16.00-18.00	10.00-14.00	2.00-3.00	-	-
316L	0.030	2.00	0.045	0.030	1.000	16.00-18.00	10.00-14.00	2.00-3.00	0.10	-
409	0.08	1.00	0.040	0.010	1.000	10.50-11.75	0.50	-	-	Ti=6x(C+N)
430	0.12	1.00	0.040	0.030	1.000	16.00-18.00	0.75	-	-	-

Surface Finished

SURFACE	CHARACTERISTIC	SUMMARY OFMANUFACTURING METHOD	APPLICATION
NO.1	Silvery white	Hot rolled tospecified thickness	Do not need to have aglossy surface use
NO.1	Lackluster	Hot rolled tospecified thickness	Do not need to have aglossy surface use
NO.2D	Silvery white	After cold rolling, heat treatmentand pickling are caried out	General materia,deep material
NO.2B	Gloss is stronger than NO.2D	After NO.2D treatment,the final light cold rlling is carried outthrough the polishing roller	The general material
BA	As bright as a sixpence	No standard,but usually a brightannealed surface with high re-flectivity	Building materials,kitchen utensils
NO.3	Rough lapping	Grind with 100-200#(unit)strop tape	Building materials,kitchen utensils
NO.4	Intermediate grinding	Polished surface obtained by grinding with150~ 180#stropabrasive tape	Building materials,kitchen utensils
NO.240	Fine lapping	Grinding with 240# stropabrasive tape	Kitchenware
NO.320	Very fine grinding	Grinding was carried out with 320# strop abrasive tape	Kitchenware
NO.400	The luster is close to BA	Use 400# polishing wheel to grind	General,timber,building,timber,kitchen appliances
HL	Hairline grinding	Suitable particle material for hairstripe grinding(150~240#)with many grains	Building.construction material
NO.7	It s close to mirror grinding	Use a 600# rotary polishingwheel to grind	For art or decoration
NO.8	Mirror ultrafinish	The mirror is ground with apolishing wheel	Reflector,for decoration

Mirror surface

Stainless steel mirror coil, also known as the mirror plate, with grinding fluid through polishing equipment on the surface of stainless steel plate polishing, so that the surface luminosity is as clear as a mirror. Stainless steel plate main use: mainly used in building decoration, elevator decoration, industrial decoration, facilities decoration, and other fields
