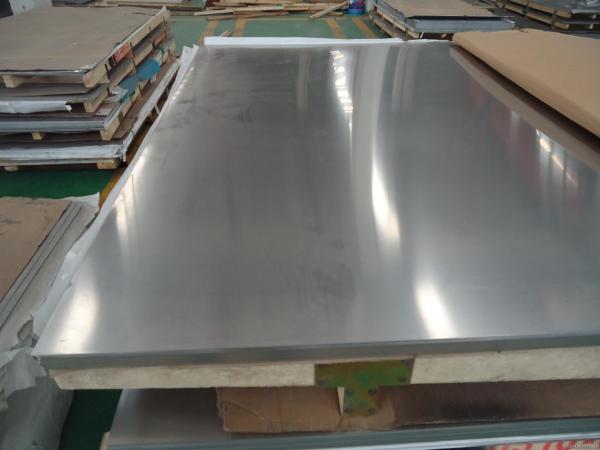

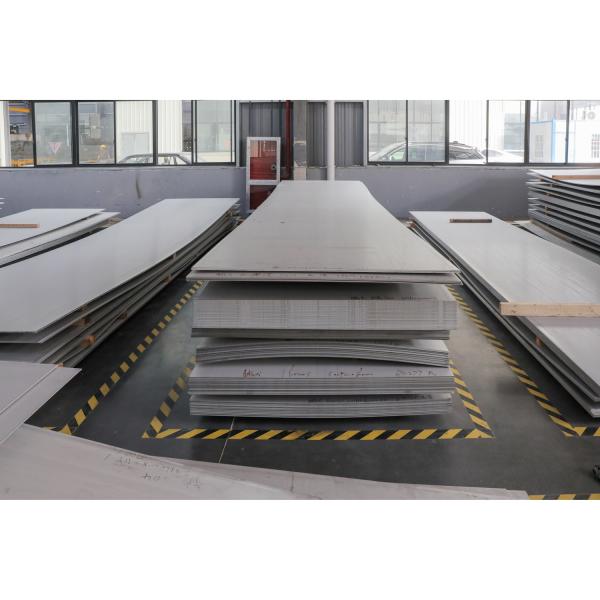

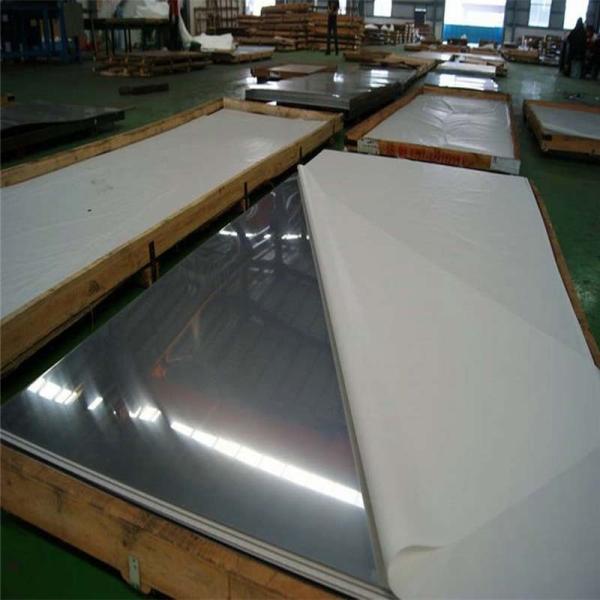

High Quality ASTM 304 304L 316l Stainless Steel Sheet Cold Rolled 304 Stainless Steel Sheet

Stainless steel sheets are widely used in below fields:

1: Chemical industry: Equipment, industrial tanks and etc.

2: Medical instruments: Surgical instruments, surgical implants and etc.

3: Architectural purpose: Cladding, handrails, elevator, escalators,door and window fittings, street furniture, structural

sections, enforcement bar, lighting columns, lintels, masonry supports, interior exterior decoration for building, milk or food processing facilities and etc.

4: Transportation: Exhaust system, car trim/grilles, road tankers, ship containers,refuse vehicles and etc.

5: Kitchen Ware: Tableware, kitchen utensil, kitchen ware, kitchen wall, food trucks, freezers and etc.

6: Oil and Gas: Platform accommodation, cable trays, sub-sea pipelines and etc.

7: Food and Drink: Catering equipment, brewing, distilling, food processing and etc.

8: Water: Water and sewage treatment, water tubing, hot water tanks and etc.

And other related industry or construction field.

304 Stainless steel is a common stainless steel material, the density of 7.93 g / cm³; also called 18 / 8 stainless steel, meaning contains more than 18% chromium and more than 8% nickel; high temperature resistance of 800℃, with high processing performance, high toughness characteristics, widely used in industrial and furniture decoration industry and food and medical industry. However, it should be noted that the food grade 304 stainless steel compared with the ordinary 304 stainless steel, its content index is more strict. For example: the international definition of 304 stainless steel is basically mainly containing chromium 18% -20% nickel 8% -10%, but the food grade 304 stainless steel is containing 18% chromium and nickel 8% chromium, allowing a certain range of fluctuations, and limit the content of various heavy metals. In other words, the 304 stainless steel is not necessarily a food grade 304 stainless steel

Among the common labeling methods in the market are 06Cr19Ni10, SUS304, among which 06Cr19Ni10 generally means national standard production, 304 generally means ASTM standard production, and SUS304 indicates daily standard production.

The 304 Is a universal stainless steel, which is widely used to make the equipment and machine parts requiring good comprehensive performance (corrosion resistance and molding performance). To maintain the inherent corrosion resistance of stainless steel, steel must contain over 18% chromium and over 8% nickel.304 Stainless Steel is a plate of stainless steel manufactured to American ASTM standards

physical property

Tensile strength b (MPa) 515-1035

Conditional yield strength of 0.2 (MPa) 205

Elongation rate: 5 (%) 40

Section shrinkage rate (%)?

Hardness: 201HBW; 92HRB; 210HV

Density (20℃, g / cm³): 7.93

Melting point (℃): 1398~1454

Specific heat capacity (0~100℃, KJ · kg-1K-1): 0.50

Thermal conductivity (W · m-1 · K-1): (100℃) 16.3, (500℃) 21.5

Line expansion coefficient (10-6 · K-1): (0~100℃) 17.2, (0~500℃) 18.4

Respetivity (20℃, 10-6 Ω·m2 / m): 0.73

Longitudinal elastic modulus (20℃, KN/mm2): 193

product standard

For 304 stainless steel, the Ni element in its component is very important, which directly determines the corrosion resistance of 304 stainless steel and its value.

The most important elements in the 304 are Ni and Cr, but they are not limited to them. Specific requirements are specified by the product standards. The industry commonly determines that as long as the Ni content is greater than 8%, and the Cr content is greater than 18%, it can be considered as 304 stainless steel. This is why the industry calls this kind of stainless steel 18 / 8 stainless steel. In fact, the relevant product standards have a very clear regulation for the 304, and these product standards for different shapes of stainless steel and some differences. Here are some common product standards and tests.

In order to determine whether a material is 304 stainless steel, it must meet the requirements of each element in the product standard, as long as there is a material that does not meet, it cannot be called 304 stainless steel.

1. ASTM A276 (Standard Specification for Stainless Steel Bars bar and Shapes profile)

304 C Mn P S Si Cr Ni

Requirement,% 0.08 2.00 0.045 0.030 1.00 18.020.0 8.0-11.0

2. ASTM A240 (Chromium and Chromium-Nickel Stainless Steel Plate sheet, Sheet sheet, and Strip strip for Pressure essels and for General Applications)

304 C Mn P S Si Cr Ni N

Requirement,% 0.07 2.00 0.045 0.030 0.75 17.519.5 8.010.5 0.10

3. JIS G4305 (cold-rolled cold-rolled stainless steel plate sheet, sheet sheet and strip strip)

SUS 304 C Mn P S Si Cr Ni

Requirement,% 0.08 2.00 0.045 0.030 1.00 18.020.0 8.0-10.5

4. JIS G4303 (Stainless steel bars stainless steel rod)

SUS 304 C Mn P S Si Cr Ni

Requirement,% 0.08 2.00 0.045 0.030 1.00 18.020.0 8.0-10.5

The above four criteria are just a few common criteria, in fact, ASTM and JIS have mentioned more than these 304 criteria. In fact, each standard of 304 requirements are not the same, so to determine whether a material is 304, the accurate expression should be said whether it meets the 304 requirements of a product standard. Material certificate should generally issue the following type of report:

Detailed standard specification comparison: until 2015-12-08

No. Standard / S30400 C Mn P S Si Cr Ni N Cu

1 ASTM A276/A276M-15 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

2 ASTM A959-11 0.07 2.00 0.045 0.030 1.00 17.5-19.5 8.0-11.0

3 ASTM A240/A240M-15a 0.07 2.00 0.045 0.030 0.75 17.5-19.5 8.0-10.5

4 ASTM A182/A182M-15 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 0.10

5 ASTM A193/A193M-15 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

6 ASTM A269/A269M-15 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

7 ASTM A312/A312M-15a 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

8 ASTM A320/A320M-15a 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

9 ASTM A403/A403M-15 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

10 ASTM A493-09(2013) 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-10.5 0.10 1.00

11 ASTM A554-15a (MT-304) 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

12 JIS G4303:2012 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-10.5

13 JIS G4304:2012 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-10.5

14 JIS G4305:2012 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-10.5

15 GB/T 20878-2007 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0

Position in stainless steel category table
