High Speed Plastic Automatic Foam Food Container Forming Machine With Touch Screen

The production line includes 3 units:
(1) PS foam sheet extrusion line: make PS foam sheet from raw material

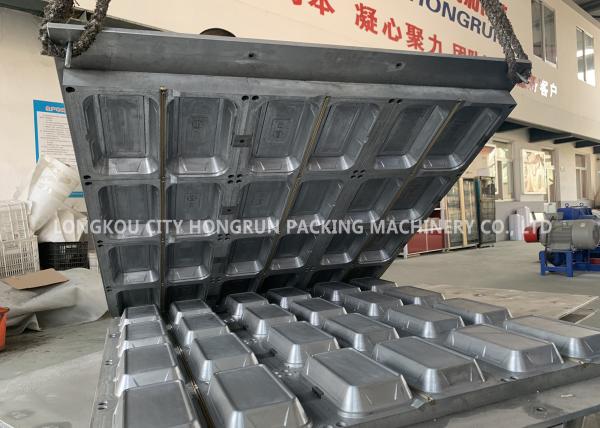

(2) Automatic Vacuum Forming and Cutting Integrated Machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc. (we can design mold according to customer requirements)
(3) PS Crushing and Recycling Machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again.
1. 105/120 PS Foam Sheet Extrusion Line
Product introduction:
This production line adopts double-screw foam sheet extrusion technology. PS foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc. by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.
Machine Specifications

PS Foam Sheet Extruder Included Bellowed Equipment List:
A. Stainless steel Mixer and feeder
B. Φ105 Extruder
C. Φ120 Extruder
D. Screen changer
E. Die head
F. High pressure metering pump
G. Shaping, cutting and cooling unit
H. Haul-off unit
I. Electrostatic elimination system
J. Double position winder
K. Electric control system

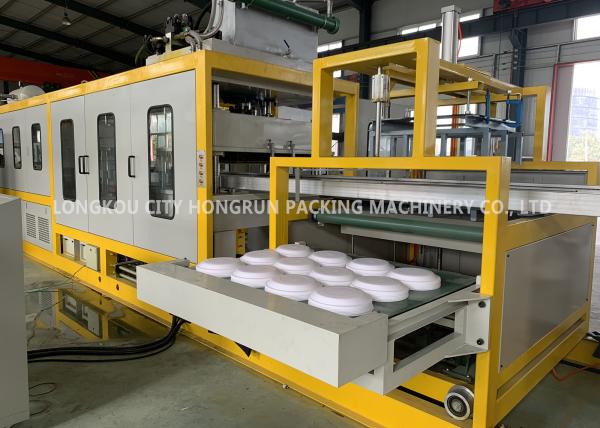

2. Automatic Vacuum Forming and Cutting Machine
Product introduction
This forming and cutting incorporated machine designed by our company is all-powerful. The main way is vacuum forming as well as press forming and synthetical forming. It can be used for forming kinds of PS foam sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. This machine mainly forms the PSP material which is used to produce food container, tray, bowl, etc. Forming, cutting, stacking is done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.
Main technical parameters

Automatic Vacuum Forming Machine Included Bellowed Equipment List:
A. Unwinding unit
B. Heating unit
C. Vacuum forming unit
D. Truncation unit
E. Auto stacking unit
F. Collecting products unit
G. Leftover material rewinding device
H. Heating electric control cabinet
I. Operating electrical cabinet

3.PS Crushing and Recycling Machine
Product Introduction
This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, and EPS etc.

Major Construction Features:

1. This machine adopts advanced PLC controlling system; It can automatically finish a series of tasks including feeding, heating, thermoforming, cooling, drawing off patterns, cutting and stacking.
2. It's equipped with a feeding device of a precision retarding electric machine, and geared by a double-lined needle-point chain, this machine can achieve both accuracy and stability during high-speed operations; What is more, it is also easy to make quick adjustments so as to make good use of the plastic sheets to reduce waste.
3. Equipped with a unique divided temperature control system and a precision remote infrared ceramic heater, this machine can get the most stable and even temperature, and at the same time achieve electricity saving.
4. This machine also possesses some special features: It can be manually pre-started, the switch console can be moved up and down according to needs, it can achieve a delaying vacuum state or a vacuum state for a second time, and it can be put on patterns for a second time, also it can draw off patterns through shaking. All these special features can help to accelerate the forming speed and ensure the quality of the products.
5. The major electronic devices and pneumatic components are manufactured abroad, which can ensure the stability, safety and durability of this machine.
