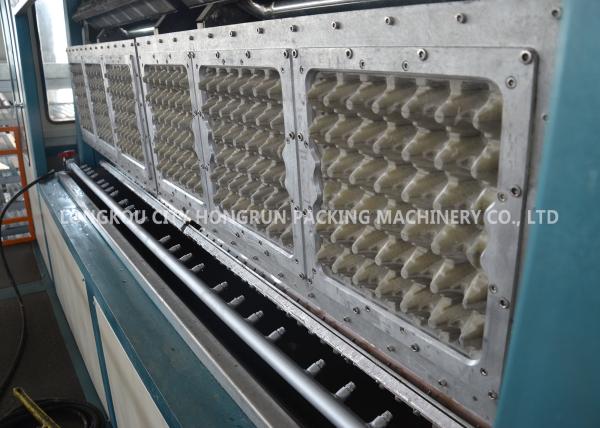

Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine
Specifications
Brand Name :
HONGRUN
Model Number :
HR-6000
Certification :
ISO9001, CE, SGS, BV, TUV
Place of Origin :
CHINA
MOQ :
1SET
Price :
negotiation
Supply Ability :
100SETS PER YEAR
Delivery Time :
90 days
Packaging Details :
Standard Export Packaging
Payment Terms :
T/T, L/C
Warranty :
1 Year
Voltage :
220V/380V
Power(w) :
200KW
Condition :
New
Product type :
Egg Tray Machine
Processing type :
Pulp Molding Machine
After-sales service provided :
Engineers available to service machinery overseas
Raw material :
Waste Paper,cartons and mixed waste paper.,old carton,Carton and Newspaper
Finished products :
fruit tray,egg tray,wine tray,egg carton,bottle tray
Color :
As you required
Name :
Used Paper Egg Tray Make Machine/egg Tray Machine Production Line
Type :
full automatic rotary type
Application :
Egg tray,bottle tray,fruit tray,Packing Industry
Labor force :
4-6 people
Production capacity :
6000 pcs/h
Description

Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine

Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine

Production Introduction

Egg Tray Machine (pulp moulding machine) uses waste paper as raw material and it can produce different kinds of products according to your requirements,such as egg trays/dishes ,egg cartons/boxes,fruit trays,industrial trays,seeding trays and small products packages ,etc. The products produced by our machine are up to the environment requirements.

Equipment Process
1.Pulping system
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system.
Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator
2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.
4. Finished product auxiliary packaging
(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor

Technology Parameters

Model

HR-6000

Forming width

410-710MM(460-760MM materials)

Forming length

600-1220MM

Forming height

200MM

Thickiness of materials

0.2-1.5MM

Production power

220-500times/hour(according to products)

power

380Vs/220Vs/50Hzs(Three mutually four lines)

Furnace power

18-35KW

Required to install air pump

20HP

Mechanistic Dimensions

L6800*W1600*H2650MM

Net weigh

3000KG

Some of the Advantages

1.the machine is easy to operate

2.it is environmental protection

3.it only need a small workshop

4.the use is great, you just change the mould , you can get all kinds of trays

5.it has a small invest

6.etc

Pulp Moulding Carton Egg Tray Machine , Fruit Tray Forming Machine

FAQ

1.What kinds of machines do you produce?

We produce

(1)pulp moulding machines,egg tray machines,egg packing machines,egg box/carton machines,fruit tray machines,industrial machines, seeding tray machines .and the whole production line etc

(2)all kinds of moulds ,such as egg tray moulds,egg box/carton moulds, fruit tray moulds,seeding tray moulds,industrial moulds etc.

(3)drying line

2.What capacity per hour do you offer ?

Our machines’ capacity is from 2000-6000pcs/hr.

3.Do your products come with a warranty ?

Yes , we have one year warranty according the international practice.

4.Can I customize this kind of product from your factory?

Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.

5.Can you give me a low price?

Yes,we are the manufacturer, at the same moment we guarantee the quality, we will give you a lower price.

6.How to install?

The seller dispatches engineers to buyer’s factory. Buyer should help installation, Seller is responsible for installation, testing and training for 30 days, the buyer should insure the safety of the engineers

Payment

1.TT(it is our main payment)

2.any other payment,(if customers want any other payments ,we can agree)
