Specifications
Brand Name :
Shenghong
Model Number :
SH160912-07
Certification :
CE ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Controls :
PLC
Roller :
Antirust Treatment
Yield Stress :
230-300; 300-350
Certificate :
CE, ISO9001:2008 AAA credit
Inverter :
YASKAWA
Servo motor :
YASKAWA
Description

380 voltage CE Approved steel forming machine / cold roll forming machine

Main components brand

Inverter YASKAWA
PLC Siemens
Encoder Omron
Touch screen MCGS
Other electrical appliances Schneider
Servo motor YASKAWA



Technical parameter:

Name Item Specification
Coil requested Material Color steel, galvanized steel
Thickness 0.3-0.7mm
Tensile strength 235Mpa
Decoiler(1 unit) Type and weight capacity Manual decoiler, 5T
Inner diameter 498-508mm
Outer diameter Max:1800mm

Rollforming machine
(1 unit)

 Rolling speed 15m/min
Motor 7.5KW, 3phase, 60Hz, 380V
Rolling step 17
Driving system Chain transmission
Structure of machine body Entire wall steel structure
Material of roller 45# steel, chromed thickness0.05mm
Diameter of shaft 80mm
Dimession Abt.13m*1.8m*1.6m
Weight Abt.13T

Electric control cabinet
(1 unit)

 Main component PLC, frequency convertor, touching screen, encoder
Cutting and length measurement Automatic stop to cut, encoder
Brand From Japan, can be chosen by client
Hydraulic station (1 unit) Power and strength 3.5KW, 16Mpa
Cutting machine(1 unit) Material of blade GCr12 mov steel, heatment and hardness up to HRC58-62
Cutting type Hydraulic cutting

Run out table
(1 unit with 4pics)

 Size 1.2m*0.7m*1.2M

Features

This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the
material plate.
The products of it are used as the roof tile and wall panel outside of building, to increase the
beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you
can set several different data on the computer control cabinet according to your own need. After
pressing the button "Confirm", the machine can produce the panel automatically according to the
set data. The molding plate surface smooth and not easy to be marked when it is being stamped.
So it is easy to install.
The product conforms to National Steel Construction Building Standard.

Working flow:

Manual decoiler----Feeding&guiding----Rollforming----hydraulic cutting----Run out table

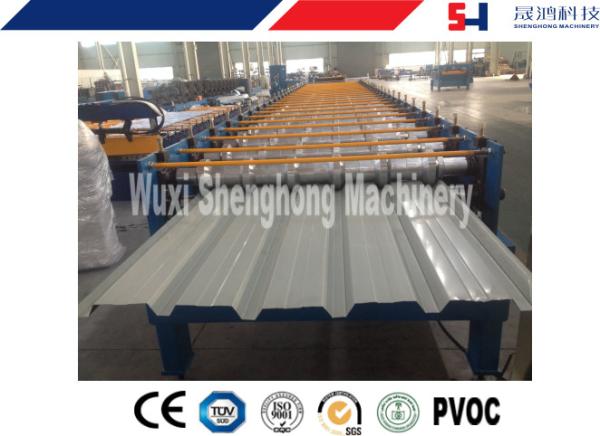

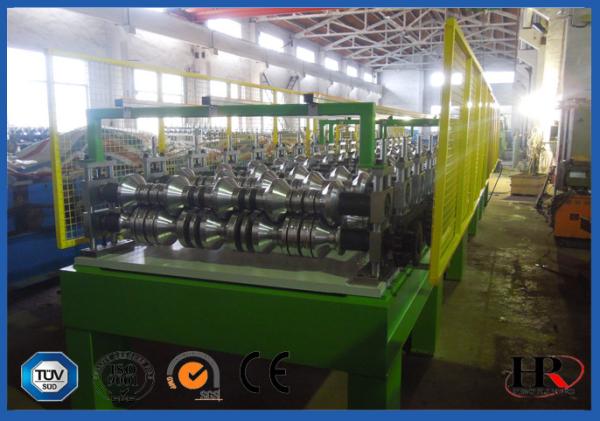

Machine Show

380 Voltage Steel Cold Roll Forming Machine , Sandwich Panel Making Machine380 Voltage Steel Cold Roll Forming Machine , Sandwich Panel Making Machine
