PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
Specifications
Brand Name :
Shenghong
Model Number :
SH160912-08
Certification :
CE ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS / year
Delivery Time :
40 days after payment
Packaging Details :
Container
Controls :
Mitsubishi transducers,
Roller :
Antirust Treatment
Yield Stress :
230-300
Certificate :
Soncap, AAA credit
Cutting tool material :
Cr12, Heat treatment;
Forming speed :
Approx. 15m/min;
Description

PLC frequency conversion controlled cold roll forming machine for making roof tile

Cold Rolling Mills

Feeding section with guide;

Gear/Sprocket driving;20-step to form

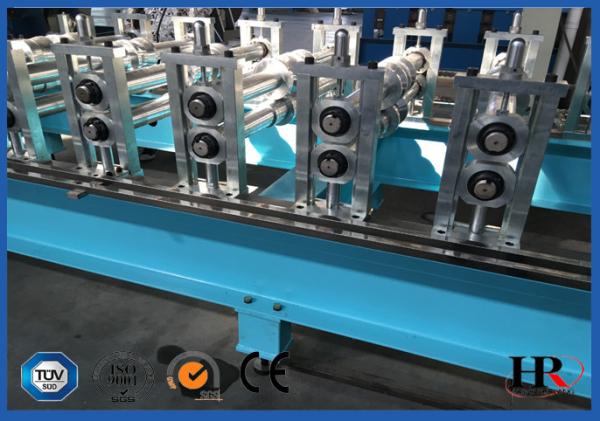

Rollers manufactured from 40Cr, CNC lathes, hard Chrome Coated

Shafts Diameter=75mm, Precision Machined

Main motor =7.5 KW, Frequency speed control

Forming speed:Approx. 15m/min;

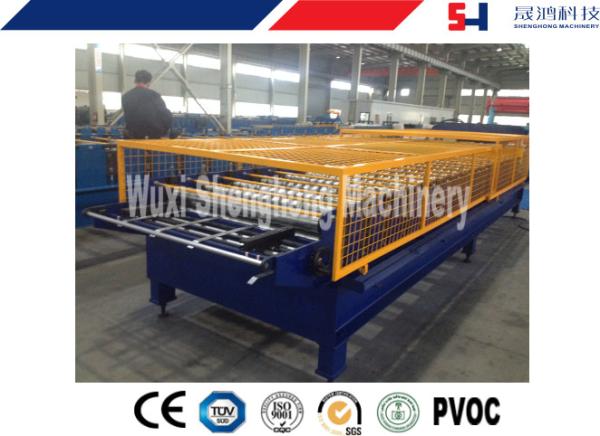

Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside

Hydraulic Cutting Device

Stop to cut, Post cut, No Blanking cut

Pump motor =4.0KW

Cutting tool material : Cr12, Heat treatment;

Explanatory Note Description

Manual Un-coiler[1] : One set. The price of manual un-coiler is included in the FOB Price.

Diameter of Main Shaft: 95 mm; Rollers Station: 14 Rows [2] : The diameter of main shafts are bigger than older type, and they will be more practical, more efficient and more durable! The 14 rows of rollers station is more reasonable than older type, and make the machine has a longer service life and make the products have a more stable performance.

Machine Body: Electrostatic Spraying Treatment[3] : Their surfaces are not coated with paint. First, they will be treated by Sand Treatment Equipemnt, and then be sent to Electrostatic Spraying Treatment Room, under the high temperature (over 260℃) to finish the final spraying treatment. So, They will have a good waterproof and rust protection performance, and look more beautiful.

Hydraulic Station Structure: 300mm steel welded; Four Pole Structure[4] : The four pole structure will make the cutter has a more stable performance when cutting the panel, controlled by Hyd System, and with better accuracy. This is own special devising.

Electrical System: PLC and HMI touch Screen (Taiwan Delta)[5] : It can be modified as per customers requirements, such as Siemens, and the operation system language can be specified, such as English, French, Russian and so on.

Quick Details

1. CE, BV, SGS certificates
2. professional production
3. powerful workshop
4. competitive price
5. responsible service

Thickness: 0.3-1mm or as design Quality system: CE, ISO, SGS
After-sales Service Provided:

Engineers available to service

machinery overseas

 Main motor Power: 5.5KW
Customize: as your demand Material of blade: Cr12
Production: high quality and low price Diameter of Principal Axis:

70mm, 80mm,

85mm, 95mm
Voltage: 380V or other Production Capacity: 8-12m/min

Technical Parameters

Main moter power 4KW
Hydraulic station power 3KW
Hydraulic oil pump CB-E310
Sprocket P-25.4
Roller station 15
Yield strength 32MPa
Diameter of principal axis 80MM
Material of roller 45#steel hard chrome plating
Processing speed 6-8m/min
Thickness 0.3-1mm
Installation dimension about(L*W*H) 7.5*1.5*1.5M
Total weight 4.2T
Equipment parts:includes:roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,uncoiler .

Machine composition:

5Ton*1250mm Hydraulic un-coiler

Hydraulic system expand coil inner hole, Pump motor: 4KW

Frequency Inverter to regulate turning speed, Motor: 2.2KW

Link-connect expanding system

Automatic stopping device, Load capacity = Max.5Tons

Coil Inner-diameter= 510±30mm, Coil width = Max.1250mm

Dance arm assistance for coil-turning speed control

Manual Pre-shearing device (Un-powered)

Smart cut control, to cut off the end of the final piece of sheet only

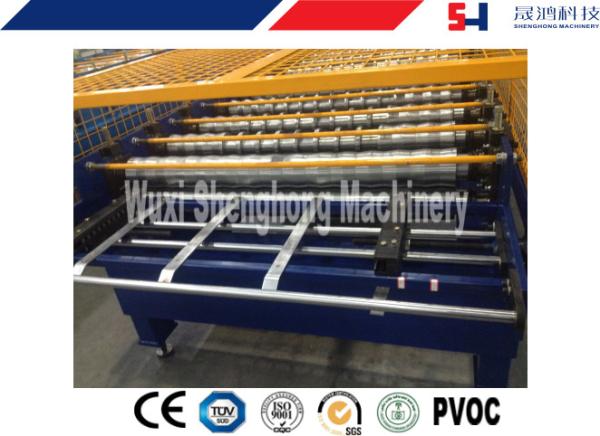

Machine Show

PLC Controlled Precision Cold Roll Forming Machine For Roofing Tile MakingPLC Controlled Precision Cold Roll Forming Machine For Roofing Tile Making
