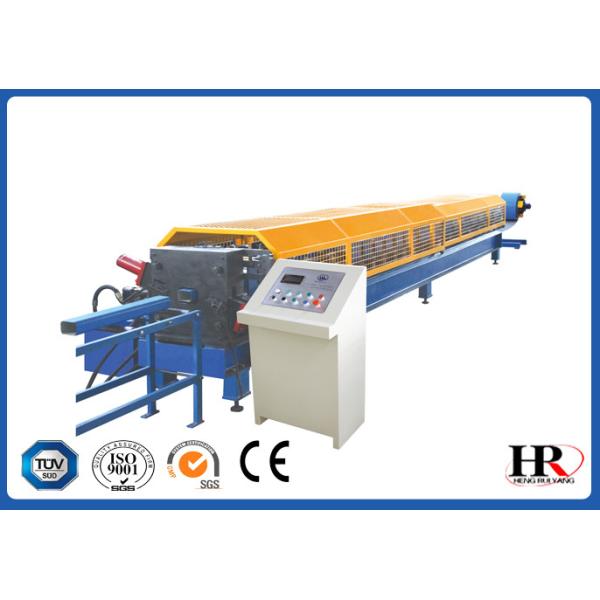

High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
Specifications
Brand Name :
Shenghong
Model Number :
SH2016-09-11-02
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS / MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
machine model :
C purlin roll forming machine
advantages :
reasonable straightening device and non-stop shearing device
Thickness :
max 3mm
Raw Material of Yield strength :
Q235
Description

Cold Roll Formed Lip channel in shape of hat section

We are making Cold Roll Formed Lip channel in shape of hat section, U lip and some are special shape in Cold roll forming method all this sections are has many uses specially in overhead conveyor system storage system and much more

We have specialty to make lip channel and double lip channel in exact span for conveyor tracking rail in India most of conveyor manufacture are using over section successfully

Applications of lip channel:

1. Overhead Conveyor track channel

2. Storage system beams

3. For special strength in pre engineering building etc.

Features

1. As a part of C purlin roll forming machine, pressing arm unwinding machine can prevent the loss of the coil.
2. Equipped with a reasonable straightening device, the machine can ensure the finished channels without twisting or sideways bending.
3. The shovel head device of this channel forming machinery will help to send coil sheets into the straightening device.
4. The machine is controlled automatically so that there will not be any safety problem.
5. We have designed a non-stop shearing device for improving the working performance of the machine.
6. We can design punching as per customer's requirement although it is not shown on this layout drawing.

Technical Specifications for C purlin Roll Forming Machine

Raw material Item Parameter Remark
Material type hot rolled steel Special material shall be tested before finalization
Thickness Max. 3 mm Big range of thickness may cause forming dimension tolerance
Yield strength Q235 -
Production Profiling section As per customer's requirement The basic element for quotation
Machine material Roller material Gr12 -
Shaft material 40Cr HRC45
Rolling station wall material QT470 -
Shearing blade material Cr12 MoV -
Line speed Roll forming speed 10 m/min -
Forming stations Quantity of rolling station 12 stands Cassette design concept is advised
Transmission Gear box - -
Straightening Roller straightening 4 rollers -
Shearing fly shearing - Precision±2mm/6000mm
Product supporter Discharging table 6meters/9meters/11.8meters As per customer's requirement
Hydraulic system Valve and pump - Brand can be optional
Controller system PLC - Mitsubishi or same level
Butt welding Cut and welding platform Argon welding customer supply manual welding machine(option)
Coil car Coil car 3t/5t option

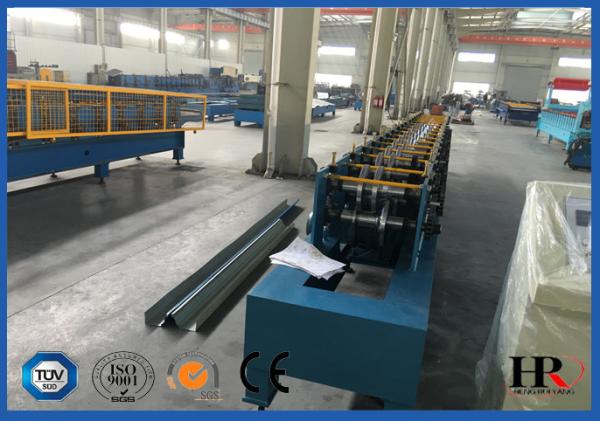

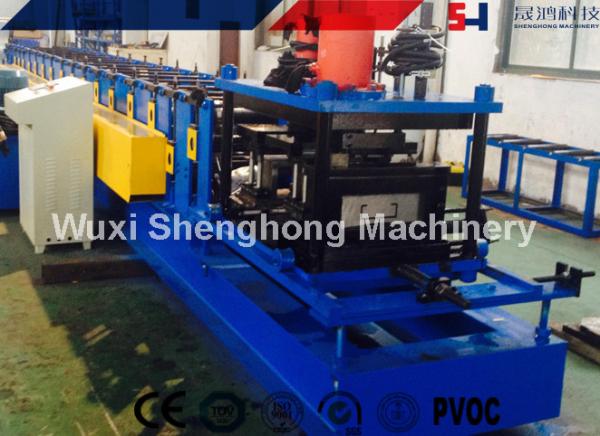

Machinery Photos

High Speed Cold Roll Forming Machine Making Lip Channel With Hat Shape Section
