Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
Specifications
Brand Name :
Shenghong
Model Number :
SH16-09-11-02
Certification :
CE ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Use :
door
Production Capacity :
8-12m/min
Power(W) :
5.5KW
Voltage :
380V 50Hz 3phases or customized
Dimension(L*W*H) :
1200*1700*1500
Weight :
5T
Description

Window and Door Frame Machines

Window and Door frame Rollforming machines are specially designed to produce steel window or door frames that are strong and durable.

Our Profile Roll forming machines are made up of hydraulic decoiler with breaking device, leveller, servo roll feeder, online multi station hydraulic punching equipment, rollformer with tooling, hydraulic cut-off machine, run out table and automatic stacking device, and many more.

Our company is recognised as a reliable supplier of Door Frame Roll forming Machines, our customer base is growing due to the excellent quality of our machines at leading market prices.

Product Description

Steel door frame roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machineis a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.

Drawing for you reference:

Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting

Processing material: colored steel plate, galvanized plate, or aluminium plate

Material thickness: 0.8---2.5mm

Material hardness: 550 mpa---350 mpa

Material width: 200mm(according to the drawing)

Formed width: 101.6mm (according to the drawing)

Forming speed: 12m/min

Working speed :8m/min

Uncoiler System

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity:3T

Uncoiling width:500mm

Inner diameter: 450-550mm

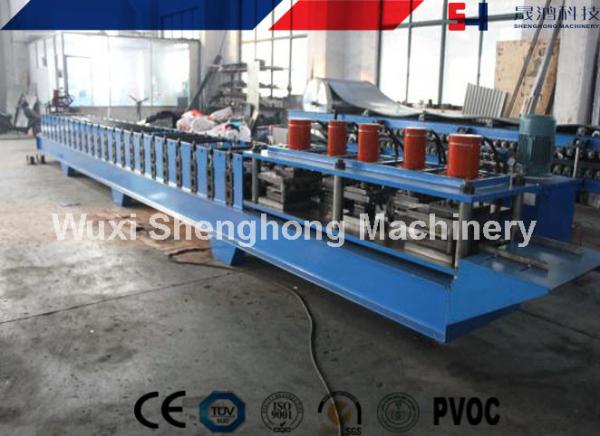

Main Roll Forming System

Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting

 Feature : Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded

sheet structure, motor reducer drive, chain transmission,

roller surfaces polishing, hard plating,heat treatment and galvanized treatment .

The polished surface and the heat treatment towards the molds also can keep the

molding plate surface smooth and not easy to be marked when it is being stamped.

Length of the main part: about 3500*900*1000

Weight of main part: 3 tons

Voltage : 380V 50HZ 3Phase

Roller fixer : Guide column

Frame : 400 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts: 45# steel with tempering

Diameter of shafts: φ70mm

Number of rollers : 20*25 rollers

Main power: 7.5kw(cycloidal planetary gear speed reducer)

Hydraulic power : 3kw

Shearing Mechanism

Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting

Feature : Ensure stability, precision and cutting speed

FunctioMaterial of blades: Gcr12 quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion systme

Stroke switch : non-contact photoelectric switchn :It adopts the hydraulic drive and automatic location

to decide the dimention and cut the

target products Automatic cutting controlled by PLC
Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting Components:It contains one set of cutting tools, one hydraulic tank and one

Other drawing for you choose:

We can desgin the machine as your requirement. With a profile drawing, we will give you a popular

proposal for your reference. Here are some profile draiwing we can make.

Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting

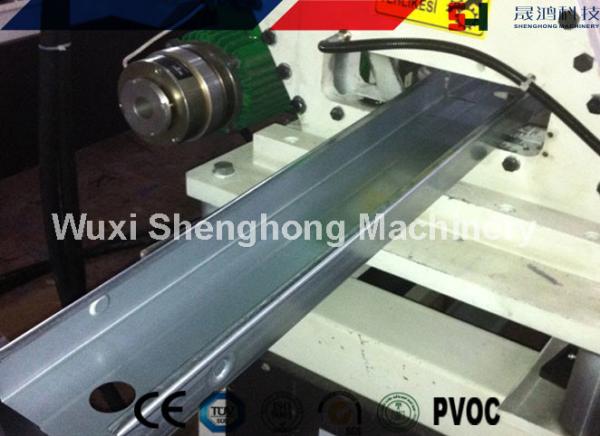

Machine detail picture

Metal Window / Door Frame Cold Roll Forming Machine With Hydraulic Cutting
