Specifications
Brand Name :
Shenghong
Model Number :
SH16-06-05-17
Certification :
CE/ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Control system :
Siemens PLC control
Power(W) :
5.5KW
Production line speed :
10-30m/min
Voltage :
380v(or as your required)
Dimension(L*W*H) :
7.5m*0.8m*1.6m
Description

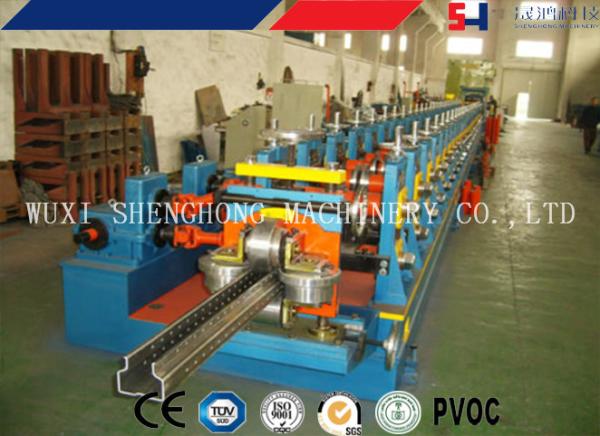

Auto Rack Roll Forming Line Grape Frame Metal Forming Equipment

Product Description:

The Angle Steel Roll Forming Machine can produce different kinds of angle steels.We can produce thickness of 0.3-4.0mm steel coils.The number of roll forming stations is according to your profile drawing.We can design the machine and flow chart according to your profile drawing and requirements.We also have servo feeding system and hydraulic punching system which can satisfy your complex punching requirements.

Raw material

Material type 1.0-2.0mm steel coil
Thickness of coil 1.0-2.0mm

Machine

Main power 5.5KW
Dimension 7.5m*0.8m*1.6m
Forming speed 10-30m/min(not including cutting)
Roller stations 14 sets(as profile drawing)
Control system Seimens PLC control with touch screen
Roller material GCr15,CNC machining,chromed
Transducer Yaskawa
Encoder Koyo
Other components Schneider
Structure Column structure

Working process

A.Decoiler........................................................................To load and uncoiling material

(The normal standard is Passive Decoiler,but we also have Electric Decoiler and Hydraulic Decoiler for you to choose,they use to hold the heavy material.)

B.Feeding Applicator...........................................To feed the steel into the roll forming

C.Roll Forming Unit........................................................................To roll form as profile

D.Hydraulic Cutting.......................................................To cut sheets as desired length

(We also have non-stop hydraulic cutting system for high efficiency.)

E.Output Table..................................................................Support the finished products

(For this machine,we also have hydraulic punching system according to your punching profile.)

AFTER SALE SERVICE

- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.

- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.

- Training time: 5 days.

- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.

-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
