High Speed Door Frame Cold Roll Forming Machine With Hydraulic System
High Speed Door Frame Cold Roll Forming Machine With Hydraulic System
High Speed Door Frame Cold Roll Forming Machine With Hydraulic System
High Speed Door Frame Cold Roll Forming Machine With Hydraulic System
High Speed Door Frame Cold Roll Forming Machine With Hydraulic System
High Speed Door Frame Cold Roll Forming Machine With Hydraulic System
Specifications
Brand Name :
Shenghong
Model Number :
SH16-06-05-07
Certification :
ISO and CE
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
thickness :
0.5-1.2mm
Production Capacity :
25m/min
Power(W) :
50kw
Roller Material :
GCr15
Servo feeding motor power :
2.2kw
Description
High Speed Door Frame Cold Roll Forming Machine With Hydraulic System
Product Description

Our Dynamo Series machines are featured with close loop controlled fly shear and fast punching machine, can continuously run a product with accuracy and speed. The leveler& loop control are generally inclusive to ensure feeding and punching speed and accuracy.

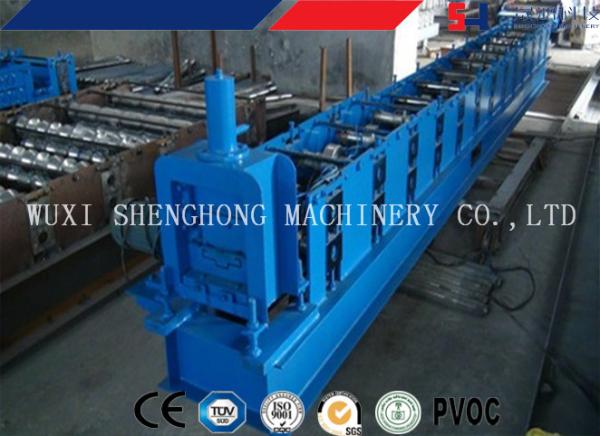

This door frame forming machine is the roll forming machine for steel sheet cold-form industries. It continuously forms the steel sheet according to customer’s requirement with automatic press and fly cut to length.

Machine has high forming speed, low noise, stable transmission and easy operation.

Parameters:

NO Item Parameters Remark

1

 Suitable material Type Cold Roll
Thickness (mm) 0.8-1.2mm
Grade 235Mpa
Coil Width (mm) 247mm
2 Producing Speed (m/min) Variable18-25m/min Including cutting&punching time
3 Rollformer Main Motor Power(KW) 11Kw For reference only
4 Hydraulic station power for punching and cutting (KW) 22Kw For reference only
5 Leveling motor power(KW) 3kw For reference only
6 Decoiler hydraulic power(KW) 2Kw For reference only
7 Servo feeding motor power(KW) 2.2 kw For reference only
8 Servo flying shear motor power 2.2 kw For reference only
9 Hydraulic cutting power(KW) 11kw For reference only
10 Total power About 53kw 380V 50HZ 3phase

power source according to client’s final confirmation

Equipment List

Name Model/Name Quantity
1 5 Ton Hydraulic Un-coiler 1 set
2. Leveling device 1 set
3 Loop unit 2 sets
4 Feeder 1 set
5 Punching equipment 1 set
6 Roll Forming equipment 1 set
7 Post-cutting device 1 set
8 Rack 1 set
9 Hydraulic system 2 sets
10 Electrical system

1 set

Working process

De-coiling →Leveling →Guiding system → Punching → Straitening →Roll forming → Cut to length → Run Out Table

Item Name: Door frame roll forming machine
Material: Cold Roll or GI
Line Speed Up to 25m/min
Material Coil width Per the design of product
Power 380V 3phase or Per the client's request
Gram Weight: Around 15 tons
Delivery time: 90~120days
MOQ: 1 Set
Delivery FCL
Warranty 1 year

After-sale Serive

The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
Training time: 5 days.
Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
