Octagonal Pipe Cold Roll Forming Machine , Rolling Shutter System
Octagonal Pipe Cold Roll Forming Machine , Rolling Shutter System
Octagonal Pipe Cold Roll Forming Machine , Rolling Shutter System
Octagonal Pipe Cold Roll Forming Machine , Rolling Shutter System
Octagonal Pipe Cold Roll Forming Machine , Rolling Shutter System
Octagonal Pipe Cold Roll Forming Machine , Rolling Shutter System
Specifications
Brand Name :
Shenghong
Model Number :
SWL151234-168
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Type :
Rolling shutter tube Forming Machine
Thickness of material :
12 meters / min
Sheet Thickness: :
0.6 to 1.2mm
Line size (Lx w x h) :
6000 mm×1000 mm×1100 mm
Description

Octagonal Pipe Cold Roll Forming Machine , Rolling Shutter Machine

Rolling shutter Octagonal tube pipe for door and windows related information


Rolling shutter door & windows Octagonal tube

A=40mm diameter tubes: 0.5-0.6mm thickness;
A=60mm diameter tubes: 0.6-0.8mm thickness;
A=70mm diameter tubes: 1.0-1.2mm thickness;
The up mentioned three tubes, 40mm, 60mm, 70mm are the typical style in the world market. Custom sizes are welcome!
The round shape tube or octagonal tubes can be selected by client.


Rolling shutter Octagonal tube Roll Forming Machines Main Parameters

Line structure

Portal-type frame style, HT200 steel

Forming Roller Stations:

22 Stations

Forming Roller shaft:

φ60mm

Forming rollers

GCr15, Quenching, hardness HRC56-62º

Forming Speed:

12 meters / min

Main motor:

7.5kw

Capacity Length:

up to 9999 mm (optional)

Material of Sheet:

Soft Quality (Annealed) Galvanized Sheet

Sheet Thickness:

0.4 to 0.6 mm

Cutting mode:

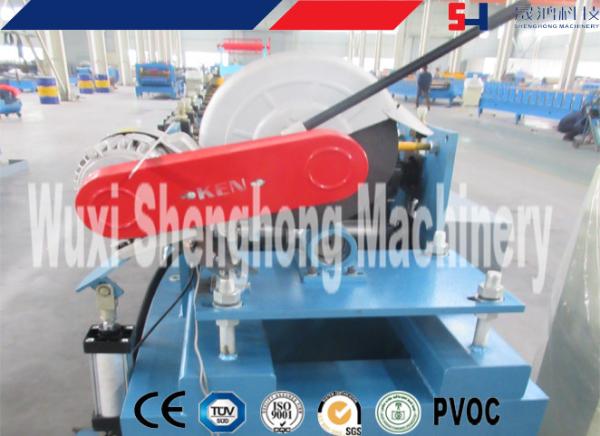

Tracing cutting system with round saw or hydraulic cutter is optional.

Total Gross Weight:

About 6000kgs

Line size (Lx w x h)

6000 mm×1000 mm×1100 mm

Rolling shutter Octagonal tube Roll Forming Machine Components


Rolling shutter octagonal tube Roll Forming machine is consisted of de-coiler, material feeding flatting device, punching system, roll forming machine, straightening device, tracing cutter with round saw, run-out table, etc.

Roll Forming machine for manufacturing Octagonal & round Tube of Rolling Shutter Windows and Doors system

The round or octagonal rolling tube is for winding up the rolling shutter, made in various shapes.

Our mission is to provide excellent custom octagonal rolling tube roll forming machines and tools for professional rolling shutter door and windows installation and quality product at competitive prices, such as Octagonal and round pipe forming machines for Residential tube Machines and Commercial tube Machines

Machinery Show
