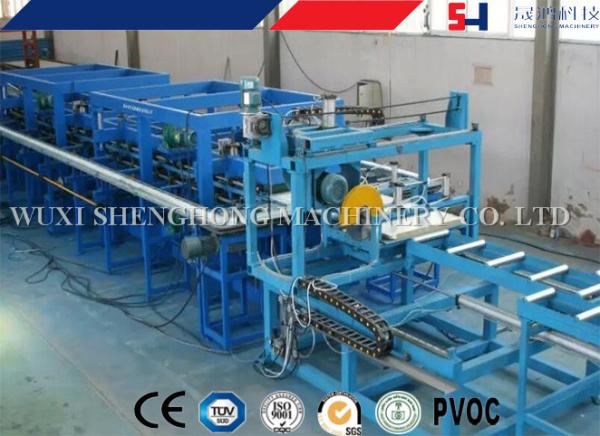

Automatic 3D Panel Roof Tile Cold Roll Forming Equipment 3KW-20.5KW
Automatic 3D Panel Roof Tile Cold Roll Forming Equipment 3KW-20.5KW
Specifications
Brand Name :
Shenghong
Model Number :
SH160514-13
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Pe film
Use :
Roof, Roof Tile
Production Capacity :
8-12m/min, 6-8m/min
Power(W) :
3KW-20.5KW
Voltage :
380V 50Hz 3phases
Warranty :
1 Year, 12 months
Description

INTRODUCTION:


Technical Data of PU Sandwich Panel Production Line, Continuous PU Sandwich Panel Making Machine

EPS Sandwich Panel Spec
Panel thickness Mini thickness
50mm (wall panel)
Max. thickness 200mm(exclude corrugated sandwich panel)
Steel Sheet Spec
Thickness 0.4-0.7mm color steel sheet
Width 1250mm (we can design according to buyer’s requirement)
Max. coil weight 5 tons
Inner Dia. of coil 508mm
Whole Line Spec
Whole line dimension about 35000mm × 2500mm × 3000mm
Total weight About 18t
Working speed About 5-7m/min (adjustable)
The output 1500m2-2000m2/8hour
Control mode PLC and converter
Total power About 28Kw (as per final designing)
Power required 380V/3phase/50Hz or as per customer's requirement.
Air pressure 0.7Mpa (for buyer to prepare)
Suitable working temperature About 25 degree

Related Pics:

Packing System:

1.Tighten to container with steel wire rope and welded angel iron.

2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)

3.PLC control system and moter pump are packed with water-proof plastic coverage.

Product tags

roof panel roll forming machine

,

panel roof sheet machine

,

ppgi roofing sheet machine
