Specifications
Brand Name :
Shenghong
Model Number :
SH160514-12
Certification :
CE & ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Pe film
Production Capacity :
8-10m/min
Use :
Roof
Power(W) :
5.5KW
Voltage :
380V 50Hz 3phases
Steel Sheet Thickness :
0.2-0.8mm or 0.2-1.2mm
Description

INTRODUCTION:

The EPS sandwich panel roll forming machine producing precess:

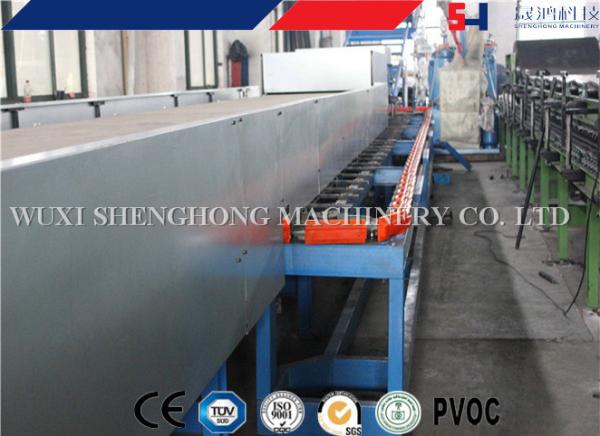

Decoiler--- Laminating machine(cutting)---Roll forming machine---Worming machine--- Foaming machine---Double-belt laminating machine---Cutting part---Cooling system---stack and packing

Product Description

Box coil plate is cut in the transverse shear unit of length steel plate, the general packing boxes are loaded into the form, 0.8MM thickness requirement is COLD ROLLED SHEET, size is 1M X 2M means, 0.8mm thick, 1m wide, 2m long cold-rolled plate. Commonly known as the hot box plate is sized packing boxes of hot-rolled sheet.

Name Parameters QTY

Raw material

Material:Colored steel

Coil thickness:0.4~0.6mm

Coil weight:Max 5T

Coil width: Max 1250mm

Coil inner diameter:ø508mm

Coil outer diameter:ø1100mm

Un-coiler

Bear weight:5T

Mandrel expansion :465 – 515 mm

 2

Broach

Effective cutting width:1300mm

Cutting thickness:0.4-0.6mm

 2
Laminating machine

PVC coil outer diameter:300mm

PVC coil inner diameter:70-82mm

Maximum coil width:1250mm

 2
Beading Equipment

Speed:10m/min

Power:2.2kw or according to the profile

Diameter of roller:according to the profile

Power supply:motor

Material of roller:l 40Cr quenched and tempered, chrome

 2
Roll forming

Frame:Cantilever structure

Speed:10m/min

Power:4kw up, 7.5kw down

Shaft diameter:50 mm

Distance roller head:350mm

Rollers: 11 up, 18 down

 2
Rock wool delivery device

Motor Power:2*1.5Kw

Speed:8m/min

The maximum transport width:1200mm

 1
Dispensing Systems

Effective volume:150L

Unit motor power:10KW

 1
Tank with Stirrer

Effective volume:150L

Unit motor power:10KW

 1
Roll forming machine

Length:10mm

Width:1200mm

Lifting speed:200mm/min

Drive motor power:2.2Kw*4

Lifting motor power:1.5Kw*4

Speed:10 m/min

 1
Cutting part

Cutting motor power:7.5Kw

Lateral movement motor power:1.1 KW

Traversing speed:150 mm/s

Cutting width:1300 mm

Cutting error:±2mm

 1
PLC control system
