Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
Specifications
Brand Name :
DINGBO
Model Number :
DBRF
Certification :
CE ISO SGS
Place of Origin :
shanghai,China
MOQ :
1 Set
Price :
negotiation
Supply Ability :
20sets/month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Payment Terms :
L/C, T/T, Western Union
Roller stations :
18 roller stations
Control system :
PLC with touch screen
Material thickness :
0.3-0.8mm
Raw material :
Color Steel
Forming speed :
65mm
Size of :
About 9500×1800×1500mm
Description

Ridge Capping Machine

Product Descriptions

1.The ridge cap roll forming machine is an economical,resource-based, and green new building material. Its production materials are widely available in various places, and the price is low. It is a replacement product of asbestos tile and color steel tile. The market demand is large and has broad market development prospects.

2.This type of roll forming machine has advantage including beautiful, classical appearance and grace taste.Widely Used Color Steel Metal Roof Ridge Cap Tile Cold Roll Forming Making Machine Application.

Version to design

Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed

Working Flow

Uncoiler → Leveling → Punching → Roll forming → Hydraulic Cutting → Output table

Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed

Product Parameters

Roller material

45#forge steel ,chrome coated 0.05mm

Shaft material

High Grade 45# Steel

Cutting blade material

Cr12,quenched 58°-62°

Main shaft diam

65mm

Weight

About 4.5 T
Control System

PLC with touch screen
Length measurement Encoder

Hydraulic cutting

3 Kw(Depend on final design)

Condition

New

Delivery time

Shipped in 30-70 days after payment

Main Components

No. Name Qty
1 Hydraulic Decoiler 1
2 Main roll forming machine 1
3 PLC Control box 1
4 Hydraulic station 1
5 Output table 2

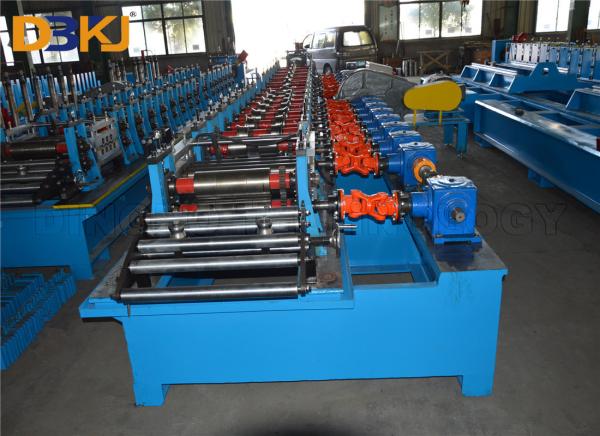

Machine Pictures

Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed

Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed

Application Pictures

a.The ridge tiles are rich in color, classical and elegant, and are used in glazed tiles to add a finishing touch to modern architecture.

b.It has light weight, high strength, good waterproof and convenient installation. Special materials or sheet thickness, the machine can be customized according to customer requirements.Can be widely used in villa roofs, urban flat slopes, tourist scenic areas and so on.

Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed

Roofing Making Machine Ridge Capping Roll forming Machine With 10-15 m/min Forming Speed
