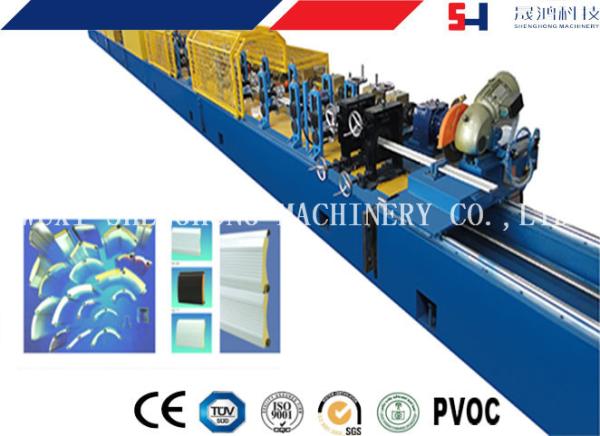

Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Window / Doors Foam Insulated Shutter Roll Forming Machine 5.5kw 70 - 80 kg / m3
Specifications
Brand Name :
Shenghong
Model Number :
SH16-8-9-8
Certification :
CE/ISO9001
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Voltage :
380V, 50HZ
Power :
5.5kw
mixing pump quantity :
8g/s
Density :
70-80kg/m3
Description

Product Description

Windows & doors foam insulated shutters slat machine parameters:

Model (for windows): 37mm; 39mm; 42mm; 45mm (flat);55 mm

Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm

COMPLETE LINE LAYOUT

Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table

COMPONENT OF COMPLETE LINE:

①Double head un-coiler: 2 tons capacity manual one/unit

②Main frame of forming machine one/unit

④Straighten part one / unit

⑤ Pneumatic flying saw cutting machine one / unit

⑥ Simple roller stacker 6 meters one/unit

⑦ PLC system: One/unit

8. PU Foam injection machine: One/ set

Specification for Foam machine:

1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand

2. Mixing head with one spare is included

3. Mixing pump quantity: 8g/Second

4. Density: 70~80 Kg/m3

5. Mixing type: mechanical & automatic

6. Washing: Automatic

7. Tank volume: 50 KG / tank. Both Poly and ISO

8. Brand of Foam machine: GREAT WALL.
