Rib lath machine / Punching metal mesh production line for building loading-carrying system

Introduction

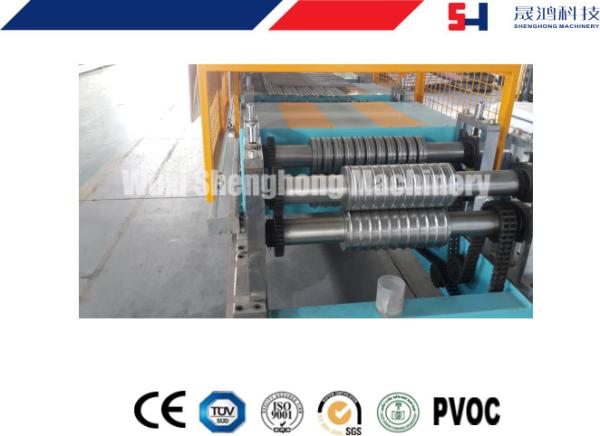

Self furring rib lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.

Technical Specification

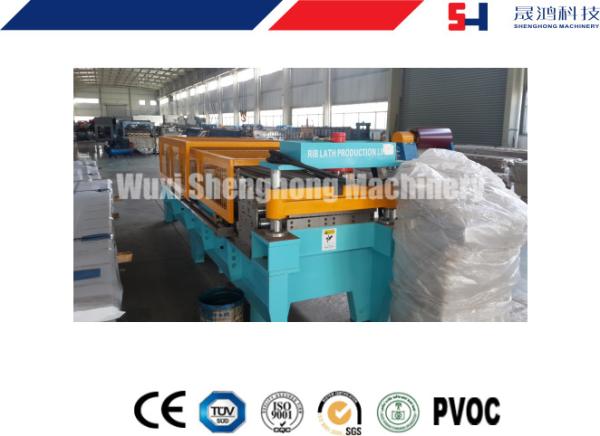

Layout: feeding trolley - uncoiler - expanded main machine - roll profiling machine - hydraulic rib lath shearing machine - hydraulic automatic rib lath collect - control cabinet
Material to produce rib lath: 0.3-0.6mm thickness and 420mm width galvanized sheet

Rib lath parameter:

Length: 2493mm, width: 686mm
Dimensions: strand width 1.5mm, plate thickness: 0.3-0.6mm, rib distance 98mm, LWD: 10mm, SWD: 5mm
1 set of simple de-coiler (inner dia.: min 400mm; loading weight: 1000kg)
1 set of punching machine
Punching speed: 180 times/min
Punching force: 250KN
Punching mould material: TC53
Overall size: 1325*990*2140mm
1 set of expanded main machine with shearer
Main motor power: 4 kw
Cutting motor: 3kw
mould material: GCR12
Speed: Max. 4m / minutes
Overall size: 5.8m*1m*1.5m
1 set of Feeding device
1 set of collecting Table (Max. Length: 3,000mm)
Occupy area: 12m*2m*2.5m

Main components brand

Control System:Siemens brand

(1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)

(2) Automatic length measurement:

(3) Automatic quantity measurement

(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

(5) Length inaccuracy can be amended easily.

(6) Control panel: Button-type switch and touch screen

(7) Unit of length: millimeter (switched on the control panel)
