Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm
Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm
Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm
Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm
Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm
Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm
Specifications
Brand Name :
Shenghong
Model Number :
SH16-8-9-9
Certification :
CE/ISO9001
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Voltage :
380V, 50HZ
Power :
5.5kw
forming speed :
6-15m/min
forming stpes :
16
drive type :
chain
Description
Main components of the line:
NO. name quantity
Main roll former
1 Un-coiler (2 tons ) MANUAL 2
2 Main roll former 2
3 Saw cutter 2
4 PLC control cabinet 2
5 Output table with rollers(6 meters) 2

Main parameter

1. Running material: Aluminum & Pre-painted Steel

2. Forming speed:6-15m/min

3. Forming steps: 16(as per drawing A)

Forming steps: 8(as per drawing B)

4. Thickness: 0.8mm-1mm

5.Roller material: GCr15, HRC 60.Quchend; roller diameter φ120

6. Material of shaft: #45 steel, China standard

7. Drive system: chains Transmission system,

8. Main Motor Power: 5.5 KW

9. Cutting system: Flying saw cutting (3KW), cut off after forming.

10. PLC Control system: TOUCH SCREEN: DELTA

PLC: DELTA

INVERTER: DELTA

ENCODER: OMRON

Low components of electricity: Schneider Germany

11. Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place

12. Un-coiler: manual un-coiler: 2 tons capacity.

13. Drawings of profile

14. Dimension of Profile A: 6500*900*900MM Weight: 4Tons

Dimension of Profile B: 3000*900*900MM Weight: 2.5Tons

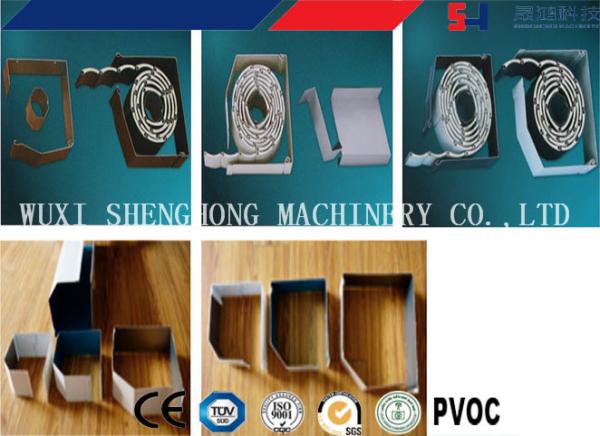

15. The picture of profiles:

Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm

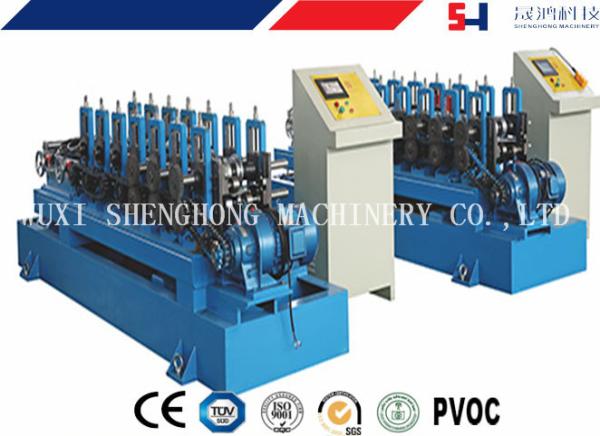

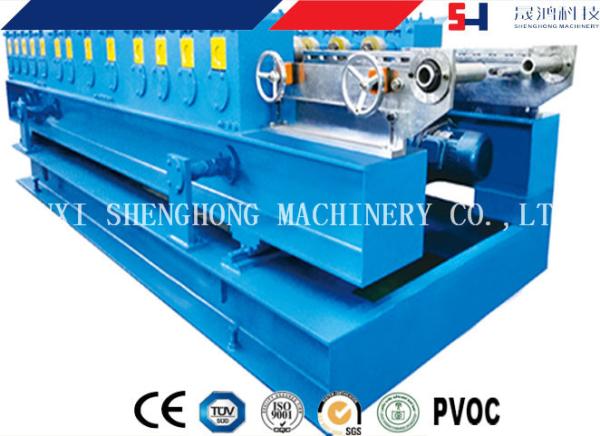

16. Main consist of the machine

Un-coiler ----- Feeding device ----- PLC control -----Roll forming ----- Pneumatic flying saw device--- Run out table

Saw Cutter PLC Control Cold Roll Forming Equipment For Shutters Box Series 0.8mm - 1mm
