Specifications
Brand Name :
DINGBO
Model Number :
DBRF
Certification :
CE ISO SGS
Place of Origin :
shanghai, China
MOQ :
1 Set
Price :
negotiation
Supply Ability :
20sets/month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Payment Terms :
L/C, T/T, Western Union
Voltage :
380V 50Hz 3Phases
Weight :
5-15T
Thickness :
0.3-0.8mm
Roller material :
45# Forged Steel
Usage :
Roof Profile
Condition :
New
Description

Roof Panel roll forming Machine

Product Descriptions

1.)Roof Panel roll forming Machine is a metal panel roll forming machine for continuous rolling and cold-forming on steel sheet.

2.)Through decoiling, continuous rolling and cold-forming, the coil sheets are automatically cut to the size and specification required. The stacking of finished panel can be also done automatically.

3.)The Joint-hidden Roofing Forming Machine adopts PLC control, AC frequency and speed adjusting technology to realize continuous work automatically. The roll former of self-locked is energy-saving and roll forming machinery according to customers' requirements.

Version to design

Automatic Roll Forming Roof Panel Roll Forming Machine , roof panel making machine

Working Flow

Uncoiler —Feeding —Roll forming —Hydraulic cutting —Output table

Automatic Roll Forming Roof Panel Roll Forming Machine , roof panel making machine

Product Parameters

Condition New
Production Capacity 10-15m/min
Forming Speed Max 12m/min
Thickness of feeding material 0.3-0.8mm

Roller Stations

 7-15stations
Roller Material 45#steel forge
Cutting blade material Cr 12mould steel
Material of shaft 45#steel
Diameter of shaft 65-95mm
Motor Power 4-7.5kw(Depend on final design)
Hydraulic Power 3kw(Depend on final design)
Main forming machine body 300-400mm H steel
Voltage 380V 50Hz 3Phases
Length Tolerance +-1.5
Drive Way Chain transmission
Chain Size 0.6-2inch

Product Parameters

No. Name Qty
1 Decoiler 1
2 Main roll forming machine 1
3 PLC Control box 1
4 Hydraulic station 1
5 Output table 2

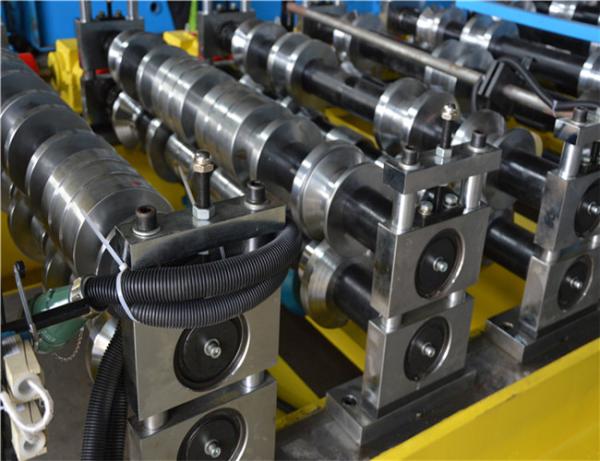

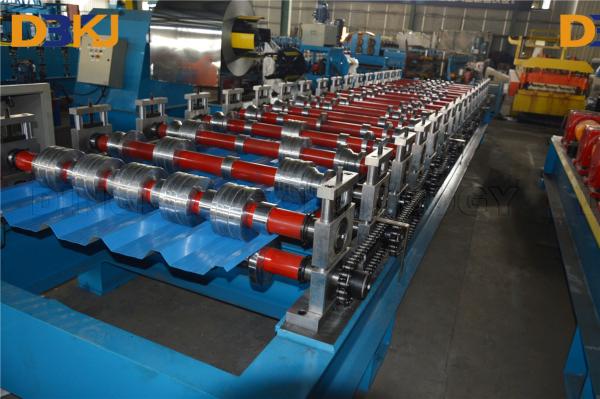

Machine Pictures

Automatic Roll Forming Roof Panel Roll Forming Machine , roof panel making machine

Automatic Roll Forming Roof Panel Roll Forming Machine , roof panel making machine

Application Pictures

a.There are two types of roof systems: sloped roofs and flat roofs.The slope roof system dates back to ancient times. From Chinese historical records to the end of the Qing dynasty, almost all houses had sloping roofs.

b.This is also true abroad, but it has more features and diversity, such as various spires, domes and so on.The flat roof system actually evolved from the ancient castle structure. With the development of modern concrete components, it has been widely used in many high-rise buildings.Roof tiles are mainly used for sloping roofs.

c.Tile is the most important roofing material.It not only plays the role of wind and rain shelter, but also has an important decorative role.As modern new material appears ceaselessly, other function of ceramic tile also appears ceaselessly.

Automatic Roll Forming Roof Panel Roll Forming Machine , roof panel making machine

Automatic Roll Forming Roof Panel Roll Forming Machine , roof panel making machine
