Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine
Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine
Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine
Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine
Specifications
Brand Name :
Shenghong
Model Number :
SHR
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
Within 45 working days after receiving the deposit
Packaging Details :
Standard wood packaging
Type :
guardrail roll forming machine
Production Capacity :
6-10m/min
Voltage :
220V/380V
Dimension(L*W*H) :
9800*1600*1500 mm
Warranty :
13 months
Power :
50kw
Contorl system :
PLC control
Transmission :
By gear box
Description

Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine

W beam highway guardrail roll forming machine is especially used for producing the guardrails of road. The whole line adopts PLC controlling system and AV inverter speed adjustment, it can run full automatically. It`s the essential equipment in the steel structure industry and road transportation industry.

Product Description

1 Rolling Material:T:3-4mm,Q235AGalvanized Coil
2 Rolling Speed:10-15M/min
3 Under Frame:500H-beam
4 Sidewall Thickness:25mm
5 Roller Station:19Groups
6 Roller Materail: GCr15Bearing Steel Treatment HRC58-62
7 Shaft Materail: High grade 45# forging steel with cylindrical grinding
8

Shaft Diameter: ⊄ 95mm
9 Main Motor Power: 37kW
10 Tranmission Method:Universal joint transmission gear box
11 Leveling Motor Power: 5.5kW
12 Hydraulic Motor Power: 15kW,Pressure:20Mpa
13

Punching&Cutting Method: adopt hydraulic driving,flat sheet pre-punch,

post to cut after roll forming.
14 Punching&Cutting Mold:Cr12quenching treatment,HRC58-60
15

Electrical:whole set adopts industrial computer PLC frequency changing

controlled for length to cut tolerance≤1.5mm
16 Whole unit size(mm):9800x1600x1500

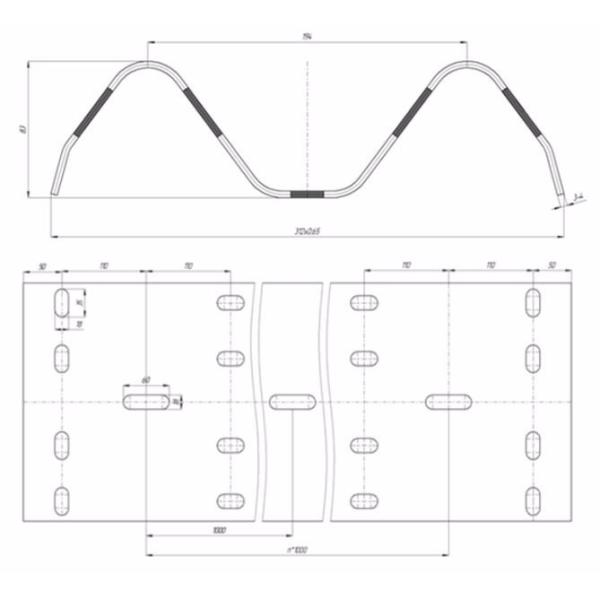

Profile as flowing:

Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine

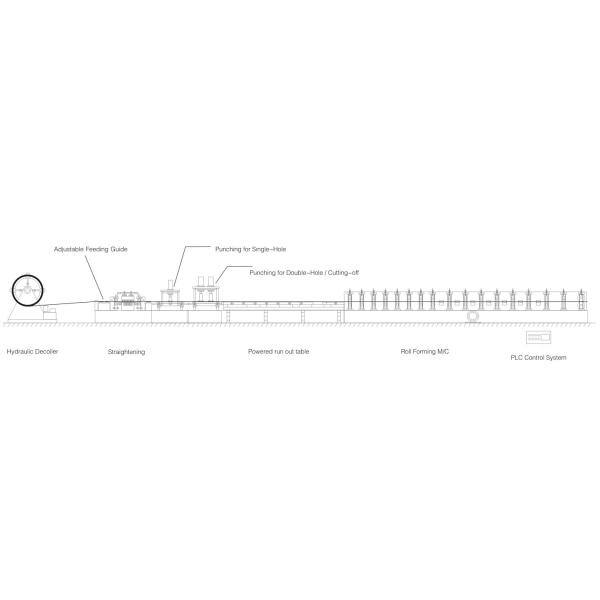

Working Flow:

Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine

Charing—Feeding inlet(put the strip into the first entrance roller correctly)--Strip flattening—panel punching—forming rollers—Hydraulic cutting(roller forming by main machine)--out table(Finished products out of the machine by breakst)

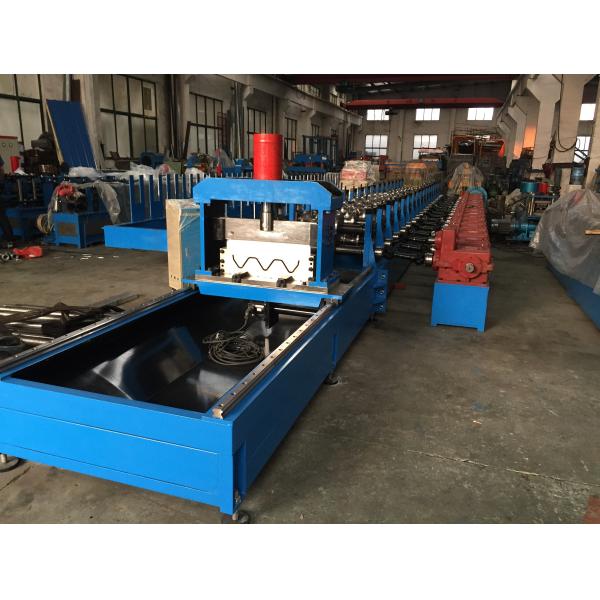

Machine Photo:

Standard Size Highway Roadside W Beam Guardrail Roll Forming Machine
