Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
Specifications
Brand Name :
Dingbo
Model Number :
DBCZ
Certification :
CE, ISO, SGS
Place of Origin :
Jiangsu, Dingbo
MOQ :
1 set
Price :
Negatiable
Payment Terms :
20 sets per month
Delivery Time :
within 25 days after receiving the deposit
Packaging Details :
Export package
Product name :
CZ Steel Purlin Profile Making Cold Roll Forming Machine
Usage :
frame purlin
Material :
Steel coil
Voltage :
350V/415V/450V
Warranty :
12 months
Production capacity :
10-25 m/min
Description

Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine

Product Descriptions

The CZ Purlin Roll Forming Machine is used to produce both C and Z purline on one machine

Adjust from one shape to the other, one operator only needs 10 minutes, and the size adjustment can be fully automatic

Ø C & Z purlin interchange: fully automatic, within 1 minute.

Ø Purlin size change: fully automatic, within 1 minute.

Ø More optional systems: pre-shearer, servo main motor, flange punching, etc.

Ø Machine surface adopts powder coating, coating before assembly.

Ø Delivery capacity: 180-220 sets each year, the biggest and most professional CZ purlin machine manufacturer in China.

Profile drawing to design

Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine

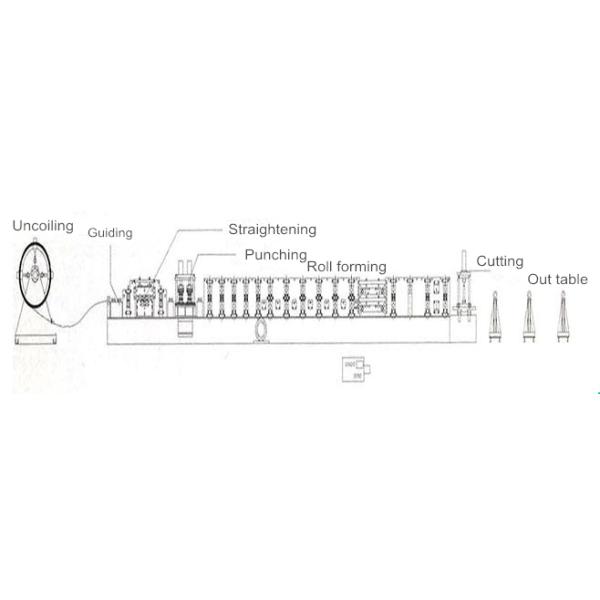

Working Flow

Manual uncoiler – Guiding&Straightening -- Punching -- Roll forming -- Hydraulic cutting -- Output table

Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine

Techincal Parameter

Item parameters
Coil Thickness (mm) 1.5-3
Max Speed (m/min) 30
Roll Stand 18
Main Motor (KW) Hydraulic Motor, 22
Main Shaft (mm) 100/75/60
Cutting Way Hydraulic cutting
Cutter Material Cr12 Mov
Punching 3 Sets
Control System PLC
Size Change PLC control / Press button
C Z Interchange PLC control / Reverse roller

Main Components

No. Name Qty
1 Manual uncoiler 1
2 Punching machine 1
2 Main roll forming machine 1
3 PLC Control box 1
4 Hydraulic pump station 1
5 Output table 2

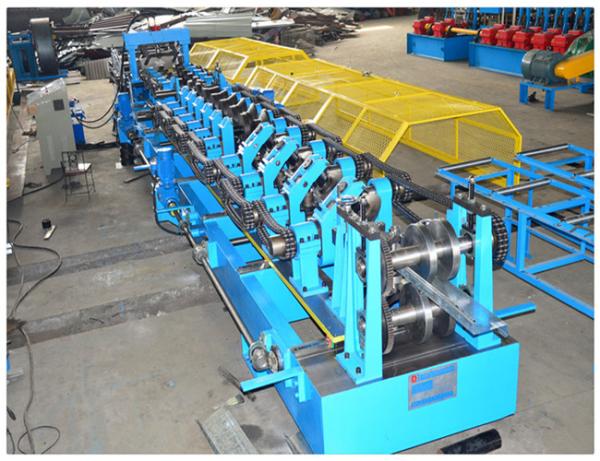

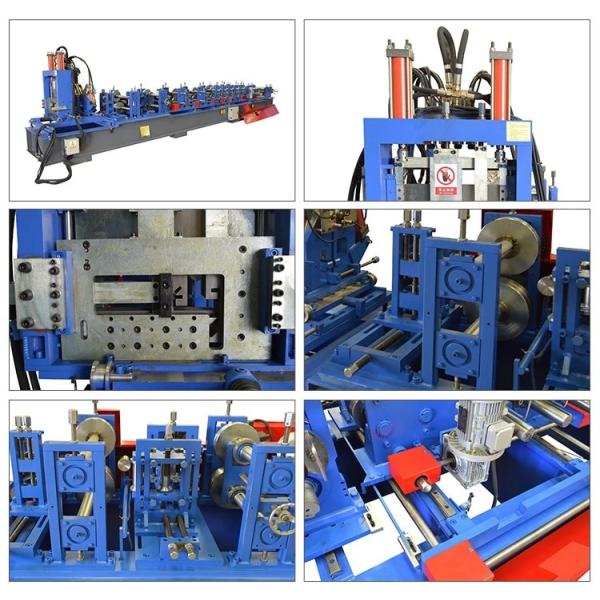

Machine picture

Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine

Packaging and Shipping

Easy Change CZ Steel Purlin Profile Making Cold Roll Forming Machine
