V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
Specifications
Brand Name :
Shenghong
Model Number :
SH17-11-29-03
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
winthin 45 days after receiving the deposit
Packaging Details :
Export package
Production Capacity :
15-20m/min
Power :
4+4KW
Voltage :
380V 50Hz 3phases
Use :
Ceiling
Description

V Profile corner bead Purlin Roll Forming Machine wall angle Galvanize Rolling Machine

Product Description

Machine Description Quantity Delivery time Container Type

Price/ USD

(FOB TIANJIN)
Galvanize V Profile Rolling Machine 1 SET

45 working days

after receiving deposit

 One 20GP 7900---19900

Product Description

Machine Description Quantity Delivery time Container Type

Price/ USD

(FOB TIANJIN)
Galvanize V Profile Rolling Machine 1 SET

45 working days

after receiving deposit

 One 20GP 7900---19900

Product name Galvanize V Profile Rolling Machine
NO. Items Parameters Remark
1

Suitable

Material

 Type GI/PPGI/AL
Thickness 0.40-0.80mm
2

Product

Specifications

 Length Any length
Length Tolerance ±1mm
3 Working Speed 35m/min Standard machine
4 Control System Mitsubishi/Siemens PLC& transducer Custom
5 Total Power 6KW
6 Total Weight About 3T Up to final design

Components of Galvanize V Profile Rolling Machine:

No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1

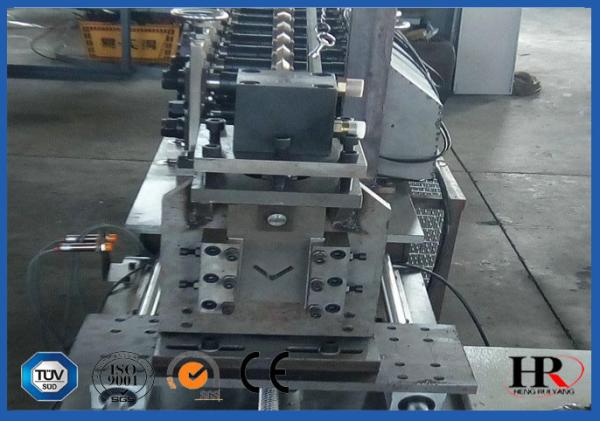

5 Post cut set 1
6 Electric motor set 1
7 Output table set 1

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity Uncoiling width Inner diameter
1.5T 300mm 450-550mm

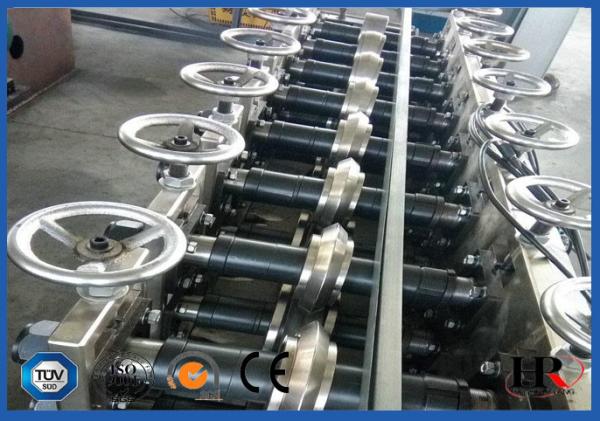

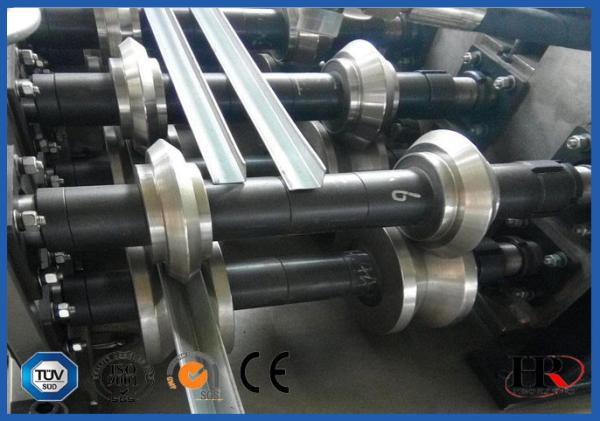

Forming device of Galvanize V Profile Rolling Machine

No. Main parameter of Galvanize V Profile Rolling Machine
1 Length of the main part 3000*800*1400mm
2 Weight of main part About 3 t
3 Voltage 380V/50HZ3Phase (as customer's request)
4 Roller fixer Guide column
5 Frame

Middle plate welded

Memorial arch frame type
6 Frame thickness 25mm
7 Drive mode Gear or chain
8 Material of rollers 45# steel with tempering
9 Material of shafts 45# steel with tempering
10 Diameter of shafts φ40mm
11 Number of rollers 10 rollers
14 Main power 3kw (Cycloidal planetary gear speed reducer)

V Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KWV Profile Corner bead Purlin Roll Forming Machine For Wall Angle 6KW
