Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min
Specifications
Brand Name :
Shenghong
Model Number :
SH17-12-11-03
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
within 45 days after receiving the deposit
Packaging Details :
Export package
Power :
15kw
Voltage :
380V 50Hz 3phases
Forming speed :
10-18m/min
Material of shafts :
400# I-beam
Description

Galvanized steel Heavy Duty Cable Tray Roll Forming Machine10-18m/min

Product Description

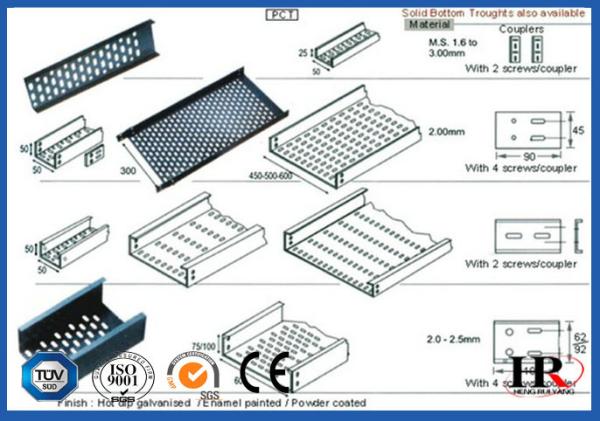

Application
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min

Working flow

Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min

specifications

de-coiler

Parameter: width of material: 225-1020mm thickness: 1-2mm;
Inner diameter of coil: 508mm;inner expansion range: 480-520 mm;
The maximal of Diameter: 1500mm; The Maximal of loading: ≤5T
Motor power: 5.5kw frequency change control
Press material type: pneumatic press material
Feeding speed: 0-15m/min, adjustable
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min

Leveling machine of Heavy Duty Cable Tray Roll Forming Machine
A: working roller: nine rollers type leveling machine
B: Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal.

feeding machine

A: function: material feeding

b. Feature: Uses the servo motor-driven .Multistage type feeding: May input 10 group of different feeding lengths. The liquid crystal touching screen demonstrated is advantageous for the change, establishes various technical parameters. The auto-induction start system and the punch press linkage (control punch press start).

Punching press

Model of punching press: JF21-120B

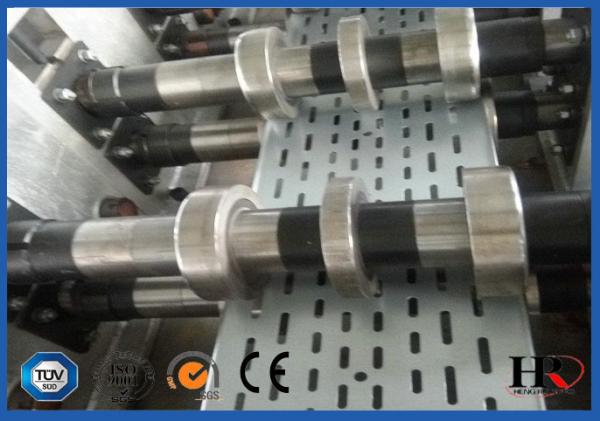

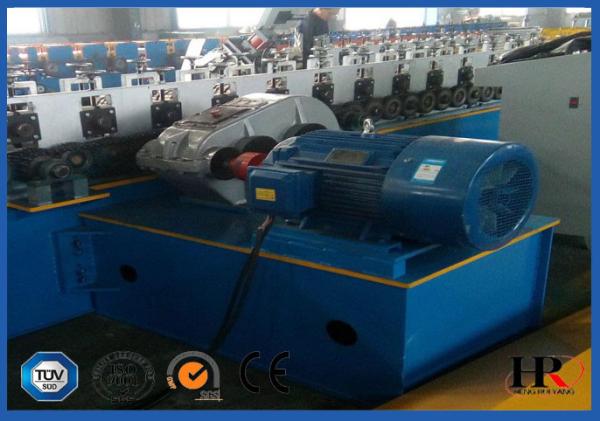

Roll forming part
Forming station: 14sets
Forming variety: bridge frame
The diameter of the roller axis: 85mm
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min

Hydraulic cutting

Cutting type: hydraulic cutting
Blade type: close type die cavity cutter
Hydraulic power:5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 9 (depend on customer request)
Galvanized steel Heavy Duty Cable Tray Roll Forming Machine High speed 10-18m/min

Run-out table
Structure: roller type with no power
Electric control system
A: Full line is controlled by PLC control system,touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc..
B: Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency was stopped ensure the safe of the equipment and operator.
