Specifications
Brand Name :
Shenghong
Model Number :
SH18-01-03-03
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
Within 30 days after receiving the deposit
Packaging Details :
Export package
Production Capacity :
15-20m/min
Power :
5.5KW+4KW
Voltage :
380V 50Hz 3phases
Warranty :
1 Year
coil thickness :
0.6-0.8mm
Main frame :
300 H steel
Description

Light Frame Steel sheet welding Villa House Keel Roll Forming Machine 15-20m/min

Product Description
Steel Sheet Welding Villa Keel Making Machine High Speed 15-20m/min
Specification for Light Frame Steel Villa House Keel Roll Forming Machine
Coil Material
type
Colored Steel Plate, Galvanized Board, Aluminum Plate
width
100-300mm (according to customer requirements and profile drawing)
thickness
0.6-0.8mm

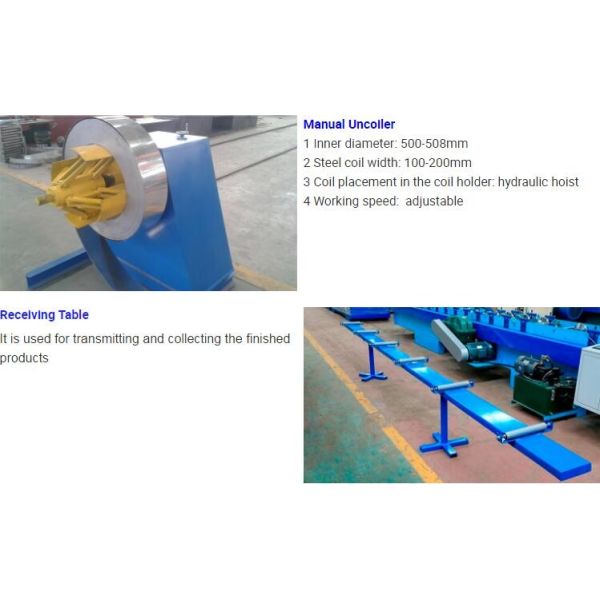

Manual Decoiler
inside diameter
450-508mm
coil load
5T

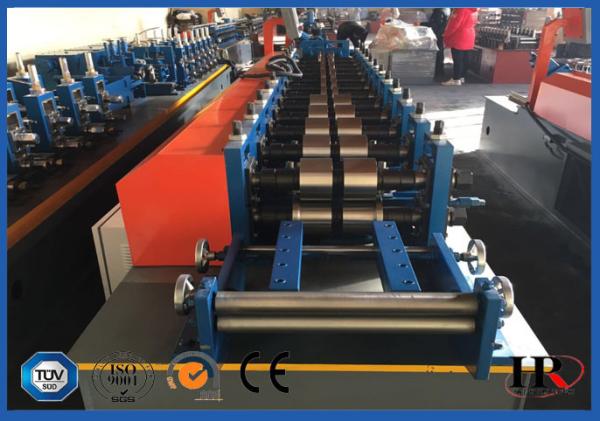

Forming Device
shaft material
45#steel-high quality steel, diameter 50 mm
roller material
45# steel with chrome coating
roller station
12 (depends on final design)
Main frame
300 H steel
chain transport
1”
board thickness
16mm

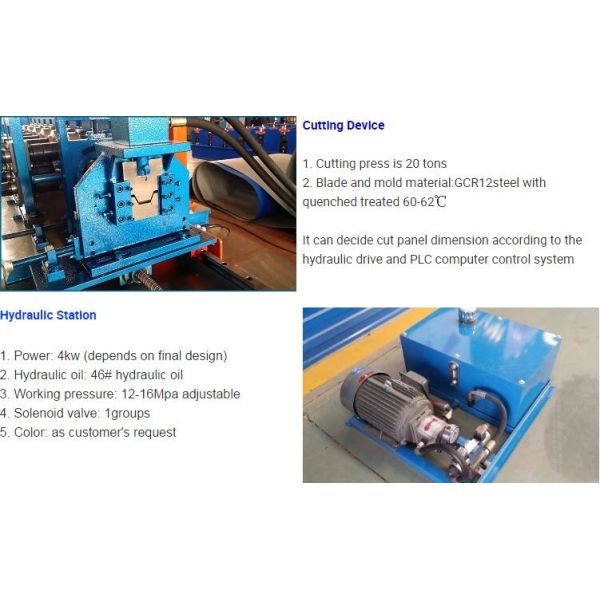

Cutting System
cutting material
Gcr12 with quench treatment
hardness
HRC55-58
tolerance
+-1.5mm
Weight
around 2.5T(depends on final design)
Dimension
5000mm*800mm*1300mm(depends on final design)

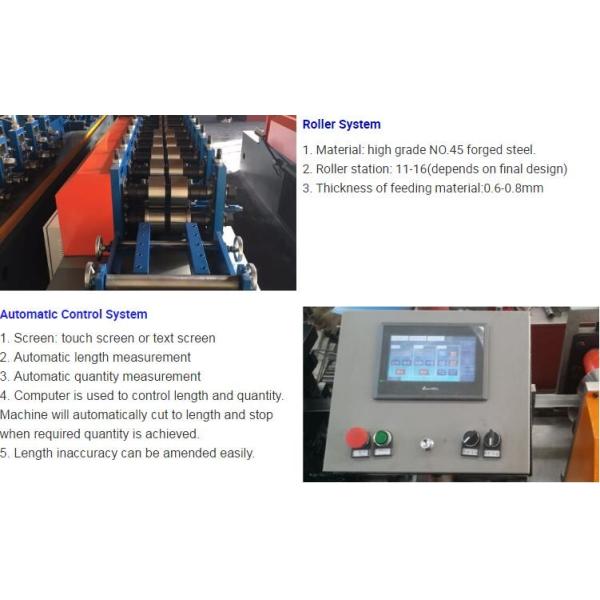

Control System
PLC
Total Power
5.5+4kw (depends on final design)
Voltage
380V, 50HZ, 3 phascs or as your need
Productivity
15-20m/min(depends on final design)

Steel Sheet Welding Villa Keel Making Machine High Speed 15-20m/min

Steel Sheet Welding Villa Keel Making Machine High Speed 15-20m/min
Detailed Images
Steel Sheet Welding Villa Keel Making Machine High Speed 15-20m/min
Steel Sheet Welding Villa Keel Making Machine High Speed 15-20m/min

Steel Sheet Welding Villa Keel Making Machine High Speed 15-20m/min

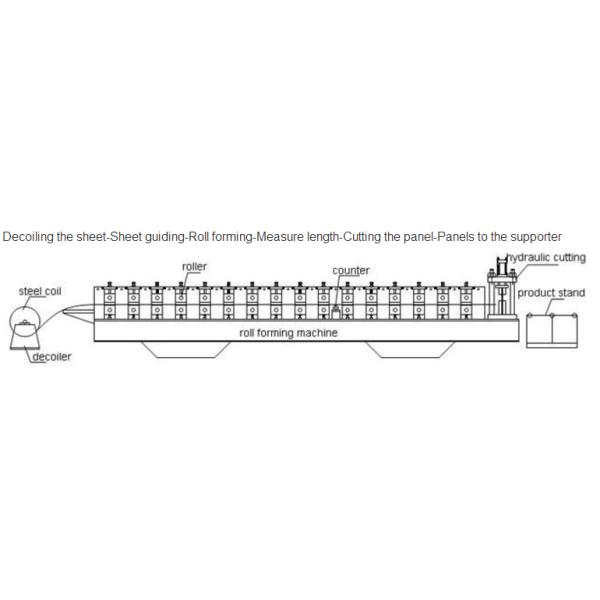

Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set
Steel Sheet Welding Villa Keel Making Machine High Speed 15-20m/min
Packing & Delivery
Packing Details:
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Delivery Time:
within 25 days after receipt of buyer's deposit
