Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase
Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase
Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase
Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase
Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase
Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase
Specifications
Brand Name :
Shenghong
Model Number :
SH18-01-03-02
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
Within 45 days after receiving the deposit
Packaging Details :
Export package
Production Capacity :
13-14m/min
Voltage :
380V 50Hz 3phases
Power :
7.5kw
Processing precision :
Automatic
Description

Automatic Light Keel frame Villa Steel House Frame Roll Forming Machine

Product Description

steel profile roll forming machine

iterm name lead time package Qty price/USD FOB Shanghai
light gauge steel framing machine 40 days 40GP 1 10000-55000

Processing Flow of light steel house frame forming machine price of steel frame machine

Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase

Technique parameters of steel profile roll forming machine

processing material steel strip
material thickness 0.75-1.4mm
main motor power 5.5kw
pump power 7.5kw
shaft diameter 50mm
roller stations 12 stands
roller material GCr15 CNC machining heat treatment HRC58-60 then processed by CNC lathe plating finally
shaft material 40Cr CNC machining quenching and tempering HRC28-32 then processed by CNC lathe plating and polishing finally
cutting blade mould cutting, automatically cut to any length
transmission type gears
control system

One Lenovo laptop and a control box inside of based frames of the machine

Special designed to match with the designing software Vertext
power supply AC380v/50Hz or as per your request

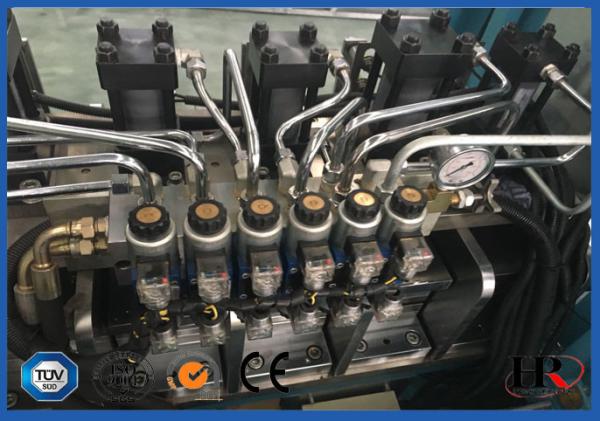

Real Photos on steel profile roll forming machine

Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 PhaseAutomatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase

Automatic Light Keel frame Roll Forming Machine 380V 50Hz 3 Phase
