Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness
Specifications
Brand Name :
Shenghong
Model Number :
SJG160215-06
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS / MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Thickness :
1 mm
Profiling section :
As per customer's requirement
Roller material :
Gr12
Shaft material :
40Cr
Rolling station wall material :
QT470
Shearing blade material :
Cr12
Roll forming speed :
12 m / min
Transmission :
gear
Description

Custom Cable Tray Roll Forming Machine Precision 1 mm Thickness

General Description

Cable tray forming machine is also called cable tray cable ladder machine. Cable trays produced by cable tray roll forming machine are widely used in construction fields because of high robustness and precision. As we have rich and special experience, we can customize cable tray roll forming machines or cable tray roll forming production lines according to customers' profile drawings and specifications.

Features

1. We adopt servo feeding technology to make sure that the punching accuracy can reach more or less than 0.15 mm so that the punching precision can be improved.
2. Considering sheet distortion caused by rear cutting, cable tray roll forming machine made by shenghong is designed with front cutting device. The front-cutting sheet can be fed into the roll former correctly because of the existence of a proper guiding device.
3. The punching device structure is flexible enough to replace punch moulds. At the same time, in order to protect the operator during replacement, necessary safety facilities are used.
4. Our cable tray roll forming machine can be customized according to the demands of customers.

Technical Specifications for Cable Tray Roll Forming Machine

Raw material Item Parameter Remark
Material type cold rolled steel/galvanized sheet Special material shall be tested before finalization
Thickness 1mm Big range of thickness may cause forming dimension tolerance
Yield strength Q235 -
Production Profiling section As per customer's requirement The basic element for quotation
Machine material Roller material Gr12 -
Shaft material 40Cr -
Rolling station wall material QT470 -
Shearing blade material Cr12 -
Line speed Roll forming speed 12m/min -
Punching Punch Depend on hole size Interchangeable die
Transmission Gear - -
Straightening Roller straightening - -
Shearing Pre-cut - Precision±1.5mm/6000mm
Run-out table Simple table 2 meters at each As per customer's requirement
Hydraulic system Valve and pump - Brand can be optional
Controller system PLC - Mitsubishi or same level
Coil car Coil car 3t/5t option

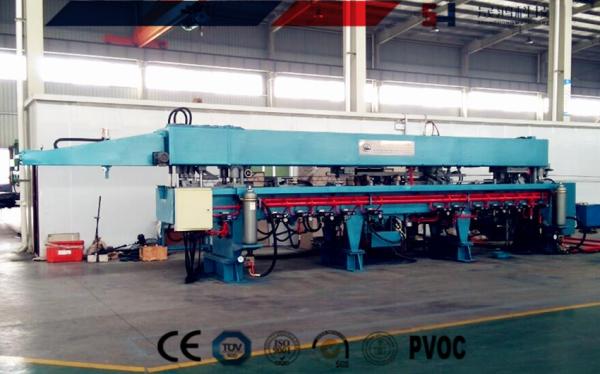

Machinery Photos

Workshop Show
